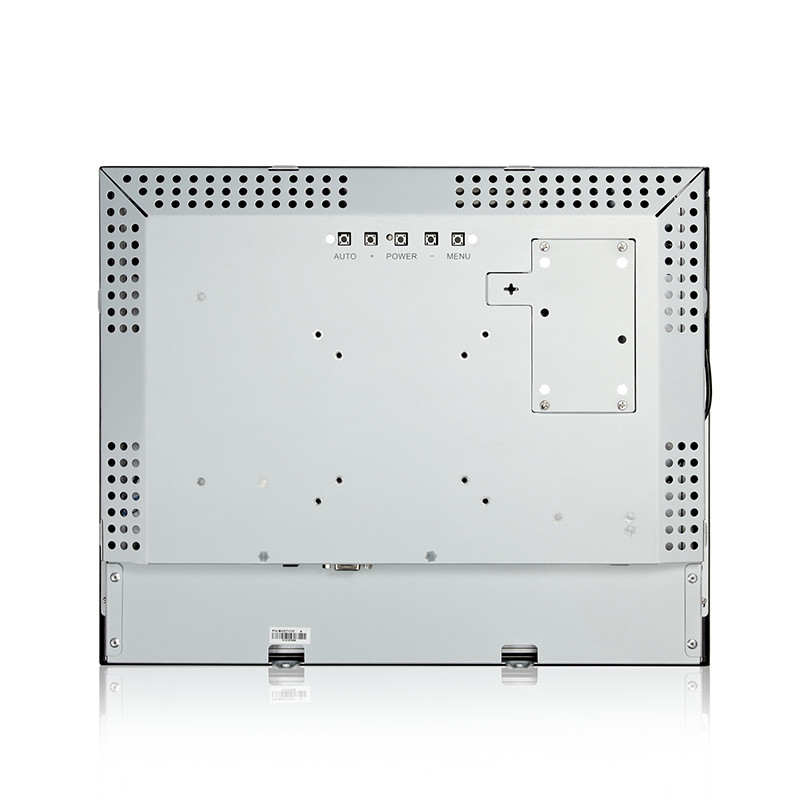

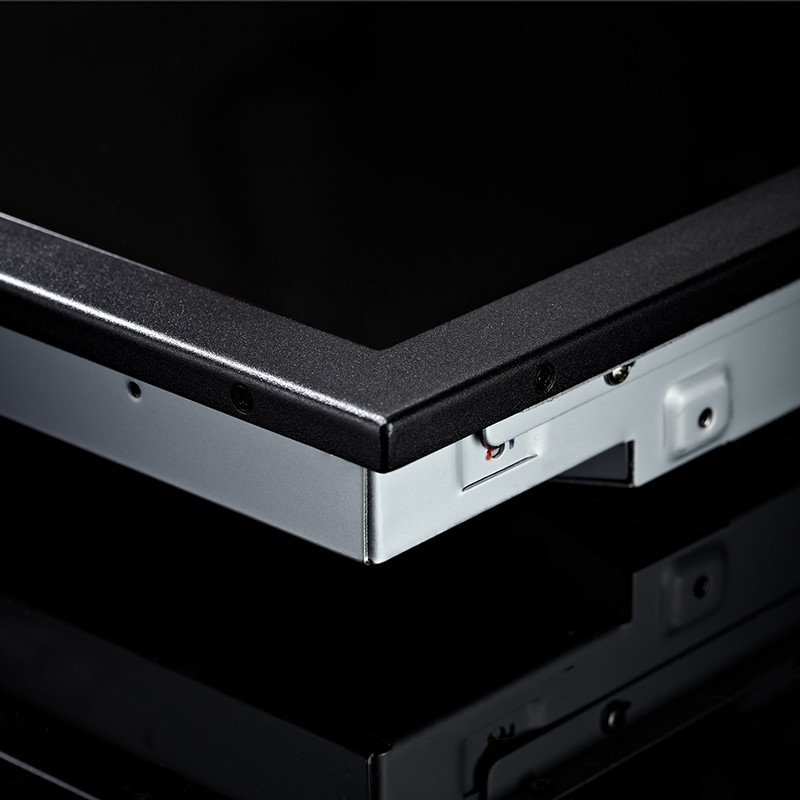

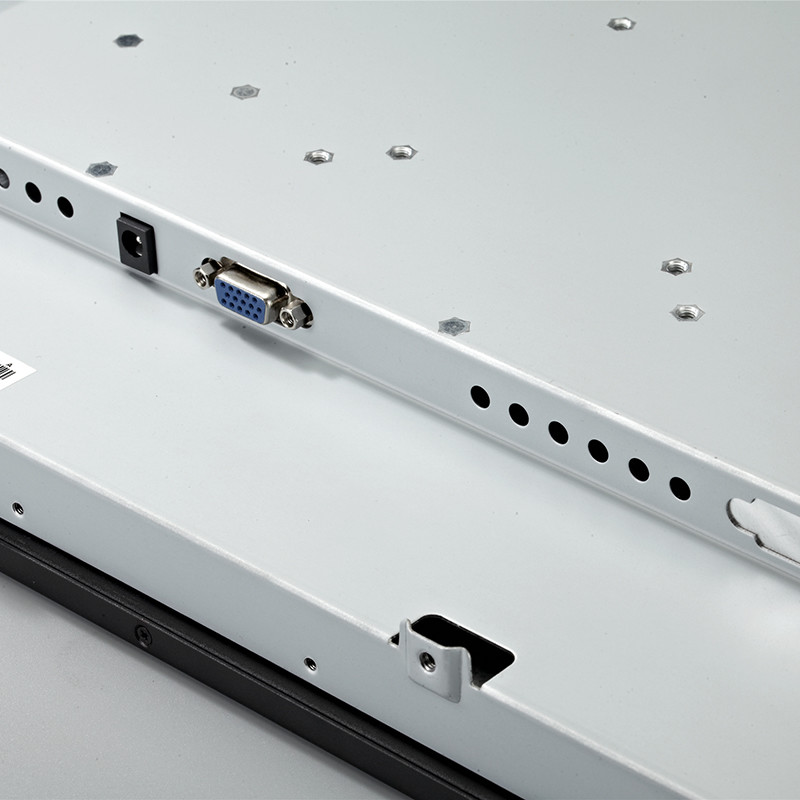

Anti Glare 17 Inch PCAP Kiosk Touch Monitor For Smart Lockers

Anti Glare 17 Inch PCAP Kiosk Touch Monitor For Smart Lockers
Anti Glare 17 Inch PCAP Kiosk Touch Monitor For Smart Lockers Anti Glare 17 Inch PCAP Kiosk Touch Monitor For Smart Lockers Anti Glare 17 Inch PCAP Kiosk Touch Monitor For Smart Lockers Anti Glare 17 Inch PCAP Kiosk Touch Monitor For Smart Lockers Anti Glare 17 Inch PCAP Kiosk Touch Monitor For Smart Lockers
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-0170U-CA4P (KOT-170P-016)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suggested Resolution1280*1024 @ 60HzDisplay Type5:4 Ratio 17" TFT-LCD
Active Area337.9*270.3(mm)Support Colors16.7
Contrast Ratio (Typ.)1000:1Response Time5ms
Viewing AngleHorizontal(left/right)：85°/85°Video InputVGA/DVI
Frequency (H/V)37.9～80KHz / 60～75HzProduct NamePCAP Touch Monitor
WarrantyOne Year
High Light

Anti Glare Kiosk Touch Monitor

,

17 Inch Kiosk Touch Monitor

,

Smart Lockers PCAP Touch Monitor

Leave a Message
Product Description


17 Inch PCAP Touch Monitor Anti-Glare For Kiosks Smart Lockers


PCAP Touch Monitor Description


With PCAP multi touch screen, high sensitive and fast response

1280*1024 high resolution, high contrast ratio with high-quality image

Anti-glare, anti-vandal and IP65 surface waterproof PCAP touch monitor

VGA & DVI interfaces,USB for touch

Multiple mounting options include VESA mount, horizontal and vertical brackets mount

Operation system: XP, WIN7, WIN8, WIN10, Linux, Android

Other sizes can be offered (7"- 43")





PCAP Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0170U-CA4P (P/N:KOT-170P-016)

 Series

 OT

 Display Type

5:4 Ratio 17" TFT-LCD

 Active Area

337.9*270.3(mm)

 Monitor Dimensions (W*H*D)

378.9*313.3*47.3(mm)

 Suggested Resolution

1280*1024 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

500cd/㎡

With Touch Monitor

410cd/㎡

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

4.1Kg(1pcs)/9.85Kg(2 pcs in one   package)

 Package dimensions

466*185*403(mm)(2 pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power:   ≤20W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,   Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC,   CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

17" Capacitive   touch screens

Touch   input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥83%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

340.92*273.34(mm)

Thickness

3.9±0.3(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%

 NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




 Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
