Privacy Films 15 Inch PCAP Touch Screen Monitor IP65 Front Panel Waterproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contrast Ratio (Typ.) | 1000:1(Typ.)/700:1(Min.) | Suggested Resolution | 1024*768 @ 60Hz |
|---|---|---|---|
| Video Input | VGA/DVI | Support Colors | 16.7M |
| Response Time | 30s | Thickness | 3.9±0.2(mm) |
| Touch Test | ≥50,000,000 Times | Product Name | PCAP Touch Monitor |
| Brightness | 350cd/㎡ | ||
| High Light | IP65 PCAP Touch Screen Monitor,15 Inch PCAP Touch Screen Monitor,Privacy Films PCAP Touch Monitor | ||
Product Description

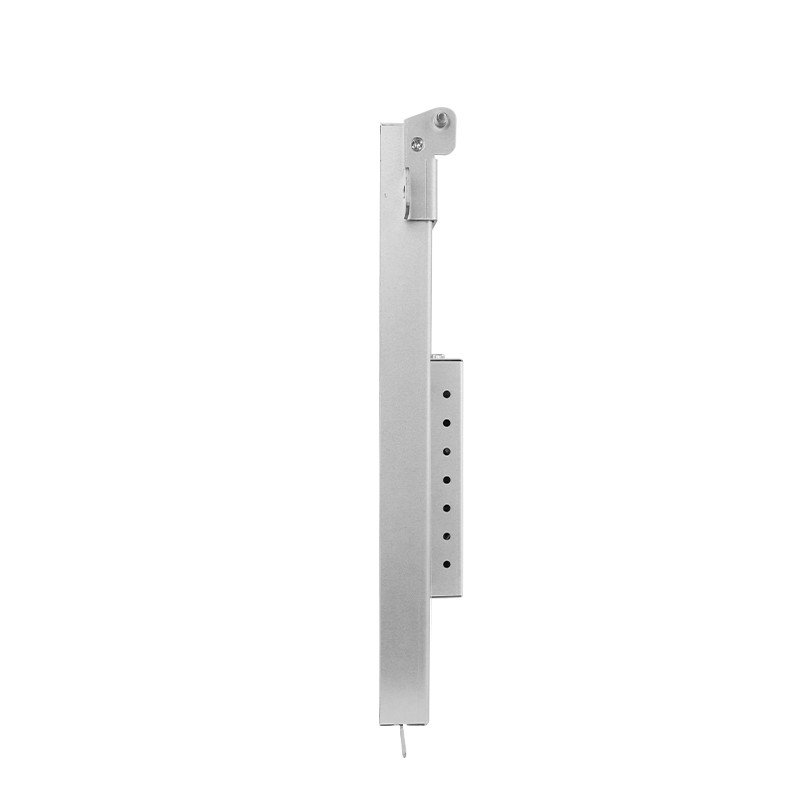

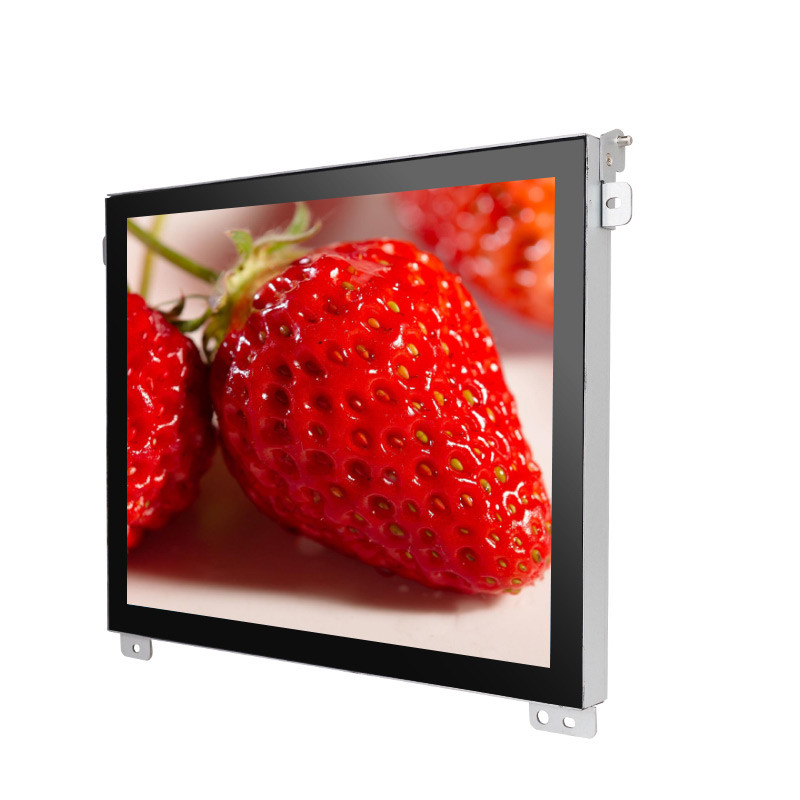

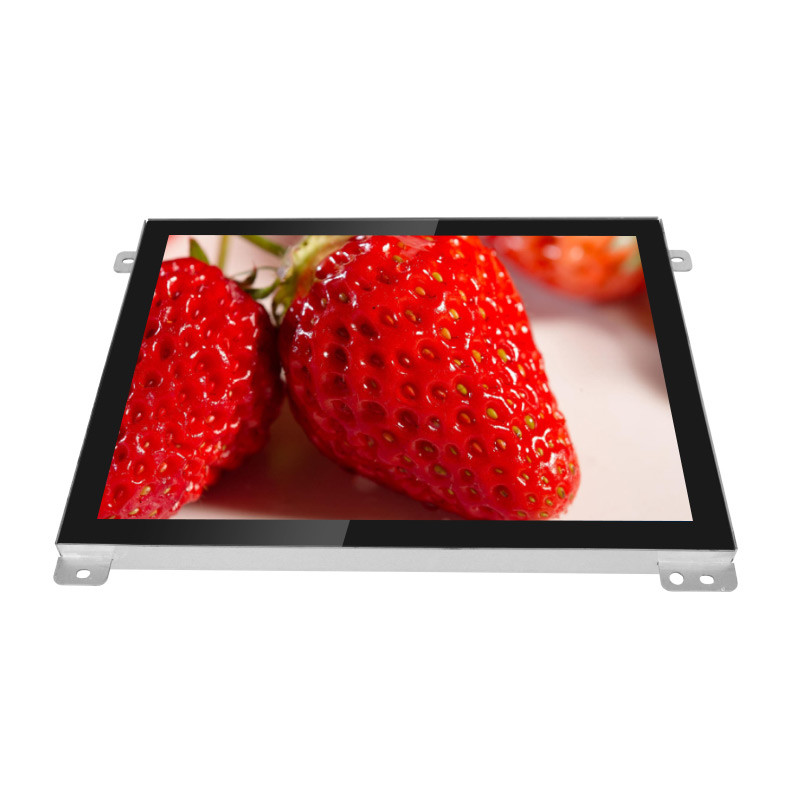

Privacy Films 15 Inch PCAP Touch Screen Monitors IP65 Front Panel Waterproof
PCAP Touch Monitor Description
Dustproof and waterproof PCAP touch monitors with privacy films are especially need for kiosks from self-service and gaming to industrial automation and healthcare. Using capacitive touch screen with 4mm thickness glass, it is anti-vandal and supports with 10 points simultaneous touch. This device supports operating systems XP, WIN7, WIN8, WIN10, Linux, and Android for easy integration to your machine.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150UA-CA6PHA（P/N：KOT-150P-015-01） | |
Series | ||
Display Type | 4:3 Ratio 15" TFT-LCD | |
Active Area | 304.128×228.096(mm) | |
Monitor Dimensions (W*H*D) | 369.7*292.5*48.1(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 350cd/m2(Typ.)/315cd/㎡(Min.) |
With Touch Monitor and peep-proof protection film | 178.5cd/m2(Typ.)/161cd/㎡(Min.) | |
Response Time (Typ.) | 30ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 89°/89°(Typ.)/85°/85°(Min.) |
Vertical(up/down) | 89°/89°(Typ.)/85°/85°(Min.) | |
Contrast Ratio (Typ.) | 1000:1(Typ.)/700:1(Min.) | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% The DC inner diameter of power adapter:2.1mm | |
Environment | Operating Temp. | -10～50°C |
Operating RH | 10%～90% | |
Storage Temp. | -20～70°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Weight（N.W/G.W） | 3.0Kg(1pcs)/7.2Kg(2pcs in one package) | |
Package dimensions | 445*200*395(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
Mount Interface | Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, CE, CB, RoHS | ||
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen
② The support system is adjusted according the specific system and version.
Touch Screen | |
Touch Type | 15" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Resolution ratio | 16384*9600 |
Hardness | 7H |
Light Transmittance | ≥85% |
Anti-vandal test | 500g steel ball drop from 1.3m high test |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 304*228(mm) |
Thickness | 3.9±0.2(mm) |
Touch Test | 50,000,000 times |
Input Voltage | 5V |
Peep-proof protection film | |
Type | peep-proof protection film |
The angle range of Anti-peep | Horizontal(left/right): 35°±5° |
Thickness | 0.58±0.05(mm) |
Light Transmittance | ≥60%±5% |
Applications
Our PCAP Touch Monitors are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. what package you provide for PCAP touch monitors?
Our package usually is carton.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay. ( L/C can be negotiable.)
