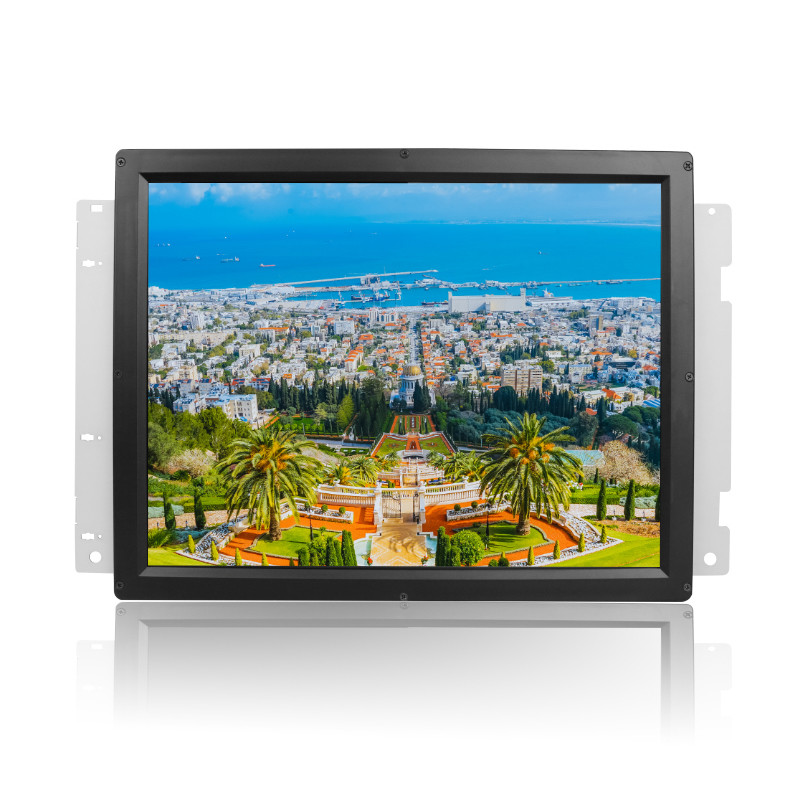

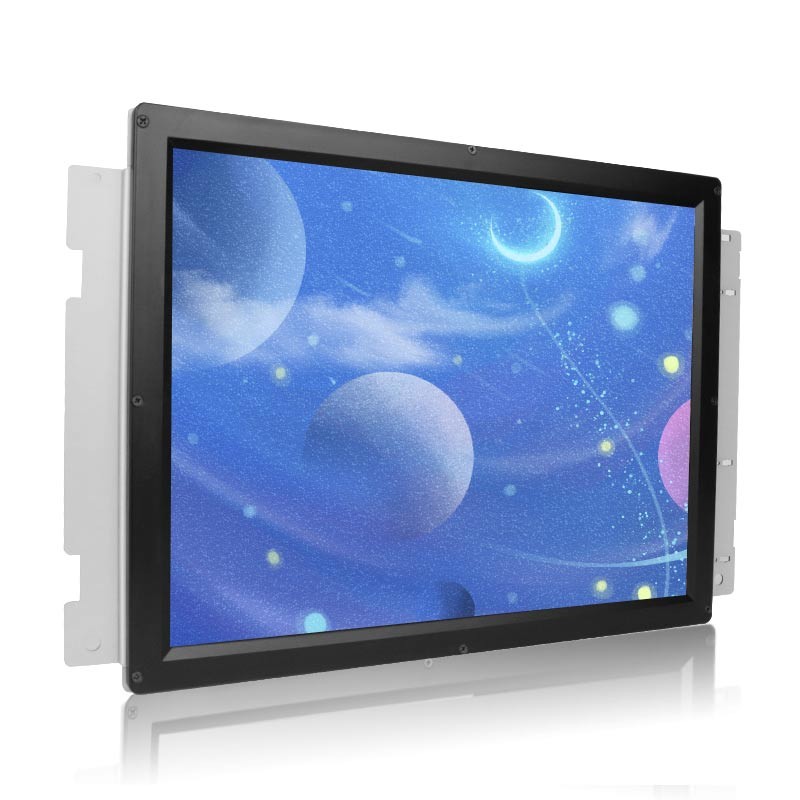

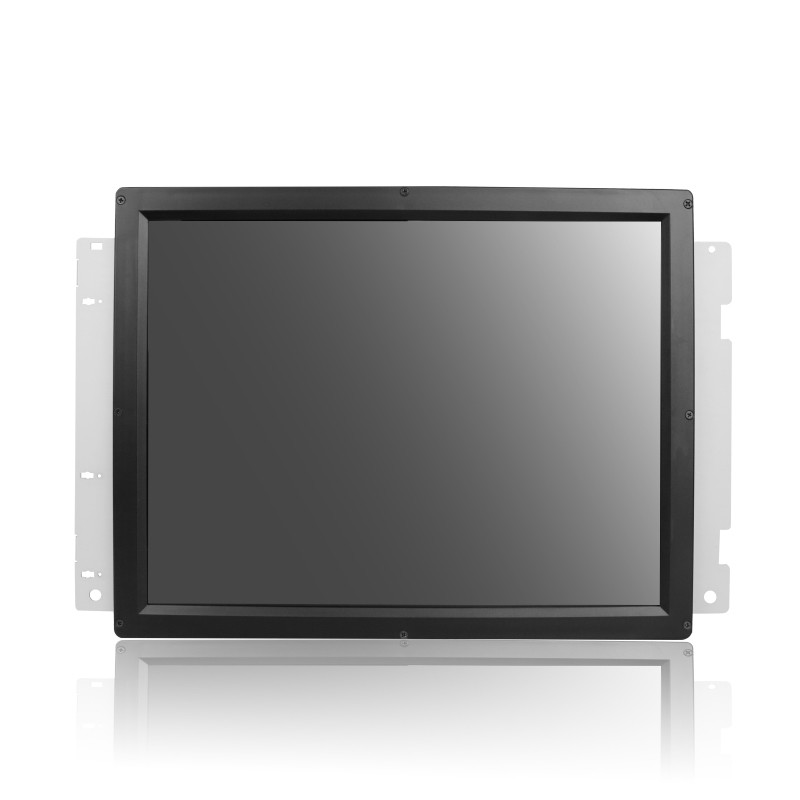

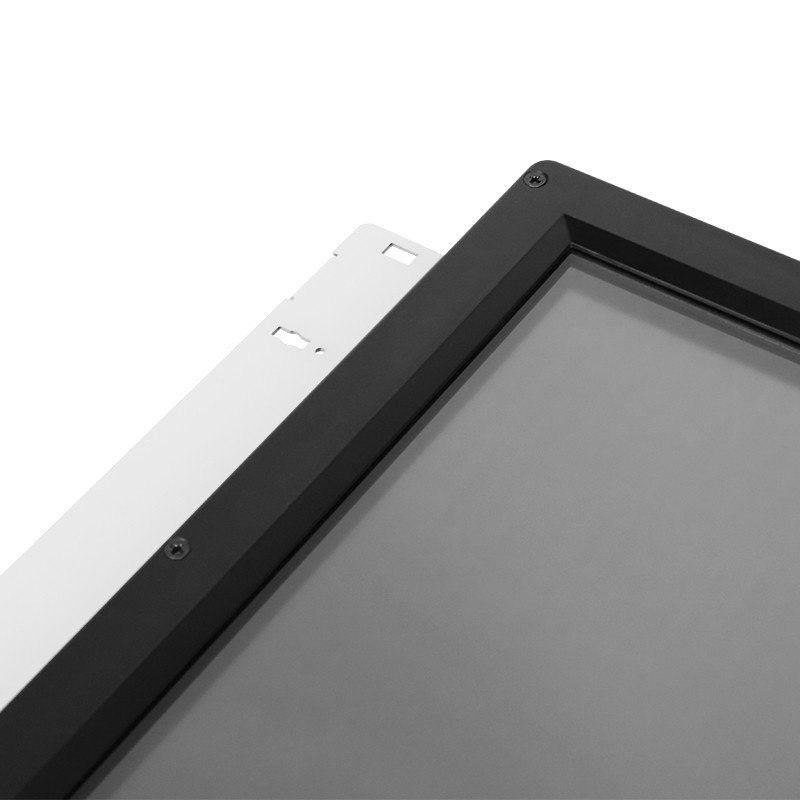

Dust Poof 15 Inch PCAP Touch Monitor With Anti Peeping Function

Dust Poof 15 Inch PCAP Touch Monitor With Anti Peeping Function
Dust Poof 15 Inch PCAP Touch Monitor With Anti Peeping Function Dust Poof 15 Inch PCAP Touch Monitor With Anti Peeping Function Dust Poof 15 Inch PCAP Touch Monitor With Anti Peeping Function Dust Poof 15 Inch PCAP Touch Monitor With Anti Peeping Function Dust Poof 15 Inch PCAP Touch Monitor With Anti Peeping Function Dust Poof 15 Inch PCAP Touch Monitor With Anti Peeping Function
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-150P-017-03
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Monitor Dimensions (W*H*D)398*268*56.3(mm)Display Type4:3 Ratio15"TFT-LCD, LEDbacklight
Active Area304.1x 228.1(mm)Anti-peeping AngleHorizontal(left/right) 40°±5°
Contrast Ratio (Typ.)450(Min.), 800(Typ.)Viewing AngleHorizontal(left/right):  80°/80°
Standby Power≤1.5WOperating Power≤10.3W
Regular Warranty1 YearHardness6H
High Light

Dust Poof PCAP Touch Monitor

,

Anti Peeping PCAP Touch Monitor

,

FCC Certified 15 Inch Touch Monitor

Leave a Message
Product Description


15 Inch PCAP Touch Monitor With Dust-Poof And Anti-Peeping Functions


PCAP Touch Monitor Main Features


This PCAP touch monitor comes with dust-proof, anti-peeping, scratch-resistant and anti-vandal functions, high resolution delivering high quality image with excellent touch experience. Also, the VGA, DVI and USB ports are provided for use. With over 40 engineers, customized services can be offered. Besides, other sizes (7"- 43") are for your option.





PCAP Touch Monitor Specifications

 Complete Machine

Model No.

KOT-0150U-SA6BW(P/N:KOT-150P-017-03)

Series

OT

Display Type

4:3 Ratio15"TFT-LCD, LEDbacklight

Active Area

304.1x 228.1(mm)

Monitor Dimensions (W*H*D)

398*268*56.3(mm)

Suggested   Resolution

1024*768 @ 60Hz

Support   Colors

16.2M

Brightness (Typ.)

Pure   LCD Panel

400cd/㎡

With   Touch Monitor

190cd/㎡

Response Time (Typ.)

6ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):    80°/80°

Vertical(up/down):  65°/80°

 Anti-peeping angle

Horizontal(left/right) 40°±5°

Contrast   Ratio (Typ.)

450(Min.), 800(Typ.)

Video   Input

VGA/DVI

Frequency (H/V)

30～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 V/AC, 50-60 Hz



Environment

Operating   Temp.

0～50°C

Operating   RH

20%～80%

Storage   Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥30,000 Hours

LED   Back Light Life (Typ.)

≥30,000 Hours

Weight（N.W/G.W）

3.3Kg(1pcs) / 7.75Kg(2pcs in one package)

Package   dimensions

445*200*390(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W Operating   Power: ≤10.3W

OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness,   Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function,   Reset

Agency approvals

UL, FCC, CE, CB, RoHS

Regular Warranty

1 year



Touch   Screen

Touch   Type

15" Capacitive   touch screens

Touch   input

USB

Response   Time

≤10ms

Hardness

6H

Light   Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active   Area

(305±0.3)x (229±0.3)(mm)

Thickness

4±0.25(mm)

Touch   Test

≥50,000,000 次

Input Voltage


DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

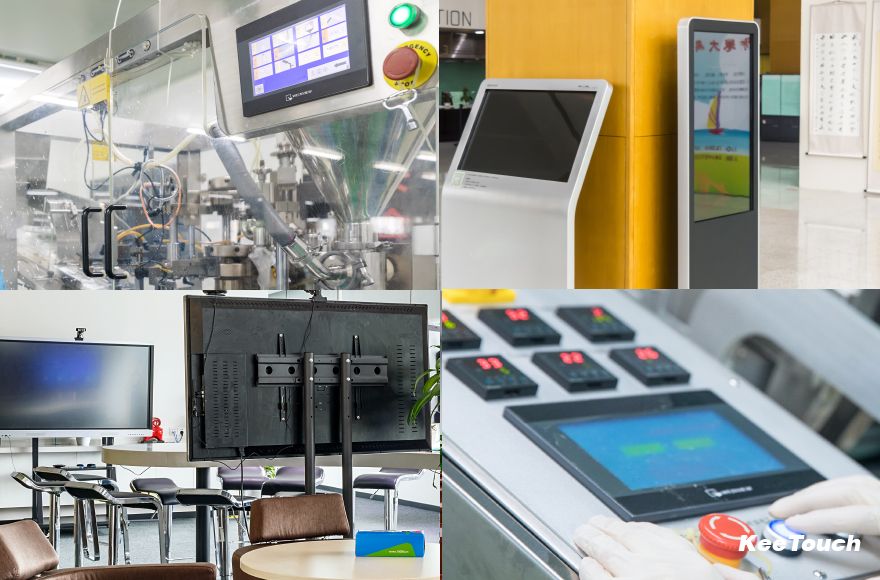

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay. ( L/C can be negotiable. )


5. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
