OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution

OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution
OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution OEM And ODM Services 15 Inch PCAP Touch Monitor 1024x768 Resolution
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-0150U-CA4P (KOT-150P-008)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type4:3 Ratio 15" TFT-LCD
Suggested Resolution1024*768 @ 60HzSupport Colors16.7M
Operating Temp.-0～50°COperating RH20%～80%
20%～80%-10～60°CStorage RH10%～90%
Hardness6HLight Transmittance≥85%
High Light

OEM PCAP Touch Monitor

,

PCAP Touch Monitor 1024x768

,

ODM 15 Inch Touch Monitor

Leave a Message
Product Description

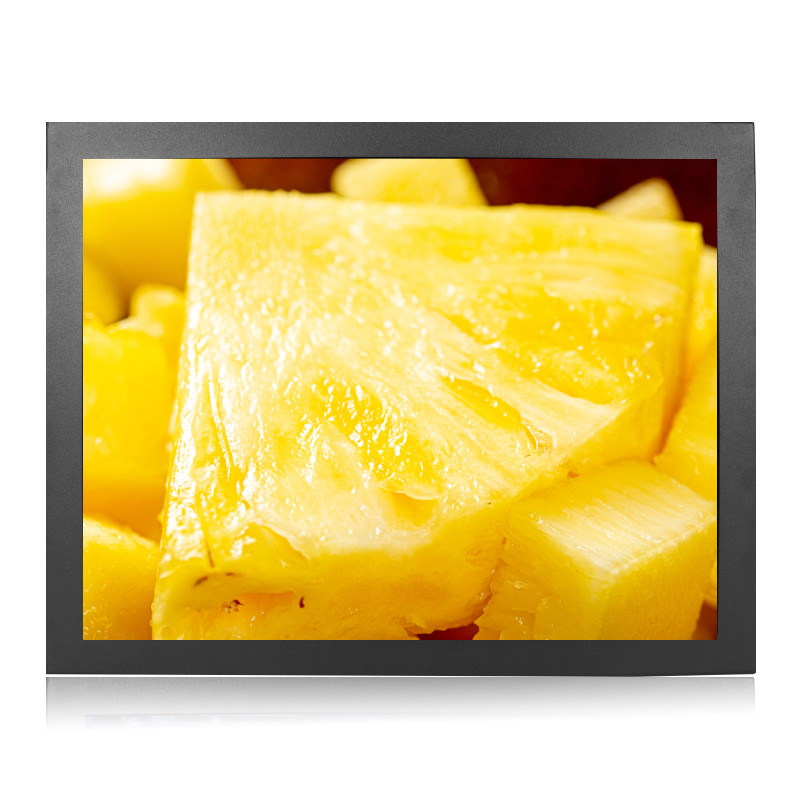

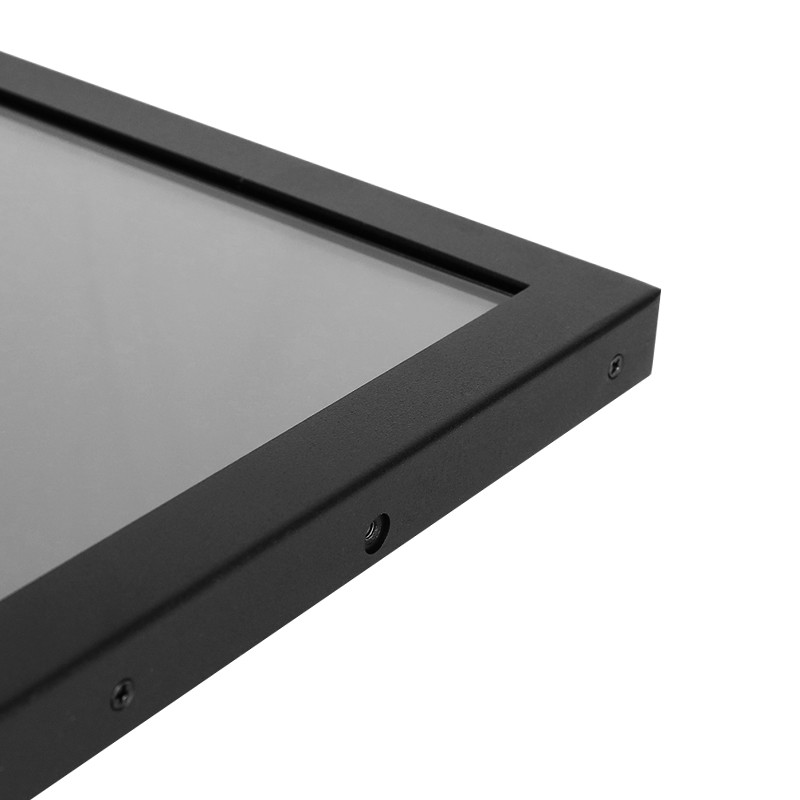

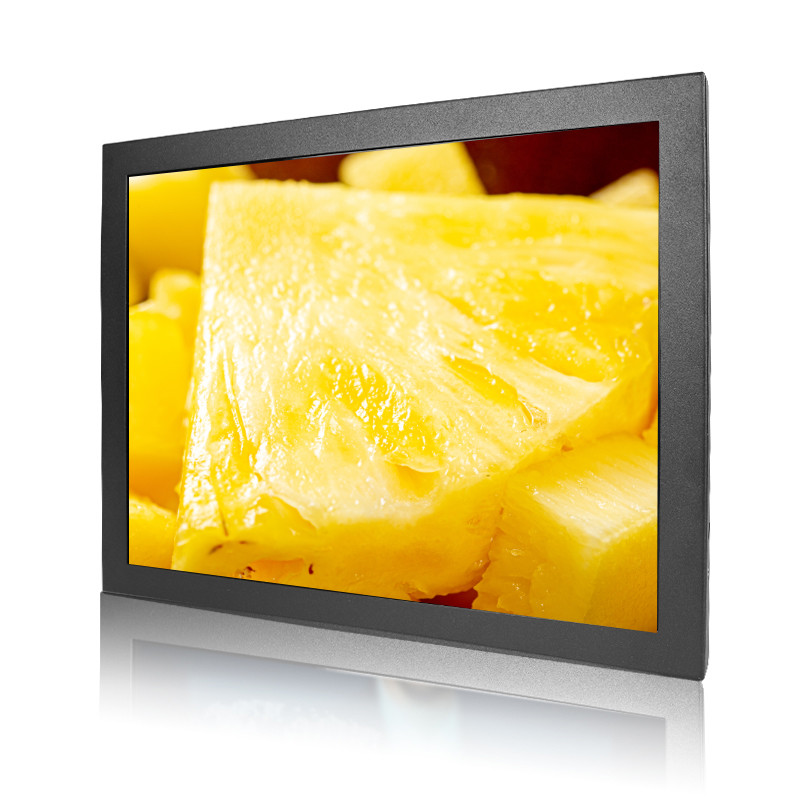

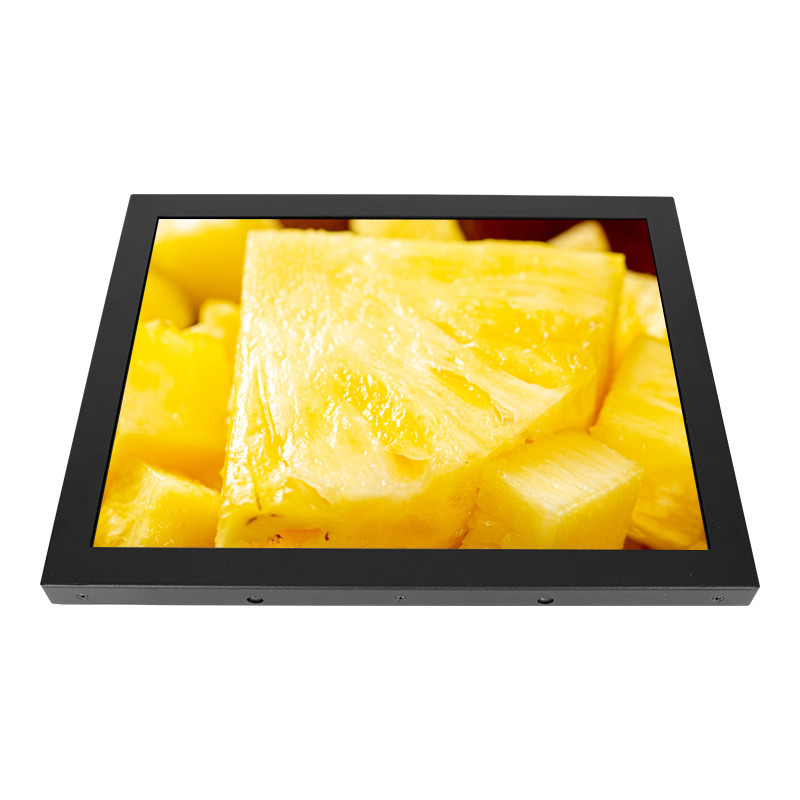

15 Inch PCAP Touch Monitor 1024x768 Resolution



PCAP Touch Monitor Description

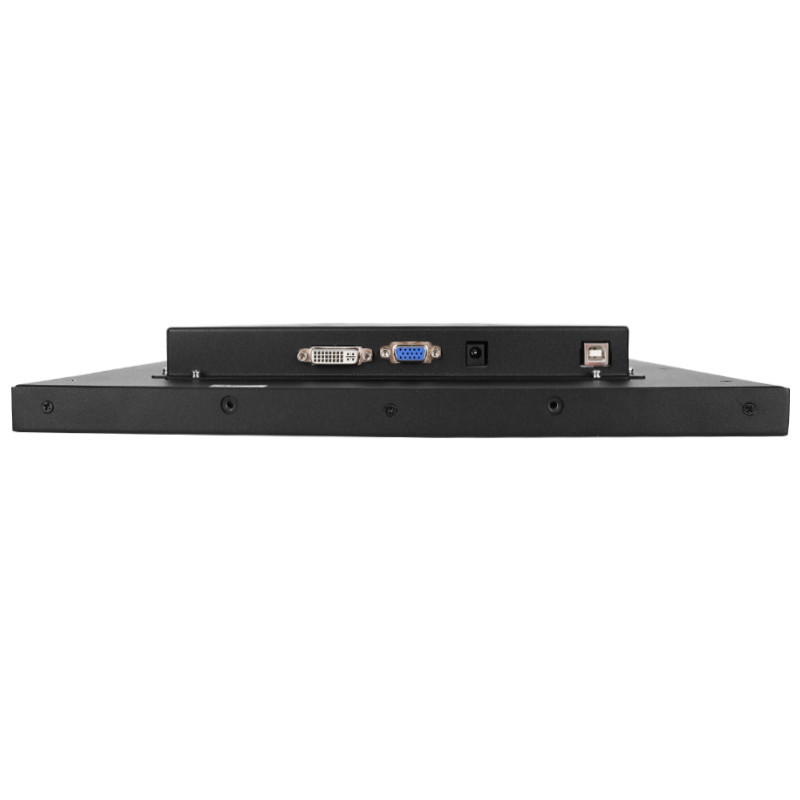

This PCAP touch monitor has features as below: 1024x768 high resolution, 1000:1 contrast ratio with wide viewing angle. It also comes with anti-vandal, anti-glare and dust-proof function. VGA and HDMI interfaces are provided for use, and the USB port for touch. Multiple mounting methods are available, including VESA mount, horizontal and vertical brackets mount. According to customer’s individual requirements, OEM and ODM services are supported.




PCAP Touch Monitor Specifications

Complete Machine

Model   No.

KOT-0150U-CA4P   (P/N:KOT-150P-008)

Series

OT

Display   Type

4:3 Ratio 15" TFT-LCD

Active   Area

304.1*228.1(mm)

Monitor   Dimensions (W*H*D)

348*272*47.5(mm)

Suggested Resolution

1024*768 @ 60Hz

Support Colors

16.7M

Brightness   (Typ.)

Pure LCD Panel

350cd/㎡（Customizable 1000-1500 cd/㎡）

With Touch Monitor

297cd/㎡

Response   Time (Typ.)

16ms

Viewing   Angle(Typ.at CR＞10)）

Horizontal(left/right)

80°/80°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/HDMI

Frequency (H/V)

50～80KHz / 55～70Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

-0～50°C

Operating RH

20%～80%

Storage Temp.

-10～60°C

Storage RH

10%～90%

MTBF

≥30,000 Hours

LED Back Light Life (Typ.)

≥30,000 Hours

Weight（N.W/G.W）

3.5Kg(1pcs)/8Kg(2pcs   in one package)

Package dimensions

429*183*356(mm)(2pcs   in one package)

Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤20W

Mount   Interface

1. VESA   75mm and 100mm

2. Mount   bracket, horizontal or vertical mount

OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio,   Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular   Warranty

1 year


Touch Screen

Touch Type

15"   Capacitive touch screens

Touch input

USB

Response Time

≤8ms

Hardness

6H

Light Transmittance

≥85%

Support   System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

305.1*229.1(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

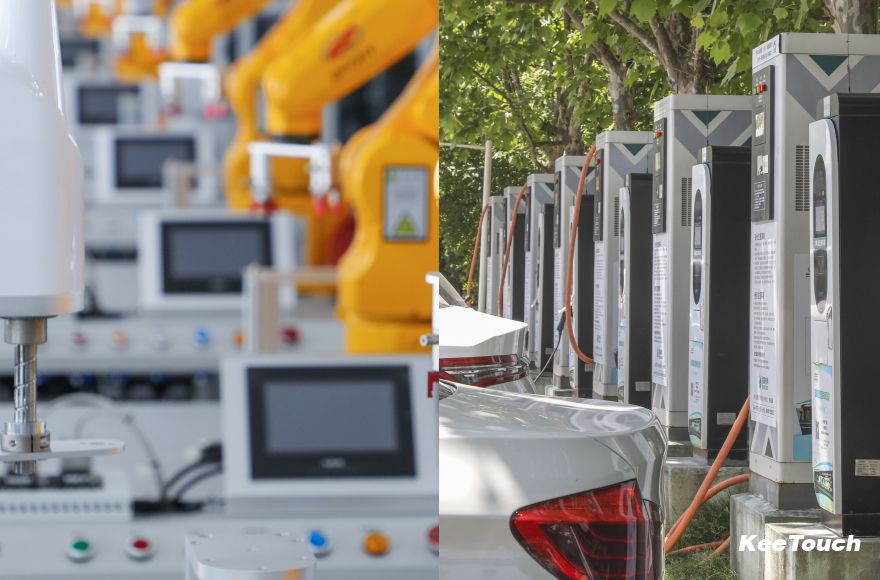

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006 , located in Shenzhen, China.


2. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


3. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


4. What package do you provide?

Our package usually is carton.


5. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


6. What are the shipping ways?

We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


7. Do you give any discount for the PCAP Touch Monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
