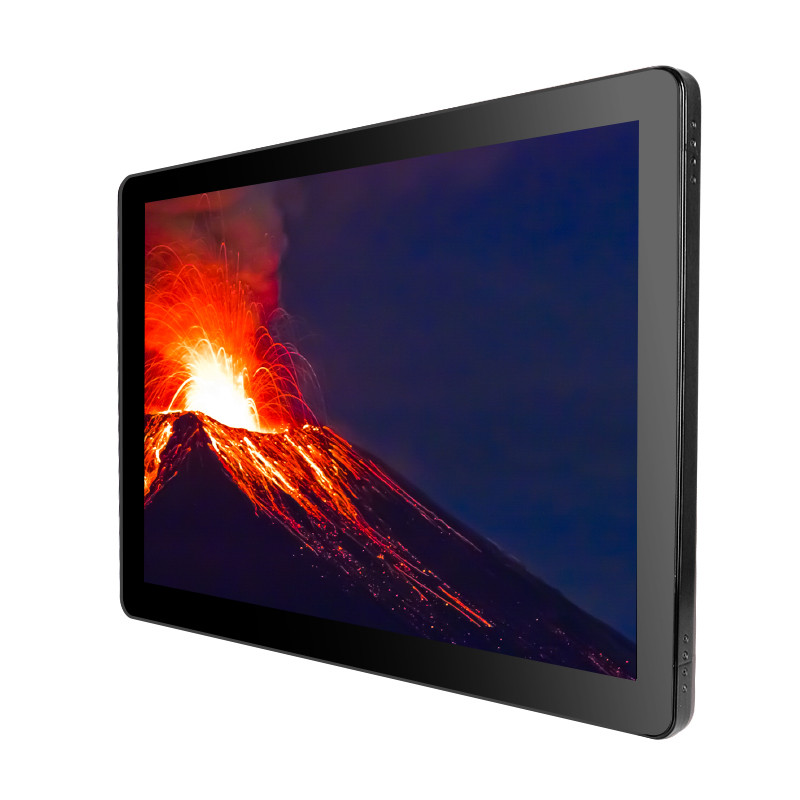

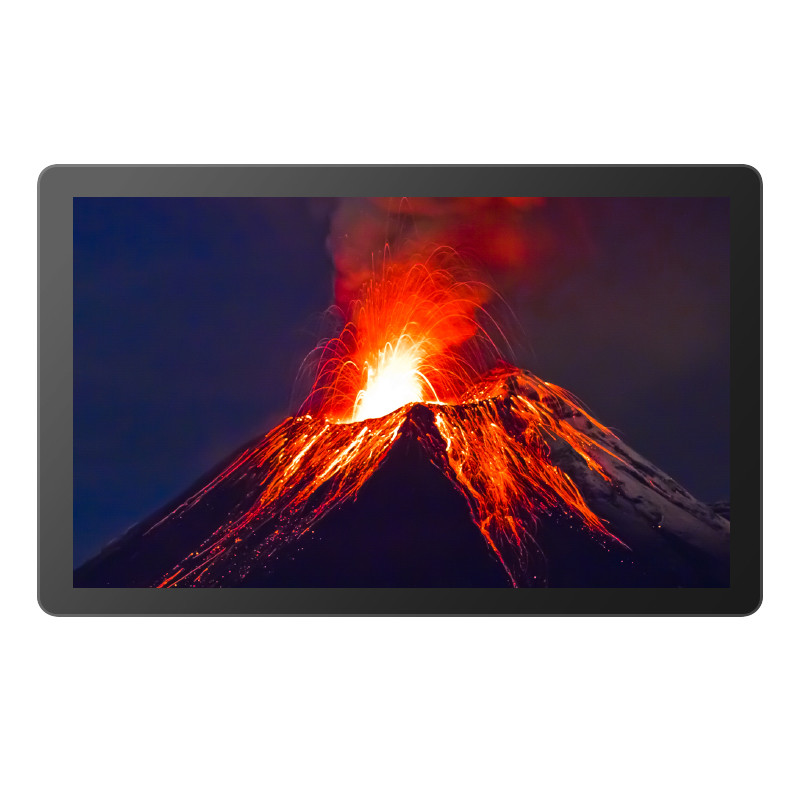

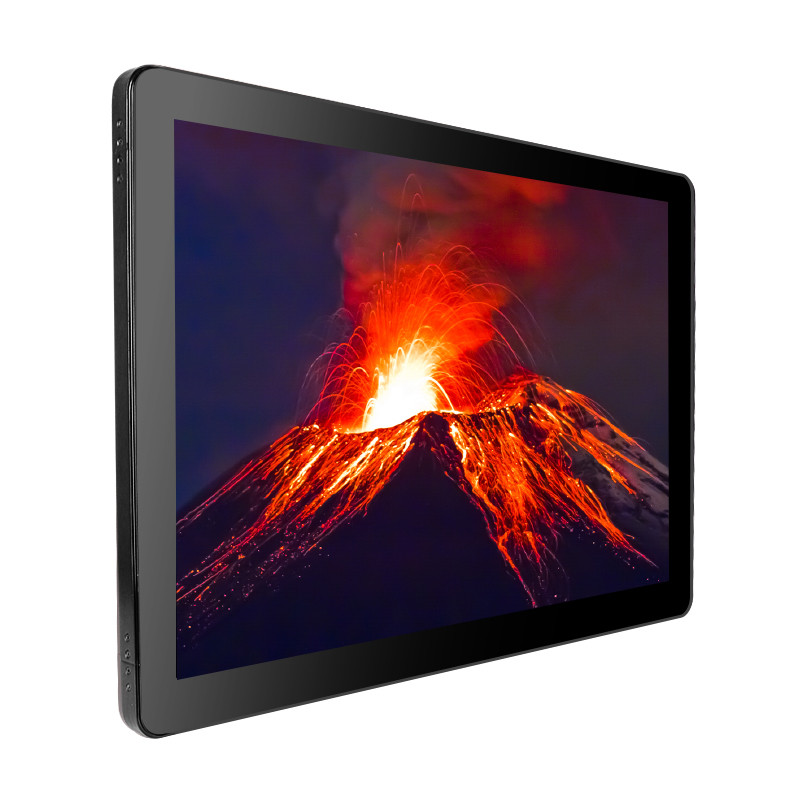

VGA DVI Video Input 32 Inch PCAP Touch Monitor 16:9 Ratio Anti Vandal

VGA DVI Video Input 32 Inch PCAP Touch Monitor 16:9 Ratio Anti Vandal
VGA DVI Video Input 32 Inch PCAP Touch Monitor 16:9 Ratio Anti Vandal VGA DVI Video Input 32 Inch PCAP Touch Monitor 16:9 Ratio Anti Vandal VGA DVI Video Input 32 Inch PCAP Touch Monitor 16:9 Ratio Anti Vandal VGA DVI Video Input 32 Inch PCAP Touch Monitor 16:9 Ratio Anti Vandal VGA DVI Video Input 32 Inch PCAP Touch Monitor 16:9 Ratio Anti Vandal
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-320P-011(KOT-0320U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suggested Resolution1920x1080 @ 60HzSupport Colors16.7M
Contrast Ratio (Typ.)1000:1Video InputVGA\DVI\HDMI
Regular Warranty1 YearLight Transmittance≥85%
Touch Test≥50,000,000 Times
High Light

280cd/m2 PCAP Touch Monitor

,

FCC Approved PCAP Touch Monitor

,

32 Inch Touch Monitor Anti Vandal

Leave a Message
Product Description




32 Inch PCAP Touch Monitor 16:9 Ratio Anti-vandal VGA DVI


Description of PCAP Touch Monitor


This 32 inch PCAP touch monitor comes with high durability, accuracy and multi-touch support, which can be used normally in harsh

environments. It is dust-proof, vandal-proof and IP65 waterproof PCAP touch monitor. VGA, DVI and HDMI interfaces are provided for use.

Moreover, other sizes (7’’-43’’) are for your option.




PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0320U-CA4P (P/N:KOT-320P-011)

 Series

 OT

 Display Type

16:9 Ratio 31.5" TFT-LCD

 Active Area

698.4*392.85(mm)

 Monitor Dimensions (W*H*D)

783.6*473.5*55.5(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

280cd/㎡

With Touch Monitor

238cd/㎡

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

10.2Kg(1pcs)

 Package dimensions

851*153*553(mm)(1pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤40W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

32" Capacitive touch screens

Touch input

USB

Response Time

≤14ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

705.00*397.85(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according to the specific system and version.




Capacitive touch screen technology Mechanical Dimensions


dimensions_1





PCAP touch screen Applications


102


Commercial touchscreen monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Why choose us?

1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.

2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.

3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.

4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.




FAQ:

1. What package do you provide for the PCAP touch monitor?

Our package usually is carton.

2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.

3. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.

4. Do you give any discount for the PCAP touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
