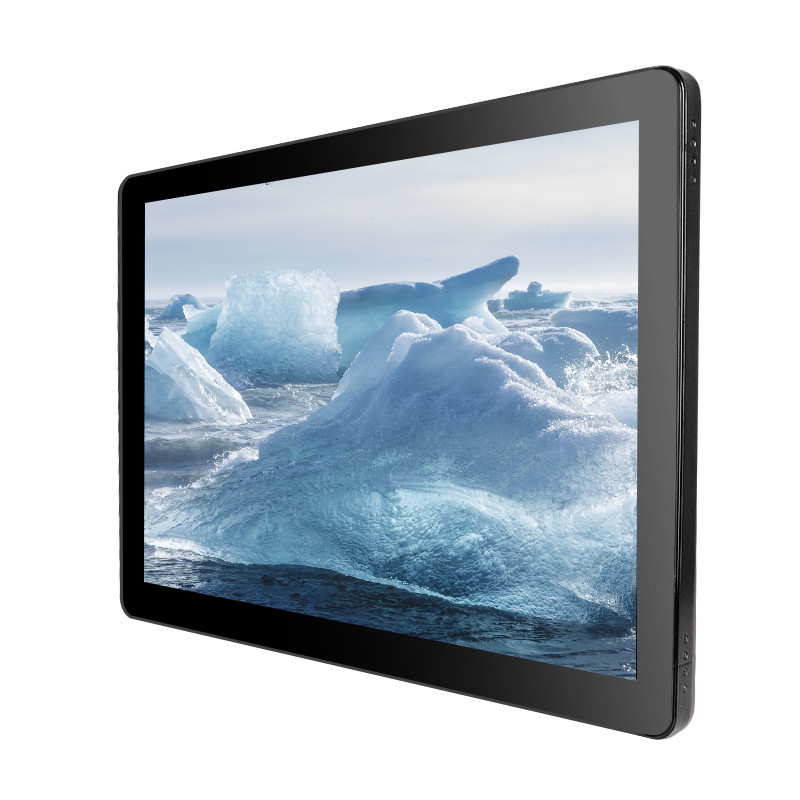

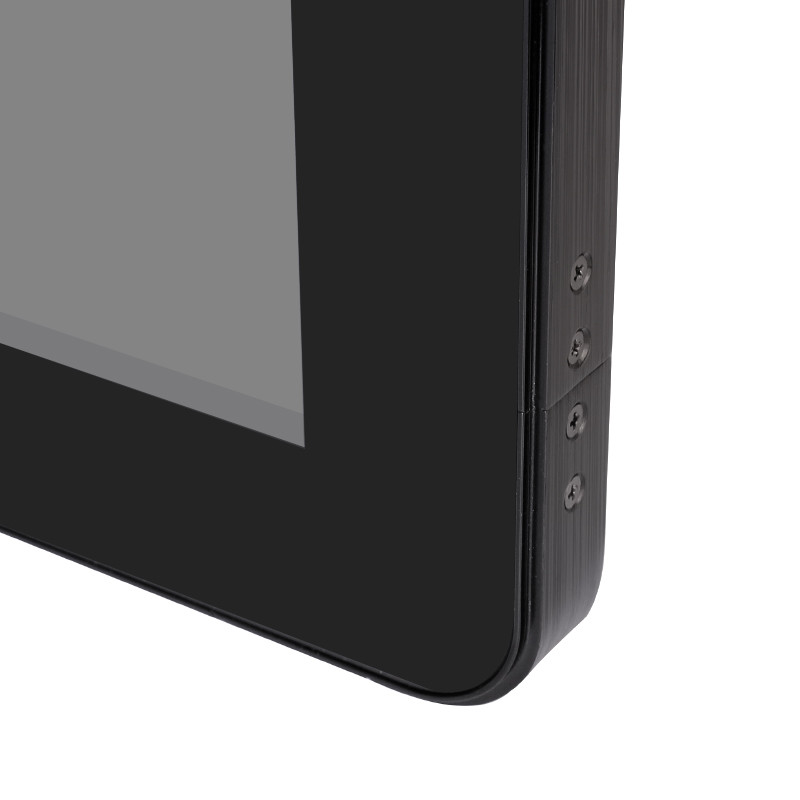

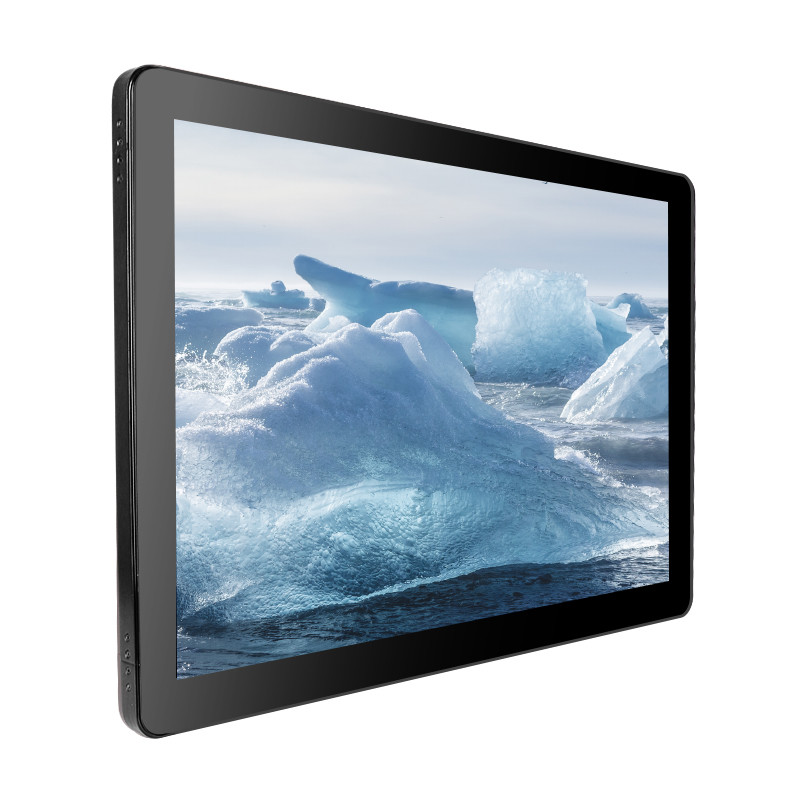

6H Hardness IP65 Waterproof 32 Inch Touch Monitor 1920x1080 Resolution

6H Hardness IP65 Waterproof 32 Inch Touch Monitor 1920x1080 Resolution
6H Hardness IP65 Waterproof 32 Inch Touch Monitor 1920x1080 Resolution 6H Hardness IP65 Waterproof 32 Inch Touch Monitor 1920x1080 Resolution 6H Hardness IP65 Waterproof 32 Inch Touch Monitor 1920x1080 Resolution 6H Hardness IP65 Waterproof 32 Inch Touch Monitor 1920x1080 Resolution 6H Hardness IP65 Waterproof 32 Inch Touch Monitor 1920x1080 Resolution
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-320P-011(KOT-0320U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Hardness6HLight Transmittance≥85%
Support Colors16.7MVideo InputVGA\DVI\HDMI
Contrast Ratio (Typ.)1000:1Vertical(up/down)80°/80°
Support SystemXP,WIN7,WIN8,WIN10,Linux,AndroidMTBF30,000 Hours
High Light

PCAP Touch Monitor ODM

,

6H Hardness 32 Inch Touch Monitor

,

IP65 Waterproof 32 Inch Touch Monitor

Leave a Message
Product Description




32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080



Description of PCAP Touch Monitor


This 32 inch PCAP touch monitor comes with Projected Capacitive touch technology with high resolution and wide viewing

angle. It is industrial grade PCAP touch monitor, durable and fashionable. Per customer’s individual requirements, with over

40 professional engineers, OEM and ODM services are welcomed. Also, other sizes (7’’-43’’) can be offered or customized.




PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0320U-CA4P (P/N:KOT-320P-011)

 Series

 OT

 Display Type

16:9 Ratio 31.5" TFT-LCD

 Active Area

698.4*392.85(mm)

 Monitor Dimensions (W*H*D)

783.6*473.5*55.5(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

280cd/㎡

With Touch Monitor

238cd/㎡

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

10.2Kg(1pcs)

 Package dimensions

851*153*553(mm)(1pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤40W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

32" Capacitive touch screens

Touch input

USB

Response Time

≤14ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

705.00*397.85(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according to the specific system and version.




PCAP Touch Monitor Mechanical Dimensions


dimensions_1




Applications


103


PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.

2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.

3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.

4. Professional after-sales team at any time to provide services to customers.





FAQ

1. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

2. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)

3. What is your delivery time for the PCAP touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
