32 Inch PCAP Touch Monitor Open Frame Vandal Proof For Kiosks

32 Inch PCAP Touch Monitor Open Frame Vandal Proof For Kiosks
32 Inch PCAP Touch Monitor Open Frame Vandal Proof For Kiosks 32 Inch PCAP Touch Monitor Open Frame Vandal Proof For Kiosks 32 Inch PCAP Touch Monitor Open Frame Vandal Proof For Kiosks 32 Inch PCAP Touch Monitor Open Frame Vandal Proof For Kiosks 32 Inch PCAP Touch Monitor Open Frame Vandal Proof For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-320P-011(KOT-0320U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pure LCD Panel Brightness

280cd/m²

Touch Monitor Brightness238cd/m²
Horizontal Viewing Angle(left/right)85°/85°Vertical Viewing Angle(up/down)80°/80°
Operating Temp0～50°COperating RH20%～80%
Storage Temp-20～60°CStorage RH10%～90%
High Light

CE Certified PCAP Touch Monitor

,

238cd/m² Open Frame Touch Monitor

,

280cd/m² Open Frame Touch Monitor

Leave a Message
Product Description

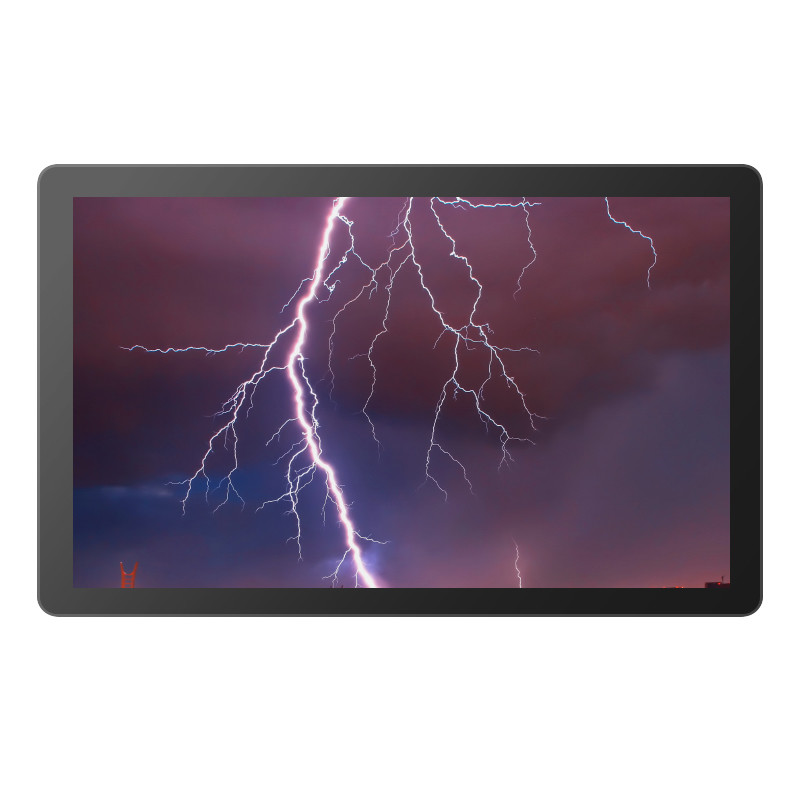

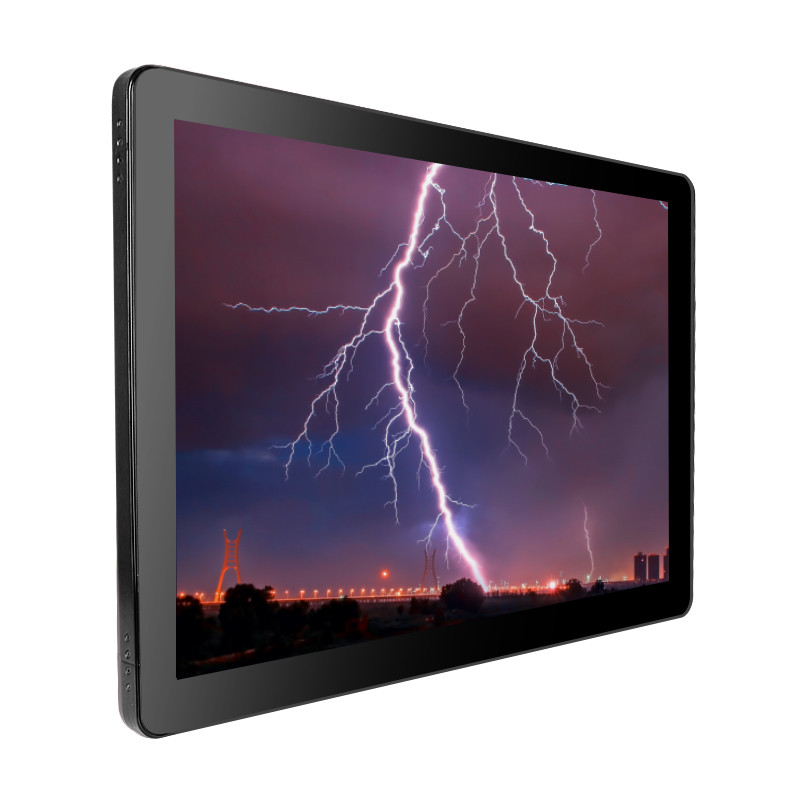

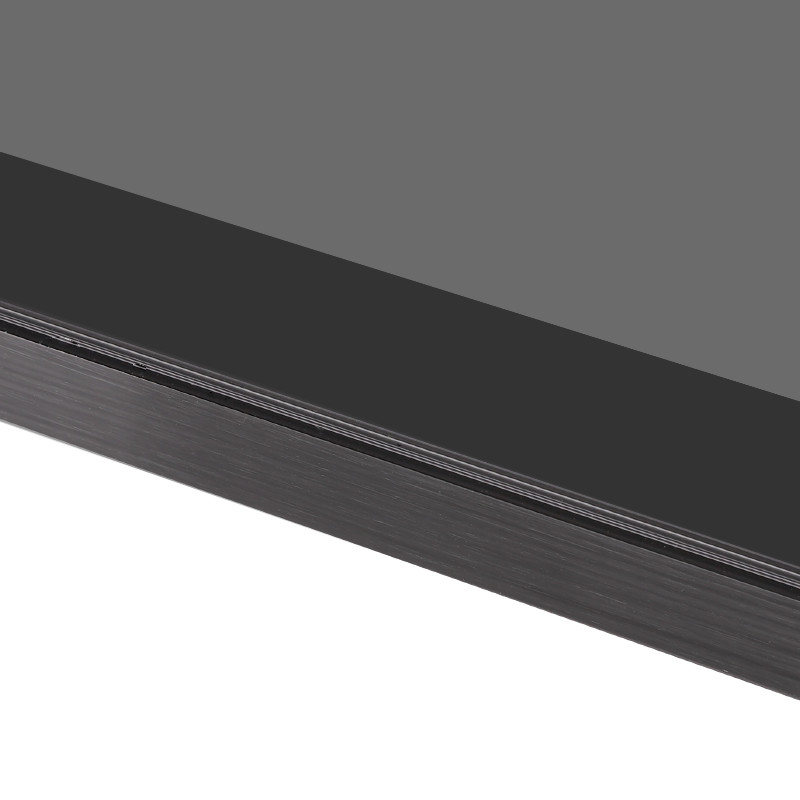

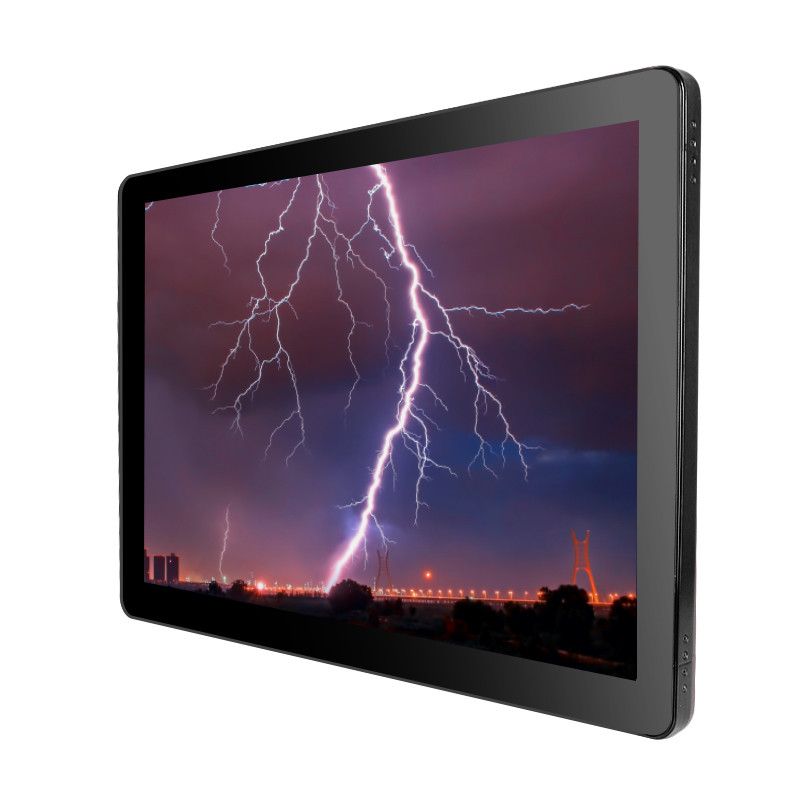

32 Inch PCAP Touch Monitor Open Frame Vandal-Proof For Kiosks


Description of PCAP Touch Monitor


This capacitive touch screen comes with main features as following: 1920*1080 high resolution, 1000:1 contrast ratio, 280 nits brightness with wide viewing angle. The PCAP touch monitor provides VGA, DVI and HDMI interfaces for use, USB for touch. It is pure flat designed, sleek and fashionable. In addition, the touch monitor is IP65 waterproof, dust proof and anti-vandal.




PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0320U-CA4P (P/N:KOT-320P-011)

 Series

 OT

 Display Type

16:9 Ratio 31.5" TFT-LCD

 Active Area

698.4*392.85(mm)

 Monitor Dimensions (W*H*D)

783.6*473.5*55.5(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

280cd/㎡

With Touch Monitor

238cd/㎡

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

10.2Kg(1pcs)

 Package dimensions

851*153*553(mm)(1pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤40W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

32" Capacitive touch screens

Touch input

USB

Response Time

≤14ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

705.00*397.85(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according to the specific system and version.

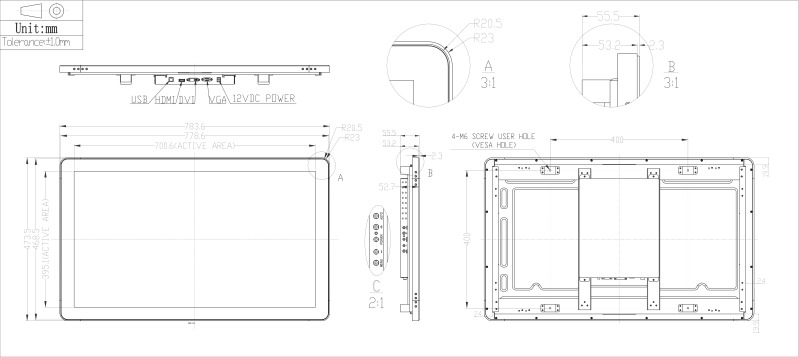

PCAP touch screen Mechanical Dimensions


dimensions_1




Interactive Touch Screen Solutions Application:


Retail

Gaming

Kiosk

Self-service

Finance

Transit

Conference

Education

Healthcare

Public service

E-commerce

Hotels

Restaurants


125




Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
