32 Inch PCAP Touch Monitor White Color Zero Bezel PCAP Display
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Response Time (Typ.) | 8ms | Display Type | 16:9 Ratio32"TFT-LCD, LED Backing |
|---|---|---|---|
| Support Colors | 16.7M | Video Input | VGA\DVI\HDMI |
| Contrast Ratio (Typ.) | 1000:1 | Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C | Light Transmittance | ≥85% |
| Product Name | PCAP Touch Monitor | Warranty | One Year |
Product Description

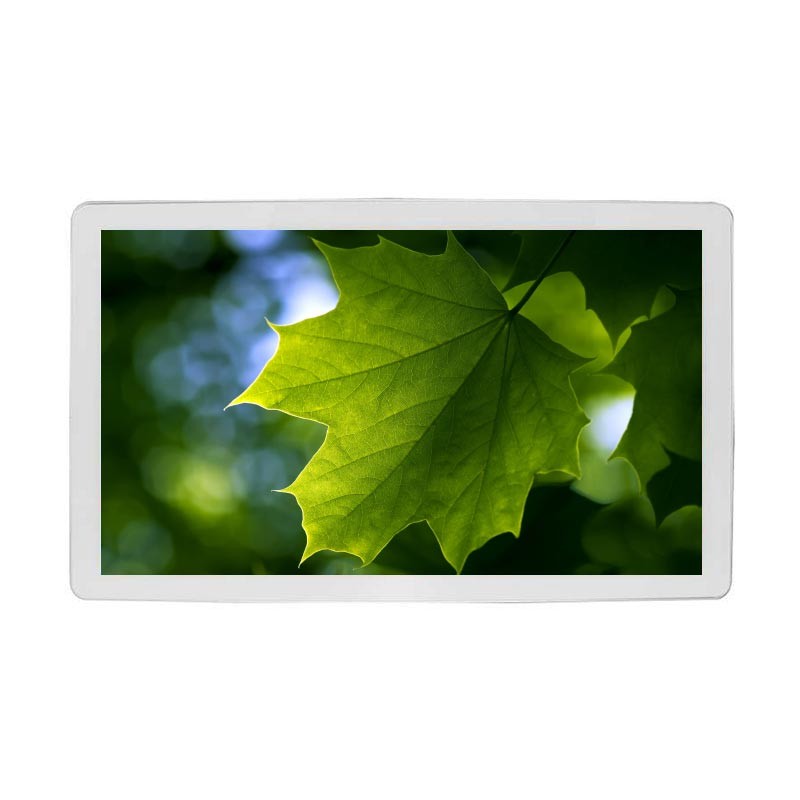

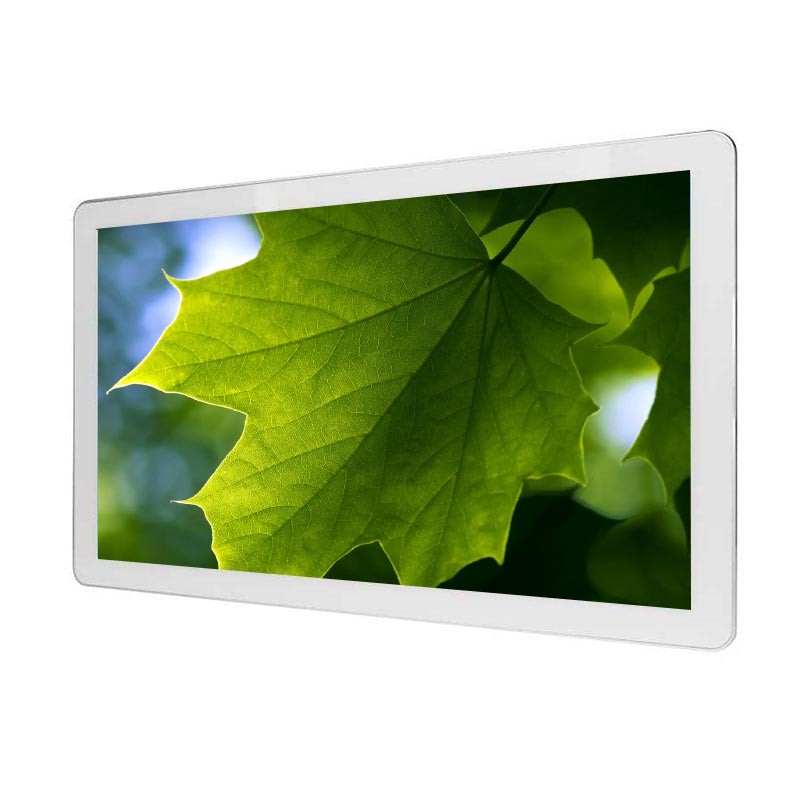

32 Inch PCAP Touch Monitor White Color Zero Bezel PCAP Display
PCAP Touch Monitor Main Features
Adopt industrial-grade A TFT LCD panel, durable and multi-touch, impressive white color cases
Aluminum alloy shell, good mechanical properties, better performance of heat dissipation

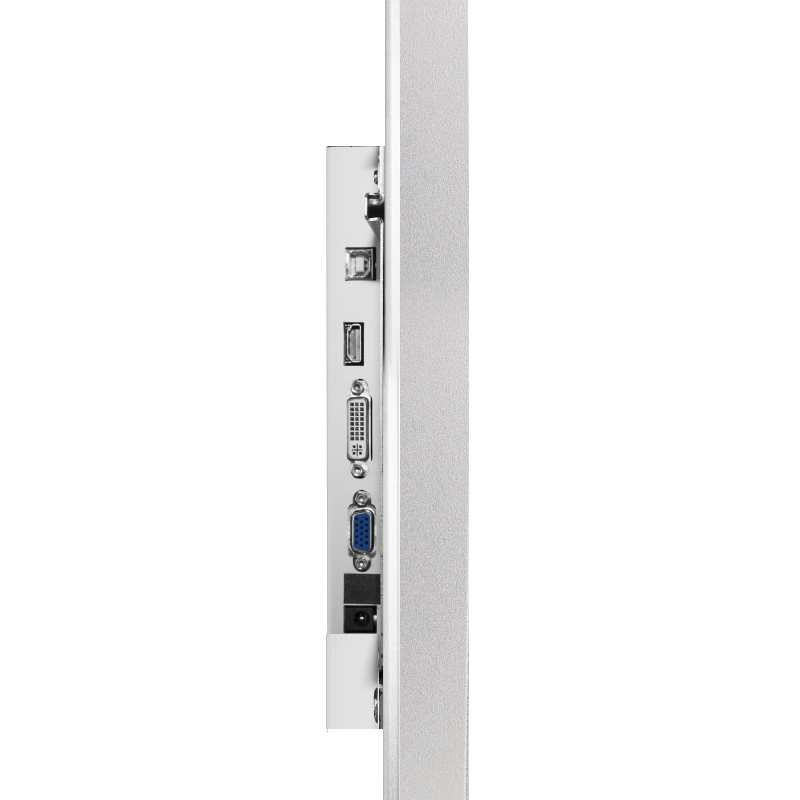

Multiple interfaces like HDMI, VGA, DVI, and USB ports make all connections easy and convenient
Except for the 32inch PCAP touch monitor, other sizes ranging from 7inch to 55inch for option
Complying with UL, CE, ROHS, and FCC standards
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0320U-CA4P (P/N:KOT-320P-011) | |
Series | OT | |
Display Type | 16:9 Ratio 31.5" TFT-LCD | |
Active Area | 698.4*392.85(mm) | |
Monitor Dimensions (W*H*D) | 783.6*473.5*55.5(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 280cd/㎡ |
With Touch Monitor | 238cd/㎡ | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | 85°/85° | |
80°/80° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGADVIHDMI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 10.2Kg(1pcs) | |
Package dimensions | 851*153*553(mm)(1pcs in one package) | |
Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W | |

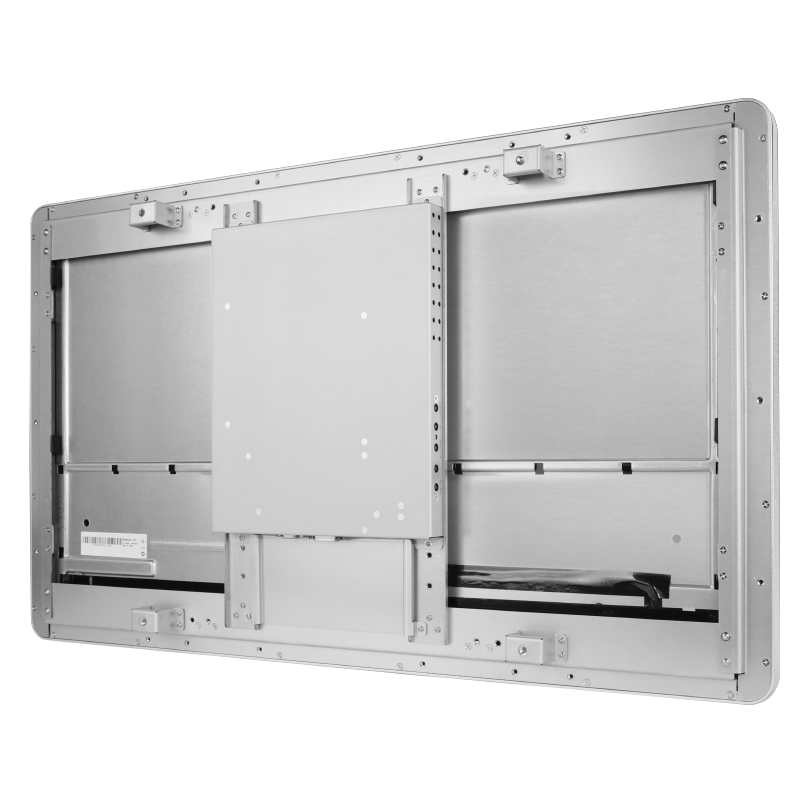

Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 32" Capacitive touch screens |
Touch input | USB |
Response Time | ≤14ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 705.00*397.85(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according to the specific system and version.

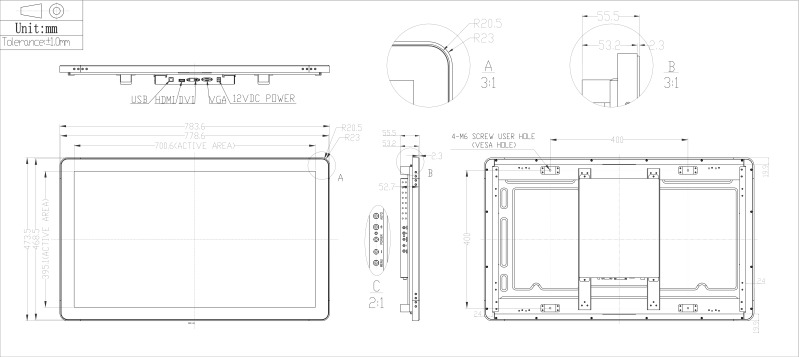

PCAP Touch Monitor Mechanical Dimensions
Our Advantages
1. Complete product lines include PCAP/SAW/IR touchscreens, touch monitors, touch computers, and other hardware parts.
2. Rich experience since 2006 in manufacturing touch products and providing one-stop touch solutions.
3. 200+ employees, 100+ thousand manufacturing capacity per month, 40+ R&D engineers to serve customers in 70+ countries worldwide.
4. KeeTouch's core advantage is Customization. Any OEM/ODM requirements are warmly welcomed.
5. A lot of marketing materials like specifications, posters, product videos, and brochures are ready to share.
FAQ
Q: Are you a manufacturer?
A: Yes, KeeTouch is a professional manufacturer of touch products since 2006. Our factory is located in Shenzhen, China.
Q: What are your main product lines?
A: Our product lines include touchscreens(covers SAW/IR/PCAP technology), touch monitors, all-in-one touch pc, and other hardware accessories.
Q: Do you plan to develop worldwide distributors or agents?
A: Of course. Now we have branches/agents in Germany, Brazil, and India. Welcome to talk more about the distributors' and agents' business.
Q: What's the package of the industrial touch monitor?
A: K-K layer carton box.
Q: How about the monthly manufacturing capacity?
A: 100+ thousand manufacturing capacity per month.
