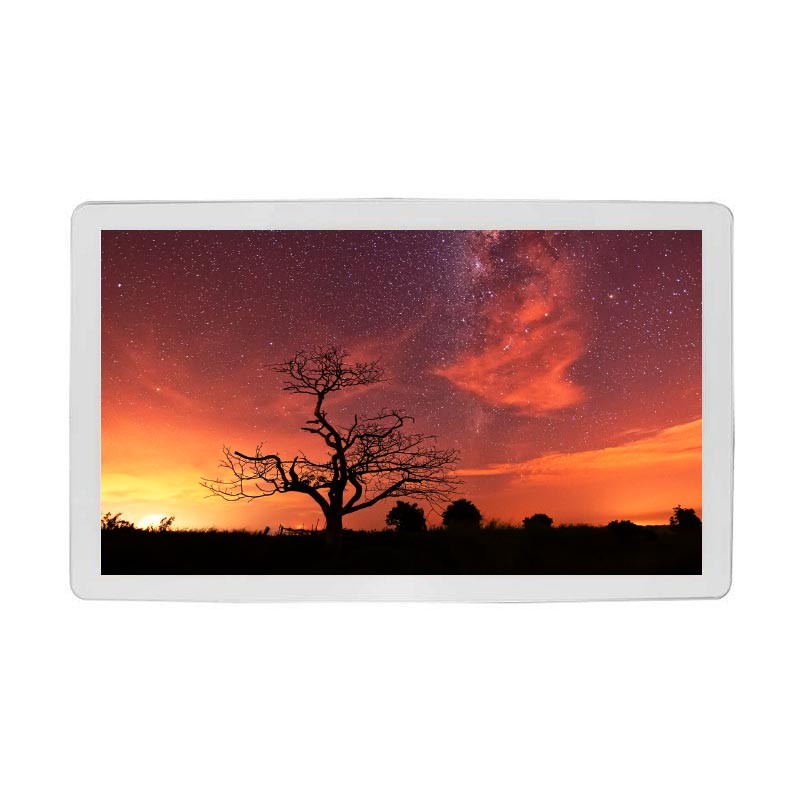

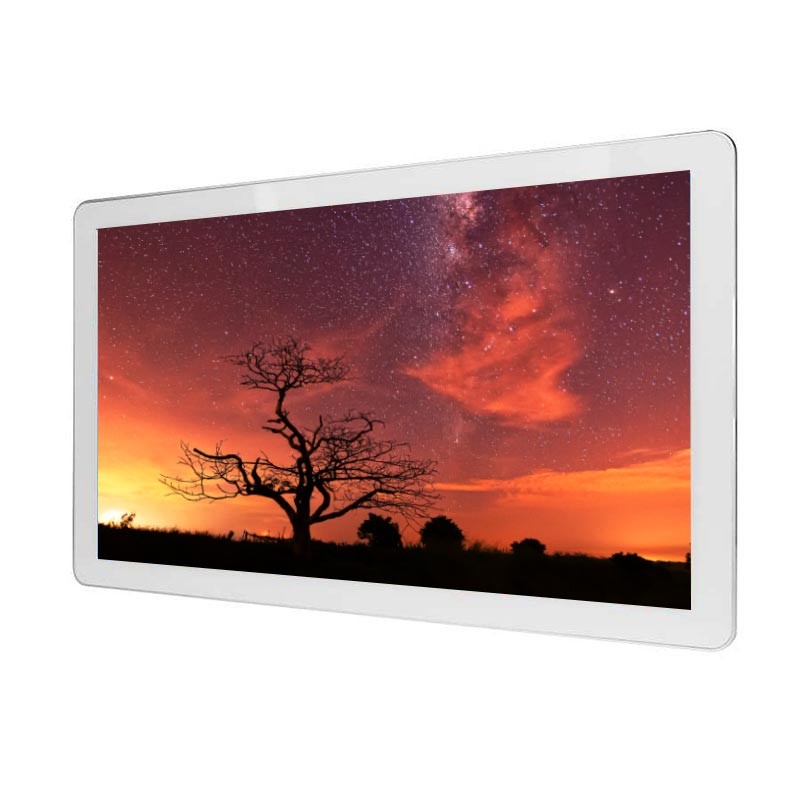

32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Response Time (Typ.) | 8ms | Display Type | 16:9 Ratio32"TFT-LCD, LED Backing |
|---|---|---|---|
| Support Colors | 16.7M | Video Input | VGA\DVI\HDMI |
| Contrast Ratio (Typ.) | 1000:1 | Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C | Light Transmittance | ≥85% |
| Product Name | PCAP Touch Monitor | Warranty | One Year |
Product Description
32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
PCAP Touch Monitor Main Features
IP65 grade water-proof, and dust-proof for the front panel

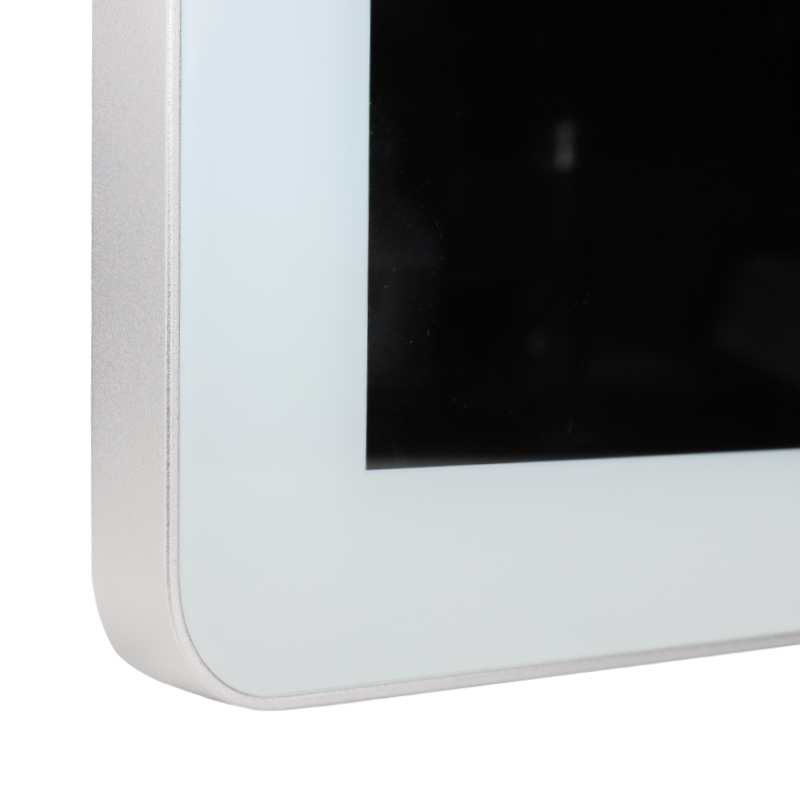

Aluminum alloy shell, good mechanical properties, better performance of heat dissipation
Compatible with various industrial systems/applications
Except for the 32inch PCAP touch monitor, other sizes ranging from 7inch to 55inch for option
Unique white color PCAP touch monitor, very brilliant and eye-catching
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0320U-CA4P (P/N:KOT-320P-011) | |
Series | OT | |
Display Type | 16:9 Ratio 31.5" TFT-LCD | |
Active Area | 698.4*392.85(mm) | |
Monitor Dimensions (W*H*D) | 783.6*473.5*55.5(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 280cd/㎡ |
With Touch Monitor | 238cd/㎡ | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | 85°/85° | |
80°/80° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGADVIHDMI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 10.2Kg(1pcs) | |
Package dimensions | 851*153*553(mm)(1pcs in one package) | |
Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W | |

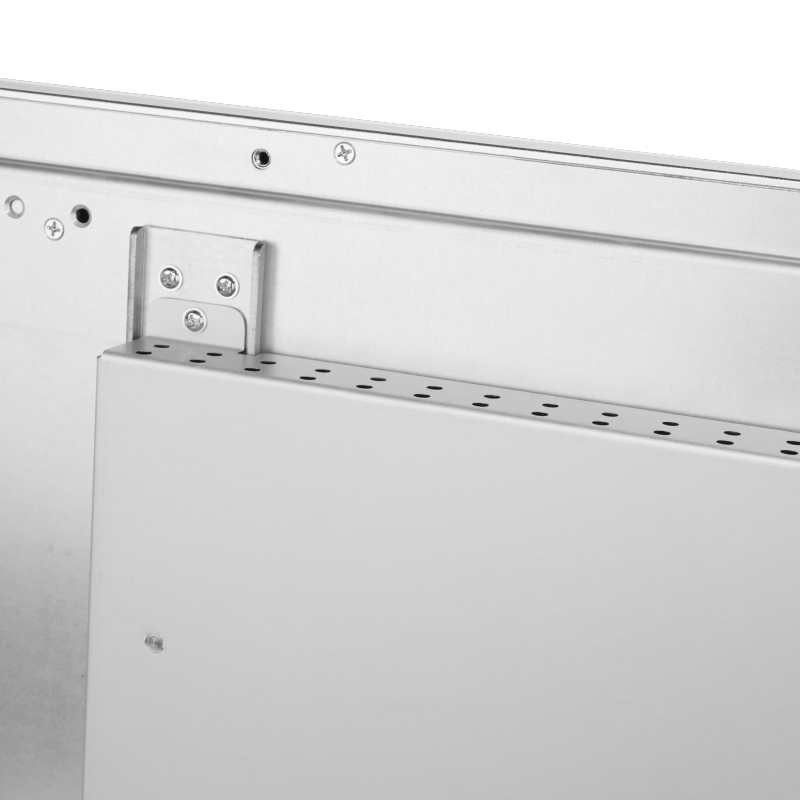

Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 32" Capacitive touch screens |
Touch input | USB |
Response Time | ≤14ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 705.00*397.85(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according to the specific system and version.
PCAP Touch Monitor Mechanical Dimensions
Applications
Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, Industrial control equipment, Advertising kiosks, All-in-one conference machine, etc.
Business Organizations: supermarkets, large-scale shopping malls, exclusive agencies, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, and pharmacies.
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, and golf courses.
