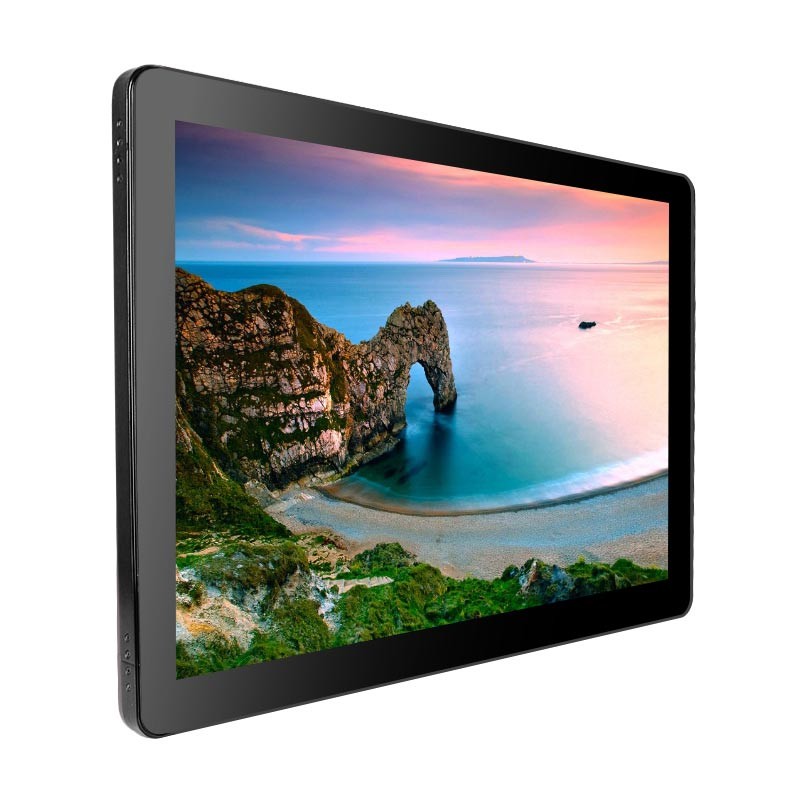

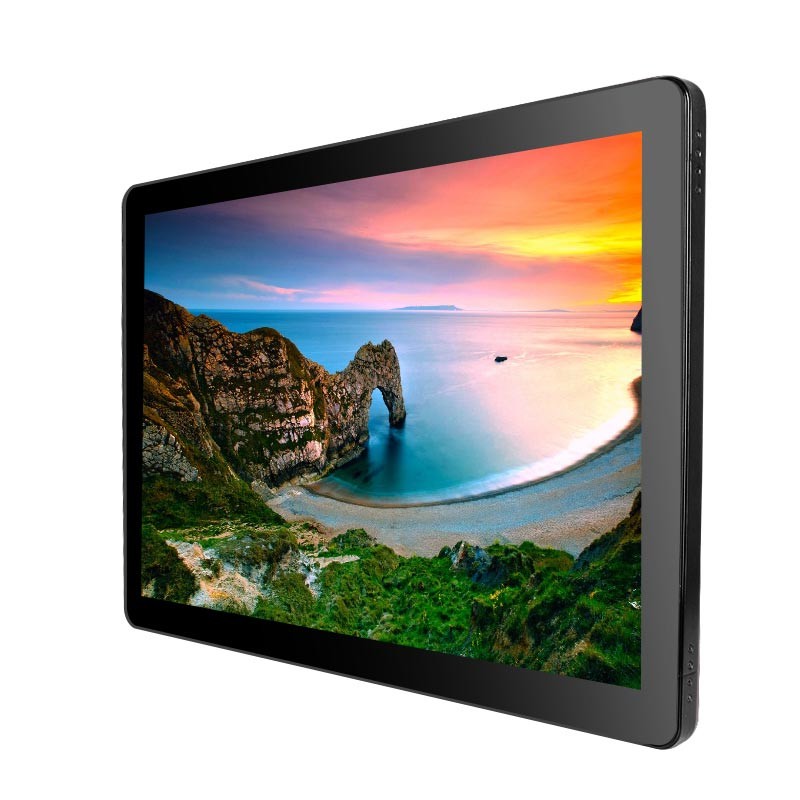

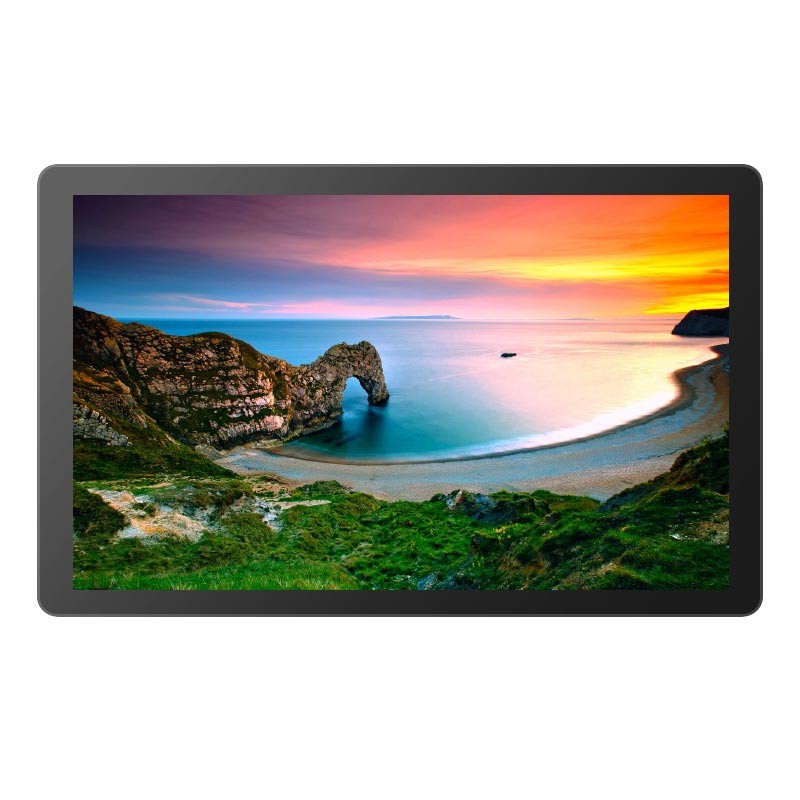

32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Response Time (Typ.) | 8ms | Display Type | 16:9 Ratio 31.5" TFT-LCD |
|---|---|---|---|
| Support Colors | 16.7M | Video Input | VGA\DVI\HDMI |
| Contrast Ratio (Typ.) | 1000:1 | Vertical(up/down) | 80°/80° |
| Storage Temp. | -20～60°C | MTBF | 30,000 Hours |
| Product Name | PCAP Touch Monitor | Warranty | One Year |
Product Description
32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
PCAP Touch Monitor Main Features
Projected-Capacitive technology, 10-point multi-touch, sensitive and accurate touch solutions
Adopt industrial control HD LCD screen +LED backlight screen, highlight picture, perfect color

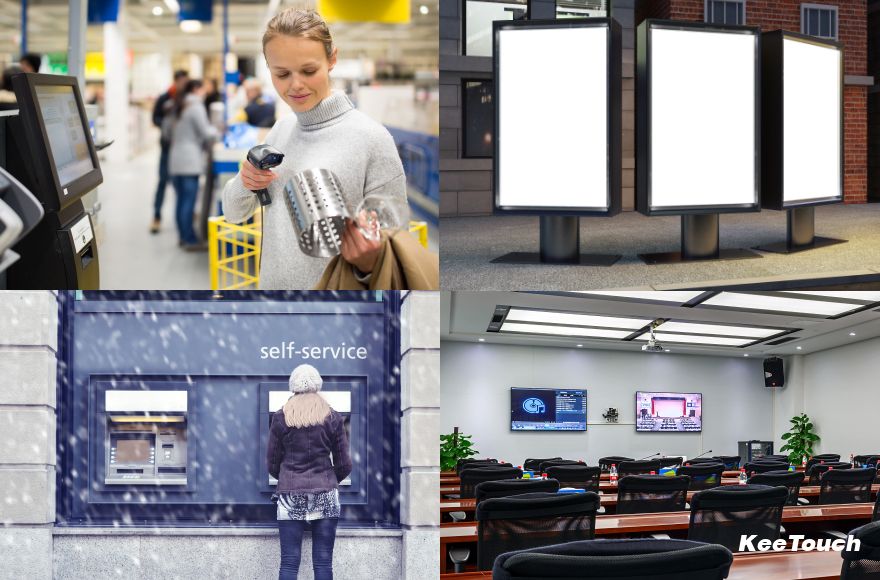

The 32inch PCAP touch monitor can be Compatible with various industrial systems/applications.
Real IP65 waterproof with the nice pure flat front panel, using industrial grade TFT-LCD
CCC, ETL, FCC, CE, CB, RoHS certificates
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0320U-CA4P (P/N:KOT-320P-011) | |
Series | OT | |
Display Type | 16:9 Ratio 31.5" TFT-LCD | |
Active Area | 698.4*392.85(mm) | |
Monitor Dimensions (W*H*D) | 783.6*473.5*55.5(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 280cd/㎡ |
With Touch Monitor | 238cd/㎡ | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | 85°/85° | |
80°/80° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGADVIHDMI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 10.2Kg(1pcs) | |
Package dimensions | 851*153*553(mm)(1pcs in one package) | |
Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 32" Capacitive touch screens |
Touch input | USB |
Response Time | ≤14ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 705.00*397.85(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according to the specific system and version.
Why Choose Keetouch?
Abundant experience since 2006 in producing various touch products including touchscreens, touch monitors, all-in-touch computers, and other hardware parts.
A professional Sales Team (20+ sales representatives) and a strong R&D Team ( more than 40 senior engineers) offer you complete support on products and technicals.
Detailed specification sheets, posters, brochures, impressive product videos, and 3D drawings help you catch the target market in the shortest time.
Worldwide certificates like UL, FCC, CE, ROHS, and TUV are ready. No worry about the import and sale.
FAQ
Q: Are you a manufacturer or a trader?
A: KeeTouch is a professional manufacturer of touch products, and we started to engage in this field in 2006.
Q: What are your main product lines?
A: Our product lines include touchscreens(covers SAW/IR/PCAP technology), touch monitors, all-in-one touch pc, and other hardware accessories.
Q: What delivery terms can be accepted?
A: EXW, FOB, CIF, DDU, DDP are all ok.
Q: What's the package of the industrial touch monitor?
A: K-K layer carton box.
Q: How about the OEM/ODM ability?
A: KeeTouch has a strong R&D team to do customizations. OEM and ODM are welcome.
