32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080

32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080
32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080 32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080 32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080 32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080 32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-320P-011(KOT-0320U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time (Typ.)8msDisplay Type16:9 Ratio 31.5" TFT-LCD
Support Colors16.7MVideo InputVGA\DVI\HDMI
Contrast Ratio (Typ.)1000:1Vertical(up/down)80°/80°
Storage Temp.-20~60°CMTBF30,000 Hours
Product NamePCAP Touch MonitorWarrantyOne Year
Leave a Message
Product Description

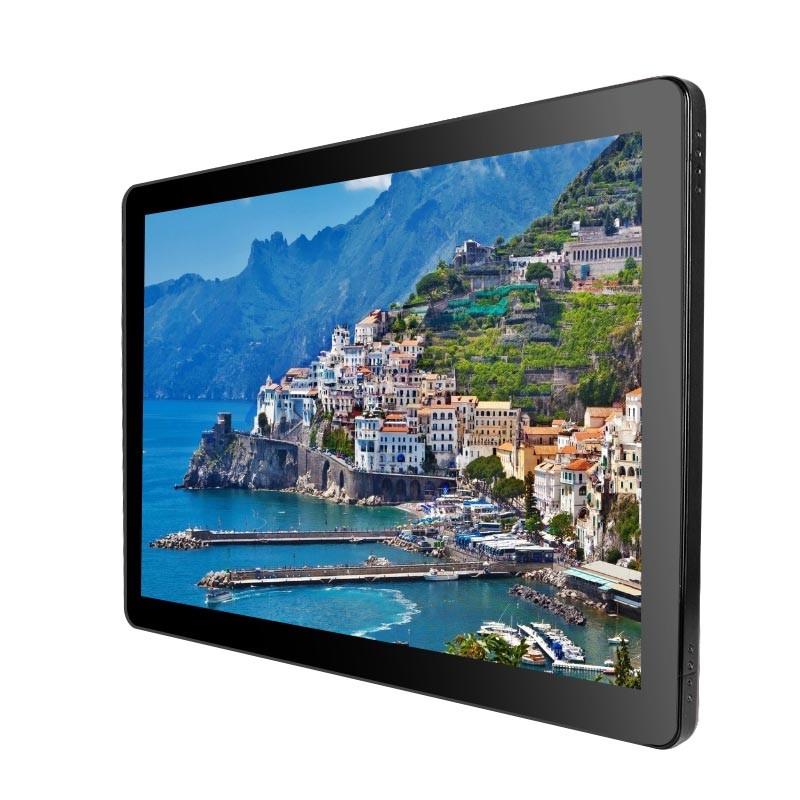

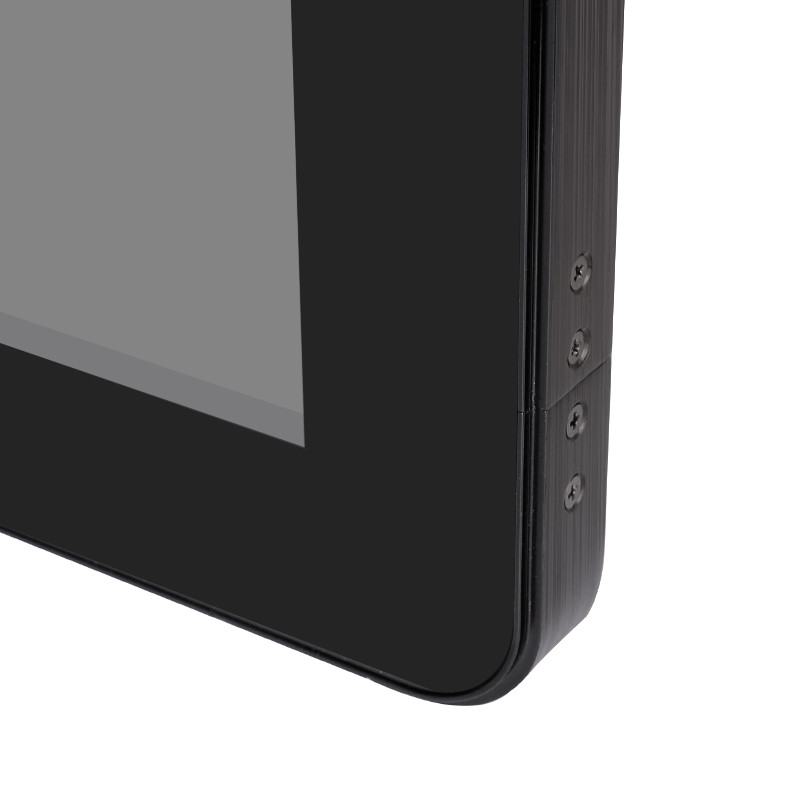

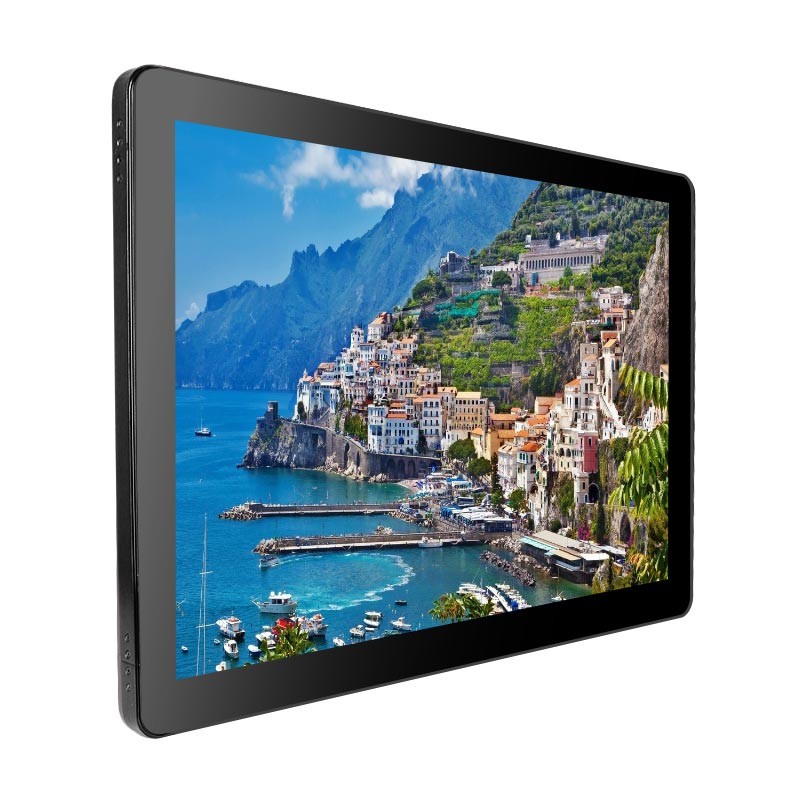

32 Inch PCAP Touch Monitor IP65 Capacitive Touch Display 1920x1080


PCAP Touch Monitor Main Features


Projected-Capacitive technology, 10-point multi-touch, sensitive and accurate touch solutions

Except for the 32inch PCAP touch monitor, we have other sizes from 7inch to 55inch for option

Zero-bezel open frame design, full HD 1920x1080, fast response time<14ms

Real IP65 waterproof with the nice pure flat front panel, using industrial grade TFT-LCD

Multiple interfaces to meet different functions requirements





PCAP Touch Monitor Specifications



 Complete Machine

 Model No.

 KOT-0320U-CA4P (P/N:KOT-320P-011)

 Series

 OT

 Display Type

16:9 Ratio 31.5" TFT-LCD

 Active Area

698.4*392.85(mm)

 Monitor Dimensions (W*H*D)

783.6*473.5*55.5(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

280cd/㎡

With Touch Monitor

238cd/㎡

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

37.9~80KHz / 60~75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight(N.W/G.W)

10.2Kg(1pcs)

 Package dimensions

851*153*553(mm)(1pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤40W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

32" Capacitive touch screens

Touch input

USB

Response Time

≤14ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

705.00*397.85(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according to the specific system and version.




Applications


184


KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart homes, subways, railway stations, control and operation systems, airports, entertainments, etc.




FAQ

Q: Are you a manufacturer or a trader?

A: KeeTouch is a professional manufacturer of touch products, and we started to engage in this field in 2006.


Q: What are your main product lines?

A: Our product lines include touchscreens(covers SAW/IR/PCAP technology), touch monitors, all-in-one touch pc, and other hardware accessories.


Q: The warranty of KeeTouch's products?

A: 12-month warranty for regular items. A longer warranty period can be negotiated.


Q: Lead time for samples and bulk orders?

Sample orders' lead time is around 5-7 days, and bulk orders' production time is 10-15 days or so.
