32 Inch PCAP Touch Monitor 16:9 Ratio For ATM Kiosk Smart Locker

32 Inch PCAP Touch Monitor 16:9 Ratio For ATM Kiosk Smart Locker
32 Inch PCAP Touch Monitor 16:9 Ratio For ATM Kiosk Smart Locker 32 Inch PCAP Touch Monitor 16:9 Ratio For ATM Kiosk Smart Locker 32 Inch PCAP Touch Monitor 16:9 Ratio For ATM Kiosk Smart Locker 32 Inch PCAP Touch Monitor 16:9 Ratio For ATM Kiosk Smart Locker 32 Inch PCAP Touch Monitor 16:9 Ratio For ATM Kiosk Smart Locker
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-320P-012(KOT-0320U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time (Typ.)8msDisplay Type16:9 Ratio32"TFT-LCD, LED Backing
Support Colors16.7MVideo InputVGA\DVI\HDMI
Contrast Ratio (Typ.)1000:1Operating Temp.0～50°C
Storage Temp.-20～60°CLight Transmittance≥85%
Product NamePCAP Touch MonitorWarrantyOne Year
Leave a Message
Product Description


32 Inch PCAP Touch Monitor 16:9 Ratio For ATM Kiosk Smart Locker


PCAP Touch Monitor Main Features

  • PCAP multi-touch screen, support 10 points touch

  • Dust-proof, vandal-proof and scratch resistant PCAP touch monitor

  • Pure flat designed PCAP touch monitor with IP65 front frame waterproof

  • Multiple mounting options include VESA mount, horizontal vertical brackets mount

  • VGA/DVI/DHMI interfaces,USB for touch input

  • Support system: XP, WIN7, WIN8, WIN10, Linux, Android

  • Other sizes are available (7’’-43’’)




PCAP Touch Monitor Specifications



 Complete Machine

 Model No.

KOT-0320U-CA4P (P/N:KOT-320P-012)

 Series

OT

 Display Type

16:9 Ratio32"TFT-LCD, LED backing

 Active Area

700.6*395.1(mm)

 Monitor Dimensions (W*H*D)

783.6*473.5*55.2(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

280cd/m2

With Touch Monitor

238cd/m2

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):85°/85°

Vertical(up/down): 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

10.2Kg(1 pcs)

 Package dimensions

851*153*553(mm)(1pcs)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤40W

 Mount Interface

 1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

32" Capacitive touch screens

Touch input

USB

Response Time

≤14ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

700.6*395.1(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

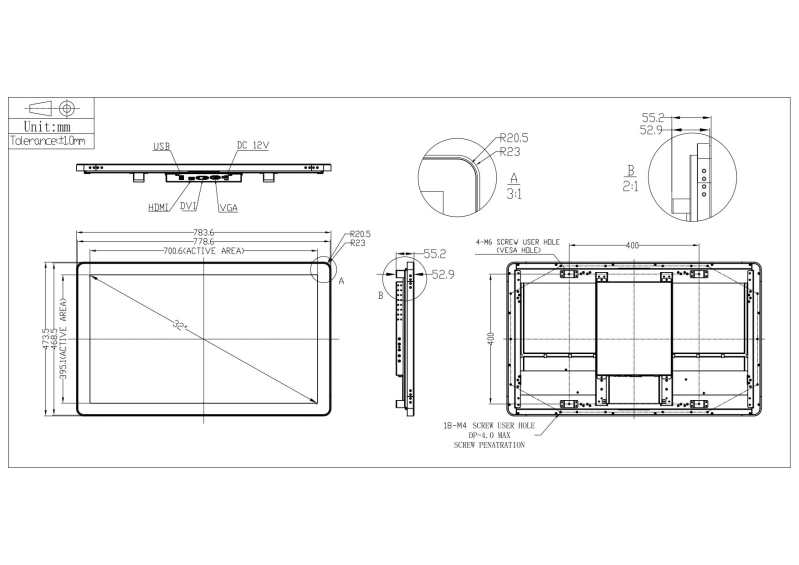

PCAP Touch Monitor Mechanical Dimensions

dimensions_1

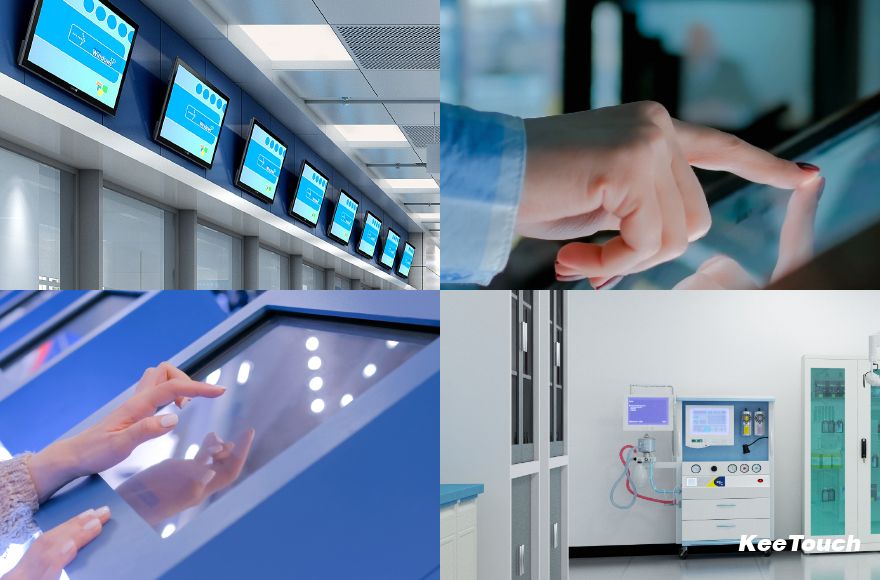

Applications

 43


KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.








FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
