1920x1080 Resolution PCAP 23 Inch Touch Monitor With LED Flexible Strip

1920x1080 Resolution PCAP 23 Inch Touch Monitor With LED Flexible Strip
1920x1080 Resolution PCAP 23 Inch Touch Monitor With LED Flexible Strip 1920x1080 Resolution PCAP 23 Inch Touch Monitor With LED Flexible Strip 1920x1080 Resolution PCAP 23 Inch Touch Monitor With LED Flexible Strip 1920x1080 Resolution PCAP 23 Inch Touch Monitor With LED Flexible Strip
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-230P-005(KOT-0230U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Touch Type23" Capacitive Touch ScreensResponse Time10s
Operating Temp.0～50°COperating RH20%～80%
Storage Temp.-20～60°CStorage RH10%～90%
Video InputVGA/DVI/HDMILight Transmittance≥85%
Product NamePCAP Touch MonitorHardness7H
High Light

DC5V 23 Inch Touch Monitor

,

CB 23 Inch Touch Monitor

,

1920x1080 PCAP Touch Monitor

Leave a Message
Product Description

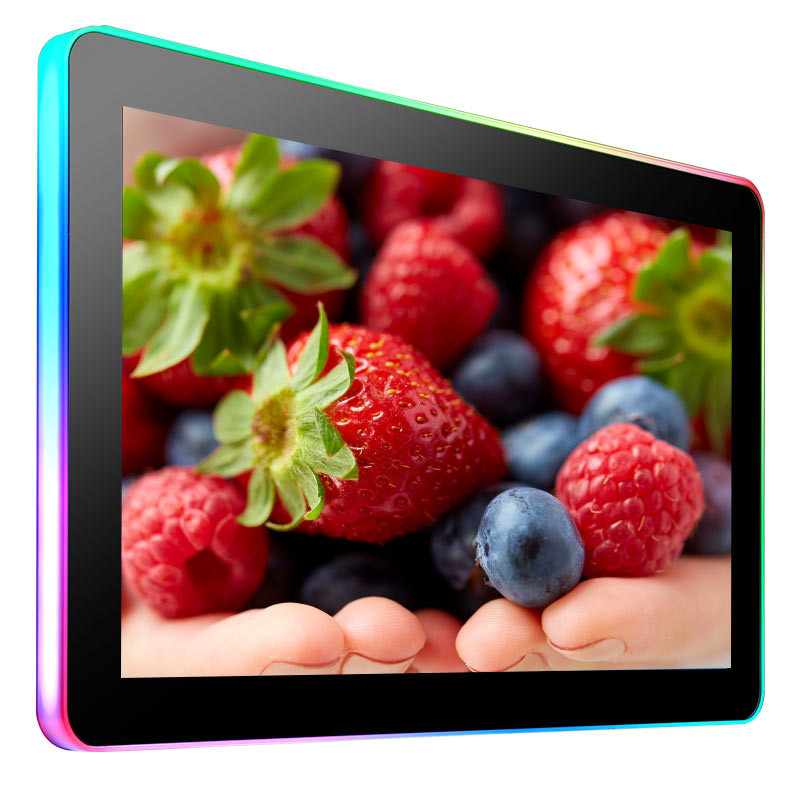

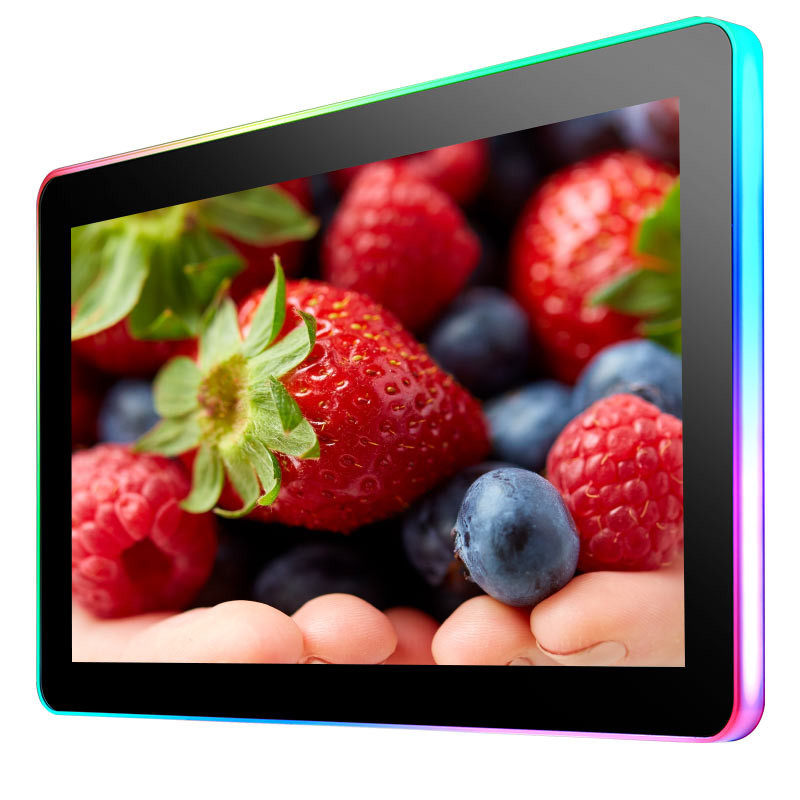

23 Inch PCAP Touch Monitor With LED Flexible Strip 1920x1080 Resolution



PCAP Touch Monitor Description


This PCAP touch monitor has features as follows: 1920x1080 high resolution, 1000:1 contrast ratio and full viewing angle. Pure flat designed PCAP touch monitor comes with IP65 front side water-proof function. With the LED flexible strip, it looks specially fashionable and attractive. VGA/DVI/HDMI interfaces are provided for use, and the USB port for touch. Multiple mounting methods are for your option, including VESA mount, horizontal and vertical brackets mount. Per your individual requirements, customized service can be offered.




PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0230U-CA4P (P/N:KOT-230P-005)

 Series

 OT

 Display Type

16:9 Ratio 23" TFT-LCD

 Active Area

509.184*286.416(mm)

 Monitor Dimensions (W*H*D)

569*348.2*47.2(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m2

With Touch Monitor

212cd/m2

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI/HDMI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

8.55Kg(1pcs)/19.3Kg(2pcs in one package)

 Package dimensions

650*435*195(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

23" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

513.80*291.00(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 次

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications


125


KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.


2. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


3. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


4. What package do you provide?

Our package usually is carton.


5. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


6. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


7. Do you give any discount for the PCAP Touch Monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
