23 Inch PCAP Gaming Touch Monitor With LED Flexible Strip DC 12V

23 Inch PCAP Gaming Touch Monitor With LED Flexible Strip DC 12V
23 Inch PCAP Gaming Touch Monitor With LED Flexible Strip DC 12V 23 Inch PCAP Gaming Touch Monitor With LED Flexible Strip DC 12V 23 Inch PCAP Gaming Touch Monitor With LED Flexible Strip DC 12V 23 Inch PCAP Gaming Touch Monitor With LED Flexible Strip DC 12V 23 Inch PCAP Gaming Touch Monitor With LED Flexible Strip DC 12V
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-230P-006(KOT-0230U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 23" TFT-LCD
Active Area511.8*289(mm)Video InputVGA\DVI
Contrast Ratio (Typ.)1000:1Response Time5s
LED Display mode45 KindsLED Brightness Control10 Level
Touch Test≥50,000,000 TimesProduct NamePCAP Touch Monitor
WarrantyOne Year
High Light

PCAP Gaming Touch Monitor

,

23 Inch Gaming Touch Monitor

,

DC 12V PCAP Touch Monitor

Leave a Message
Product Description

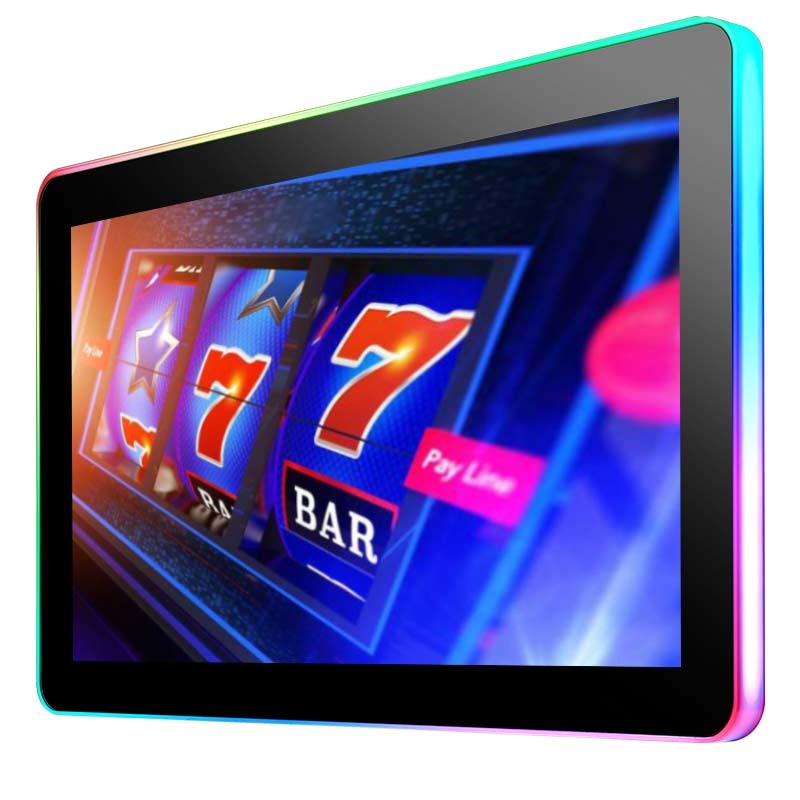

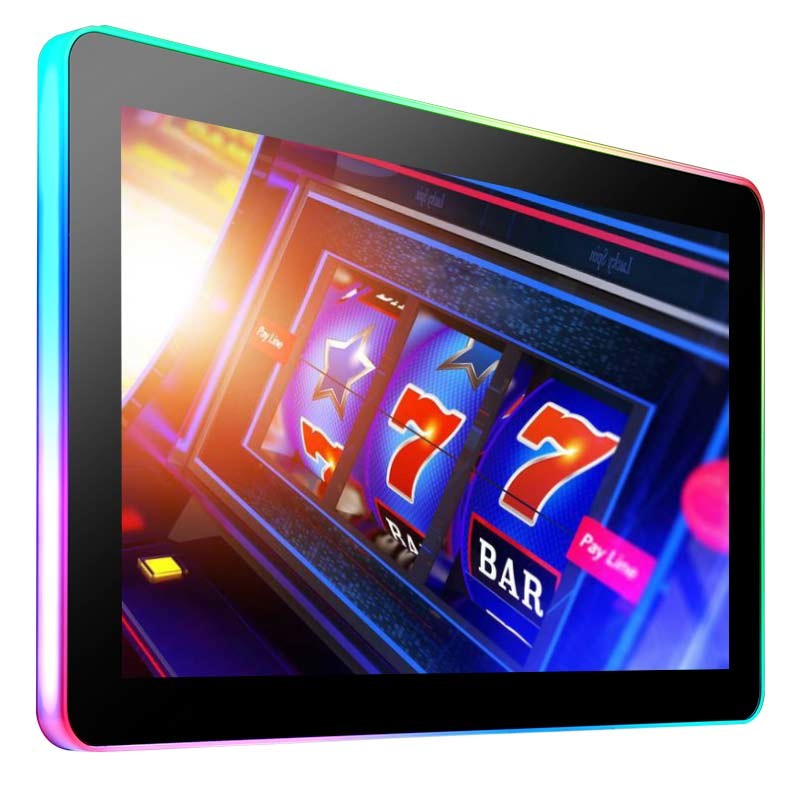

23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming


PCAP Touch Monitor Description

  • PCAP multi touch, high sensitive and fast response
  • 1920*1080 high resolution, high contrast ratio with full viewing angle
  • Anti-vandal, IP65 front side waterproof PCAP touch monitor
  • With LED flexible strip, fashionable and attractive
  • VGA & DVI interfaces,USB for touch
  • Multiple mounting options include VESA mount, horizontal and vertical brackets mount
  • Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
  • Other sizes can be offered (7’’- 43’’)




PCAP Touch Monitor Specifications



 Complete Machine

 Model No.

 KOT-0230U-CA4P (P/N:KOT-230P-006)

 Series

 OT

 Display Type

16:9 Ratio 23" TFT-LCD

 Active Area

511.8*289(mm)

 Monitor Dimensions (W*H*D)

569*348.2*45(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m2

With Touch Monitor

212cd/m2

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 LED display mode

45 kinds

 LED display speed

10 level

 LED brightness control

10 level

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

7.1 Kg (1pcs) / 18.35 Kg (2pcs in one package)

 Package dimensions

650*435*195 (mm) (2pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

23" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

513.80*291.00(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%



NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

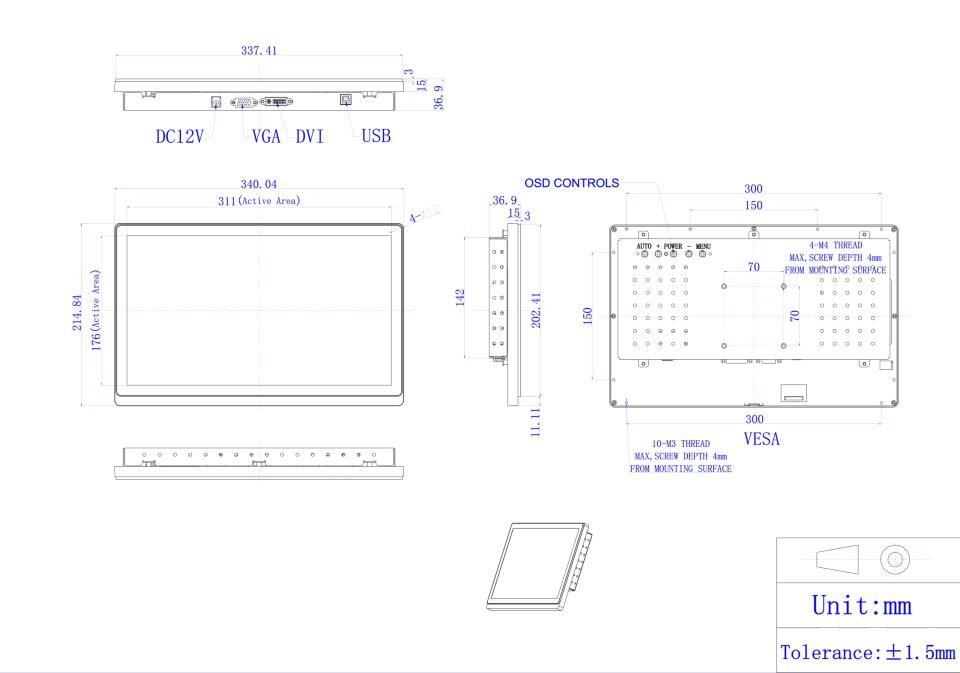

PCAP Touch Monitor Mechanical Dimensions


20221108095106




Our Advantages


  • Comprehensive product lines including PCAP/SAW/IR touch screen, Open frame touch monitors, all-in-one touch panel PCs, sheet metal cases.
  • Monthly capacity is more than 30,000 pcs

  • Products you received are inspected by rigorous reliability testing, such as burn-in test, anti-vibration test, high low temperature test to ensure quality.

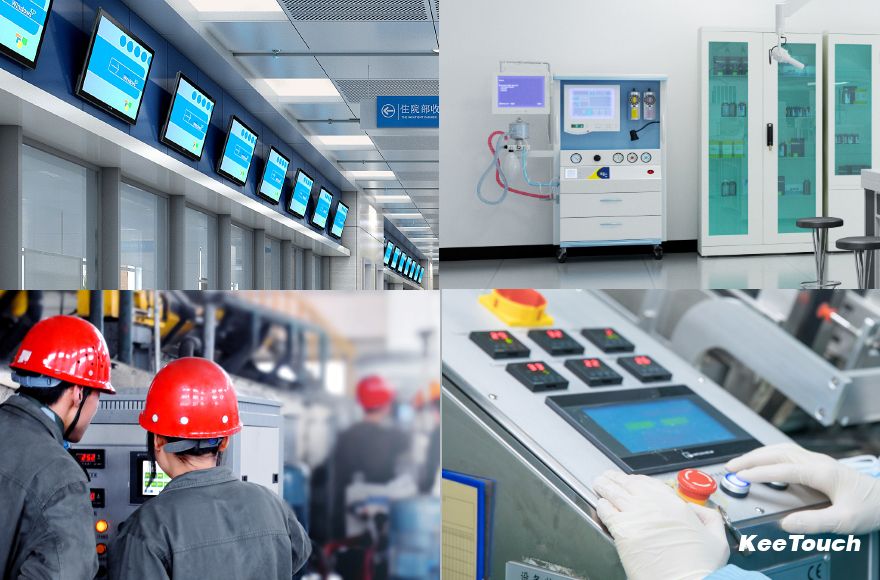

Applications


KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.


121




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
