Casino PCAP Touch Screen Monitors 23 Inch Side LED Lighting Gaming Monitors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSeries | OT , With LED Flexible Stripes | Display Type | 16:9 Ratio 23” Active Matrix TFT-LCD |
---|---|---|---|
Support Colors | 16.7M | Video Input | VGA\DVI\HDMI |
Horizontal(left/right) | 89°/89° | Vertical(up/down) | 89°/89° |
Storage Temp. | -20~60°C | MTBF | 30,000 Hours |
Product Name | PCAP Touch Monitor | Warranty | One Year |

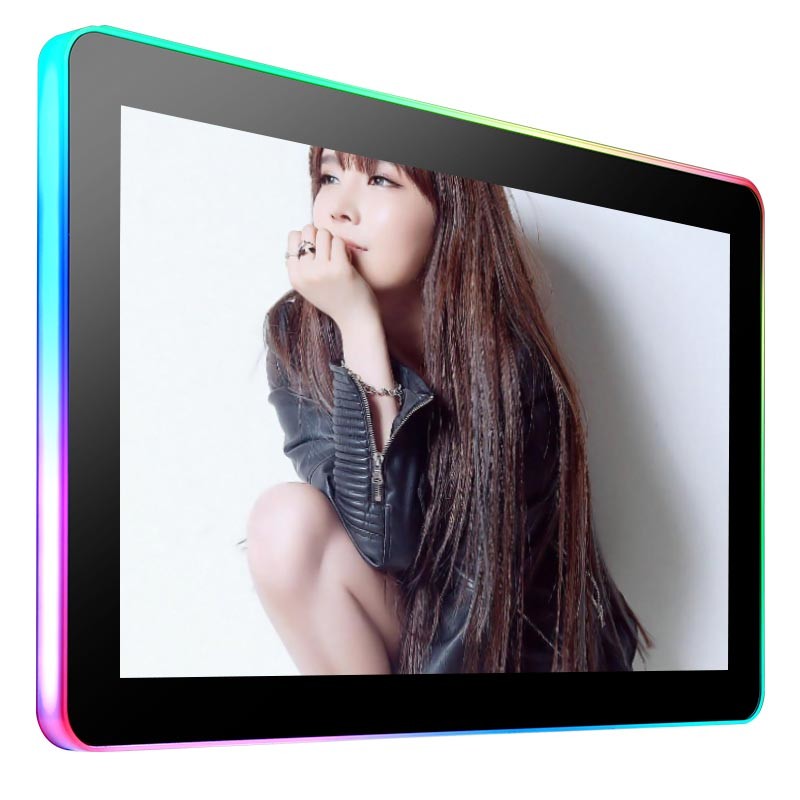

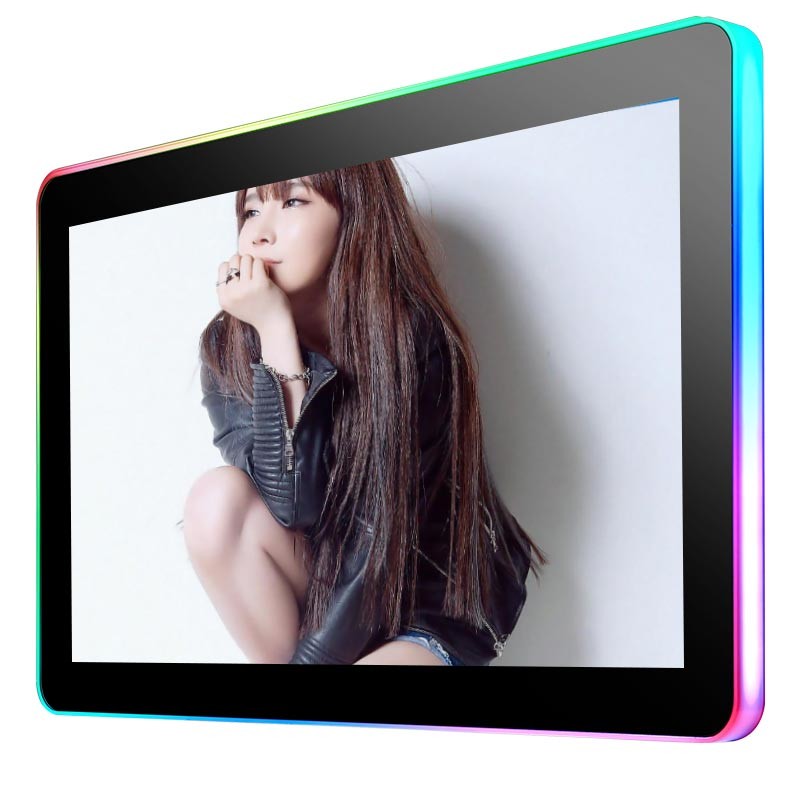

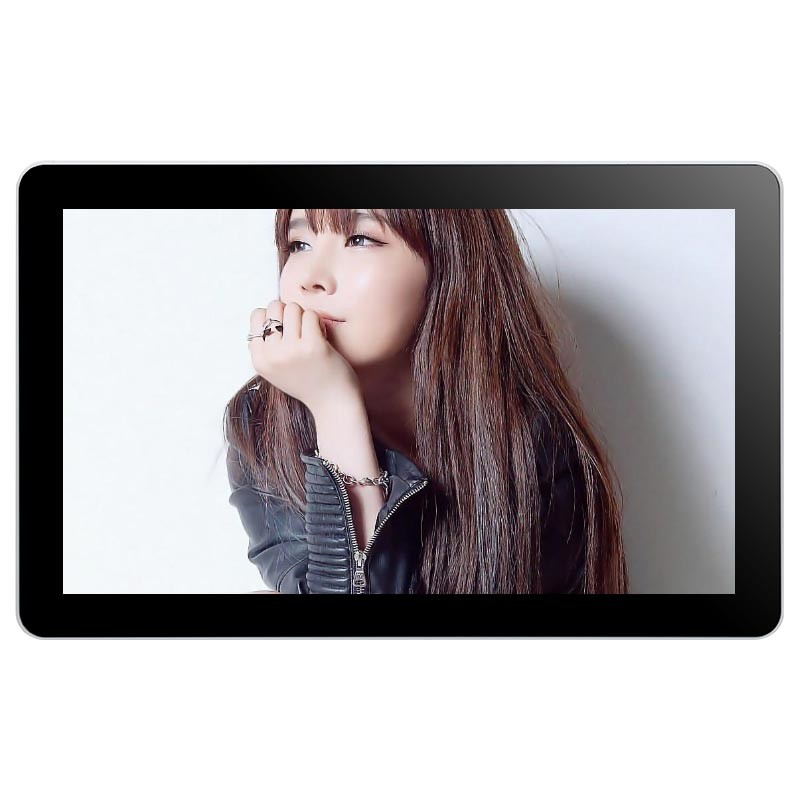

Casino PCAP Touch Screen Monitors 23 Inch Side LED Lighting Gaming Monitors
PCAP Touch Monitor Description
They are not only compatible with operating systems XP, WIN7, WIN8, WIN10, Linux, Android, but also support different gaming operating system, such as 3M, ELO, etc. With acrylic slim bezel and pure flat design, when they are embedded into gaming machine, they looks very eye-catching and beautiful. And this PCAP touch monitor also provide you with VGA, HDMI, DVI interfaces to connecting your PCs.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0230U-CA5P | |
Series | OT , With LED Flexible Stripes | |
Display Type | 16:9 Ratio 23” Active matrix TFT-LCD | |
Active Area | 511.8mm×289mm | |
Monitor Dimensions (W*H*D) | 588.2*365.4*45(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel (Brightness from 300~1000cd/m² can be customized) | 250 cd/m² |
With Projected Capacitive Touchscreen | 212 cd/m² | |
Response Time (Typ.) | 14ms | |
Viewing Angle(Typ.at CR>10)) | ||
Contrast Ratio (Typ.) | 1000:1 | |

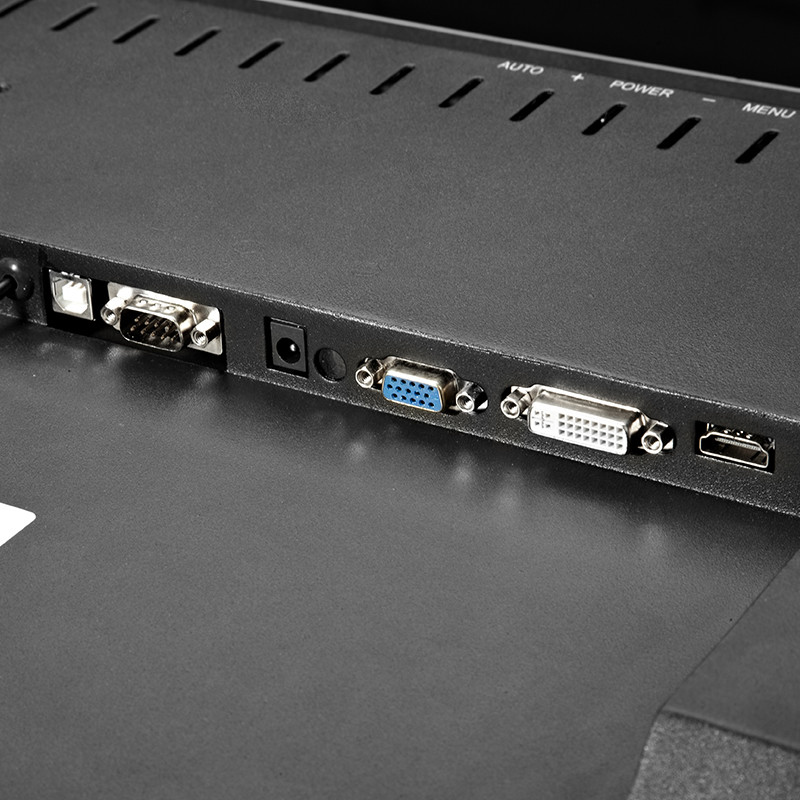

Video Input | VGA/HDMI/DVI | |
Frequency (H/V) | 30~80KHz / 60~75Hz | |
Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0~50°C |
Operating RH | 20%~80% | |
Storage Temp. | -20~60°C | |
Storage RH | 10%~90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight(N.W/G.W) | 7.5kg/17.3kg(2 pcs) | |
Package dimensions | 703×181×485(mm) (2pcs in one package) | |
Power Consumption | 37W(approximately, Includes touch display and LED lamp) | |
Mount Interface | VESA 100*300mm and 100*400mm | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year |
Touch Screen | |
Touch Type | 23” Projected Capacitive Touchscreen 10 Points Touch |
Touch Input | USB |
Response Time | ≤10ms |
Hardness | 7H |
Light Transmittance | ≥85% |
Active Area | 511.8mm×289mm |
Thickness | 4.3±0.2(mm) |
Touch Test | More than 50,000,000 touches in one location without failure |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

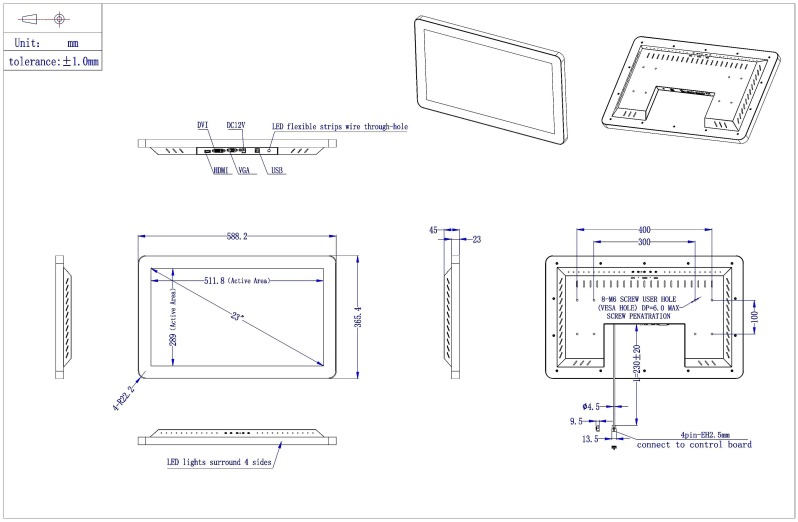

PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch PCAP touch monitors are well-suited in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
