PCAP Touch Screen Monitors 27 Inch TFT LCD Display 1920x1080 For Roulette
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Active Area | 597.6*336.15(mm) | Display Type | 16:9 Ratio 27" TFT-LCD |
|---|---|---|---|
| Support Colors | 16.7M | Video Input | VGA\DVI\HDMI |
| Brightness | 300cd/m² | Response Time (Typ.) | 12ms |
| Operating Temp. | 0～50°C | Operating RH | 20%～80% |
| Storage RH | 10%～90% | Product Name | PCAP Touch Monitor |
| Warranty | One Year |
Product Description

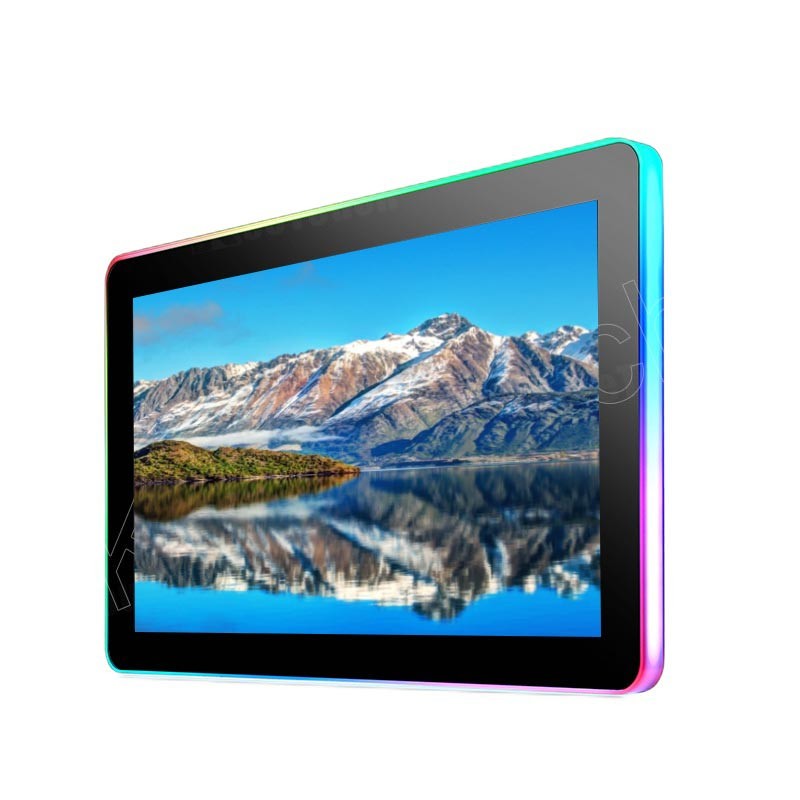

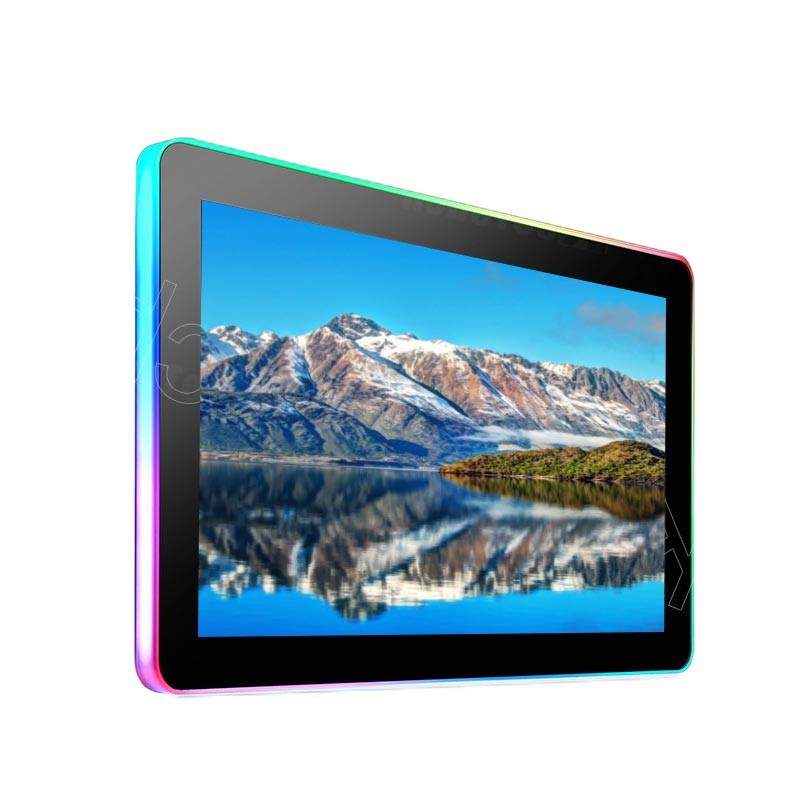

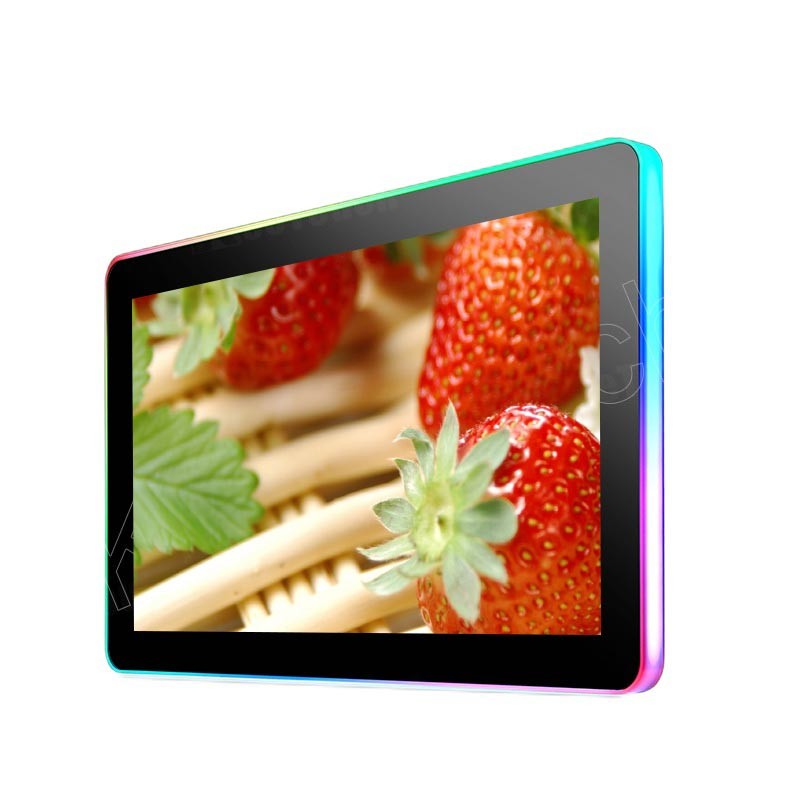

PCAP Touch Screen Monitors 27 Inch TFT LCD Display 1920x1080 For Roulette
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0270U-CA4P (P/N:KOT-270P-003) | |
Series | OT | |
Display Type | 16:9 Ratio 27" TFT-LCD | |
Active Area | 597.6*336.15(mm) | |
Monitor Dimensions (W*H*D) | 655.9*393.9*46.5(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
With Touch Monitor | 255cd/m2 | |
Response Time (Typ.) | 12ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 3000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 40～90KHz / 50～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
Weight（N.W/G.W） | 9.8Kg(1pcs)/21.3Kg(2pcs in one package) | |
Package dimensions | 770*513*198(mm)(2pcs in one package) | |
Power Consumption | Standby Power: 2W / Operating Power: ≤45W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 27”Projected Capacitive Touchscreen, | |
Touch System Interface | USB(or Serial port,one point) | |
Support System | 10 points in win7 | |
Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Why Choose Keetouch?
- With over 16 years' experience, Keetouch is a leading manufacturer of touch products and supplier of touch solution
- Comprehensive product lines including PCAP/SAW/IR touch screen, Open frame touch monitors, all-in-one touch panel PCs, sheet metal cases.
- Monthly capacity is more than 30,000 pcs
- Based your needs, product design, logo and function including anti-glare, privacy film, brightness, hardware and software can be customized
Applications

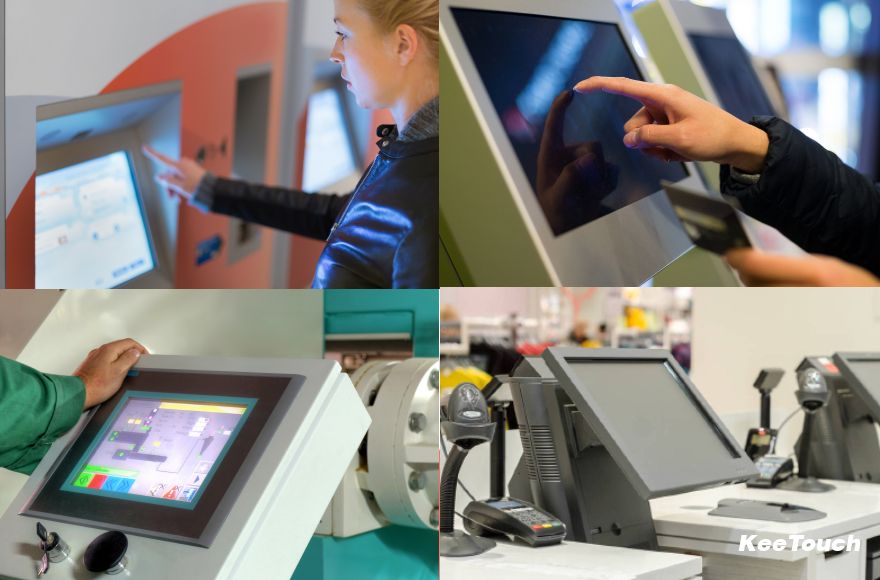

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
