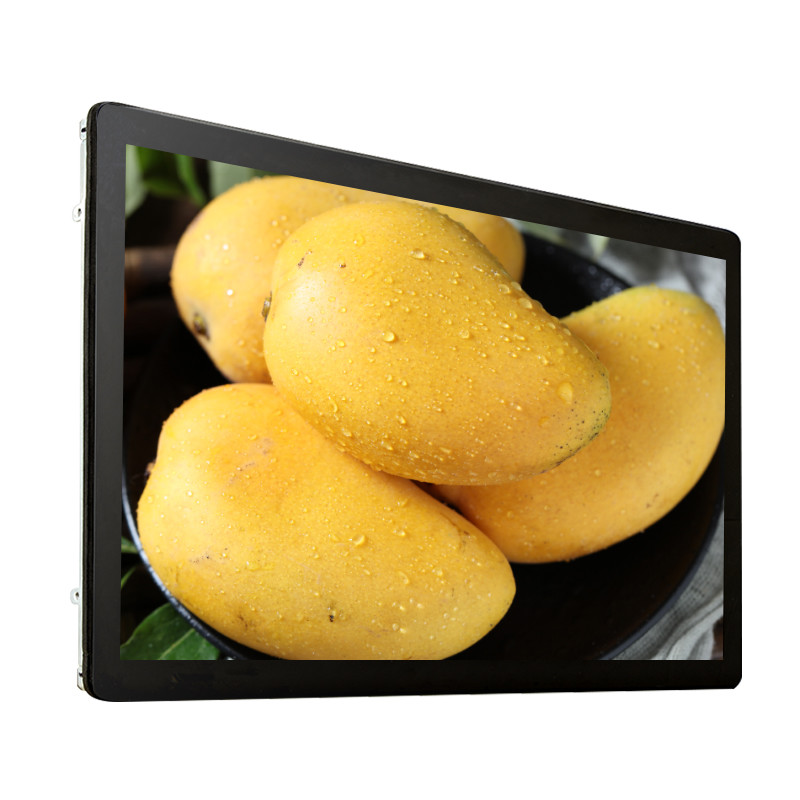

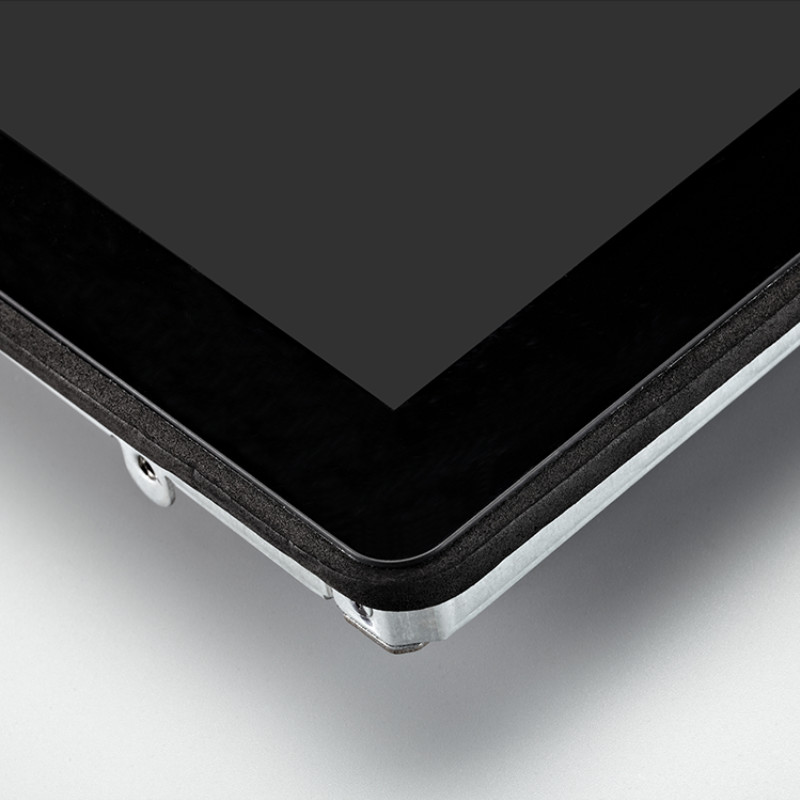

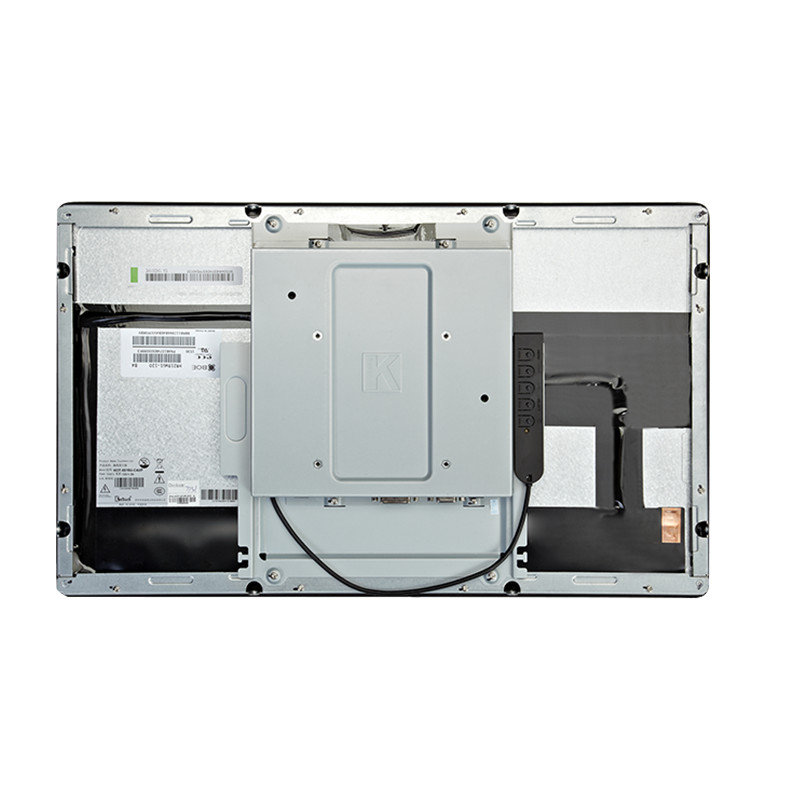

30-80KHz PCAP 19 Inch Touch Monitor IP65 Waterproof

30-80KHz PCAP 19 Inch Touch Monitor IP65 Waterproof
30-80KHz PCAP 19 Inch Touch Monitor IP65 Waterproof 30-80KHz PCAP 19 Inch Touch Monitor IP65 Waterproof 30-80KHz PCAP 19 Inch Touch Monitor IP65 Waterproof 30-80KHz PCAP 19 Inch Touch Monitor IP65 Waterproof 30-80KHz PCAP 19 Inch Touch Monitor IP65 Waterproof
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-190P-046(KOT-0190U-CA4P1610)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:10 Ratio 19" TFT-LCD
Suggested Resolution1440*900 @ 60HzOperating Temp.0～50°C
Operating RH20%～80%Storage Temp.-20～60°C
Storage RH10%～90%Frequency (H/V)30～80KHz / 60～75Hz
Product NamePCAP Touch MonitorHardness6H
High Light

IP65 19 Inch Touch Monitor

,

80KHz 19 Inch Touch Monitor

,

Waterproof PCAP Touch Monitor

Leave a Message
Product Description


19 Inch PCAP Touch Monitor IP65 WaterProof for kiosks


PCAP Touch Monitor Description



This PCAP touch monitor comes with IP65 water-proof and anti-vandal functions, delivering superior quality image with 10 points super touch experience. The VGA, DVI and USB interfaces for use and it supports various operating systems: XP, WIN7, WIN8,WIN10, Linux, Android. And other sizes (7’’-43’’) can be offered. With over 40 engineers, OEM and ODM services are welcomed.





PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0190U-CA4P1610 (P/N:KOT-190P-046)

 Series

 OT

 Display Type

16:10 Ratio 19" TFT-LCD

 Active Area

408.24*255.15(mm)

 Monitor Dimensions (W*H*D)

457.8*306.8*43(mm)

 Suggested Resolution

1440*900 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m2

With Touch Monitor

212cd/m2

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

5.4Kg(1pcs)/13.4Kg(2pcs in one package)

 Package dimensions

525*195*455(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤20W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

19" Riot capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

378.32*303.06(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




Applications


KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.



183




FAQ



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.



2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)



5. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
