23.8 Inch PCAP IP65 Waterproof Touch Monitor For Gaming
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | KeeTouch |
| Certification | FCC, CE, CB, RoHS, CCC, UL |
| Model Number | KOT-238P-005（KOT-0240U-CA2P） |
| Minimum Order Quantity | 1piece |
| Price | Negotiable |
Packaging Details | 2pcs in one package |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 10000 Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Voltage | DC 12V±5% | Input (line) Voltage | 100-240 VAC, 50-60 Hz |
|---|---|---|---|
| Operating Temp | 0～50°C | Storage Temp | -20～60°C |
| Contrast Ratio (Typ.) | 3000:1(Typ.)/1800:1(Min.) | LED Back Light Life (Typ.) | ≥30,000 Hours |
| Hardness | 6H | Video Input | VGA/DVI/HDMI |
| Light Transmittance | ≥85% | Product Name | PCAP Touch Monitor |
| High Light | 23.8 Inch Waterproof Touch Monitor,IP65 Waterproof Touch Monitor,PCAP Touch Monitor For Gaming | ||
Product Description

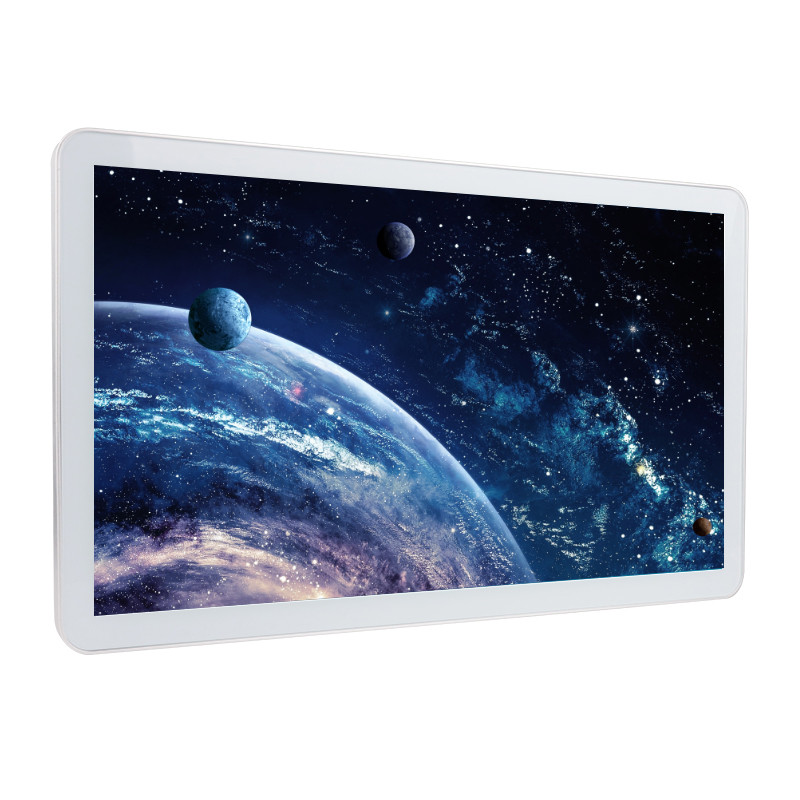

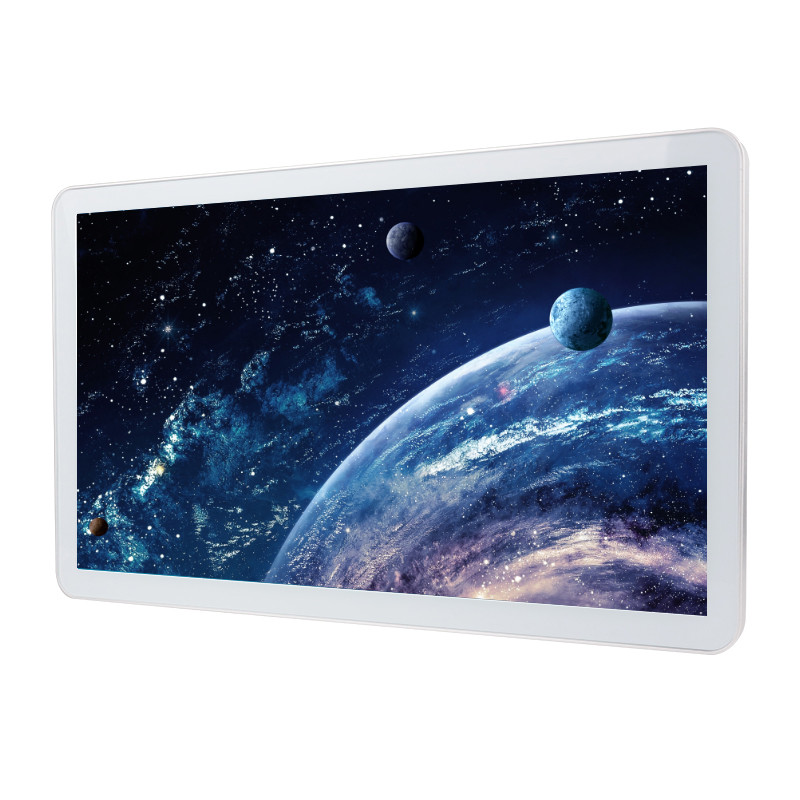

23.8 Inch PCAP Touch Monitor IP65 Waterproof For Gaming
This PCAP touch monitor comes with features as below: resolution 1920x1080, contrast ratio 3000:1 and broad viewing angle. With pure flat designed PCAP touch monitor, supporting IP65 front side waterproof. And the PCAP touch monitor has anti-vandal function as well. Both VGA , DVI and HDMI interfaces are matched for use, also the USB port for touch. And multiple mounting options are for your option, including VESA mount, horizontal and vertical brackets mount. And support operating system: XP, WIN7, WIN8, WIN10, Linux, Android.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0240U-CA2P (P/N:KOT-238P-005) | |
Series | OT | |
Display Type | 16:9 Ratio 23.8" TFT-LCD | |
Active Area | 527.04(H) x 296.46(V)(mm) | |
Monitor Dimensions (W*H*D) | 580.5*350*48.7(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 212cd/m² | |
Response Time (Typ.) | 12ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 89°/89°(Typ)/ 75°/75°(Min.) |
Vertical(up/down) | 89°/89°(Typ)/ 75°/75°(Min.) | |
Contrast Ratio (Typ.) | 3000:1(Typ.)/1800:1(Min.) | |

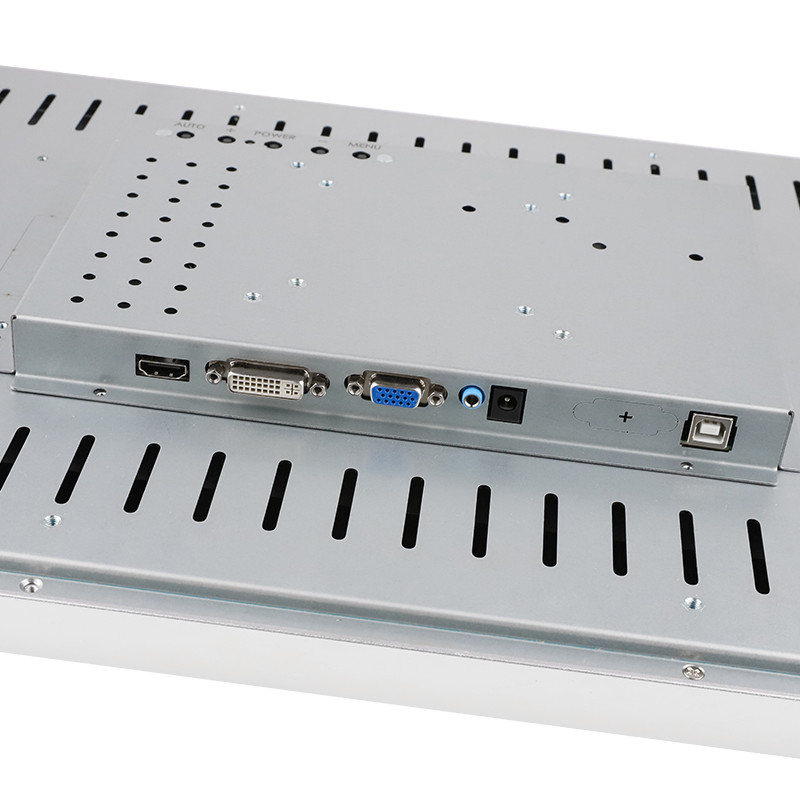

Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 6.5Kg(1pcs)/14.5Kg( 2 pcs in one package) | |
Package dimensions | 650*195*435(mm)( 2 pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |

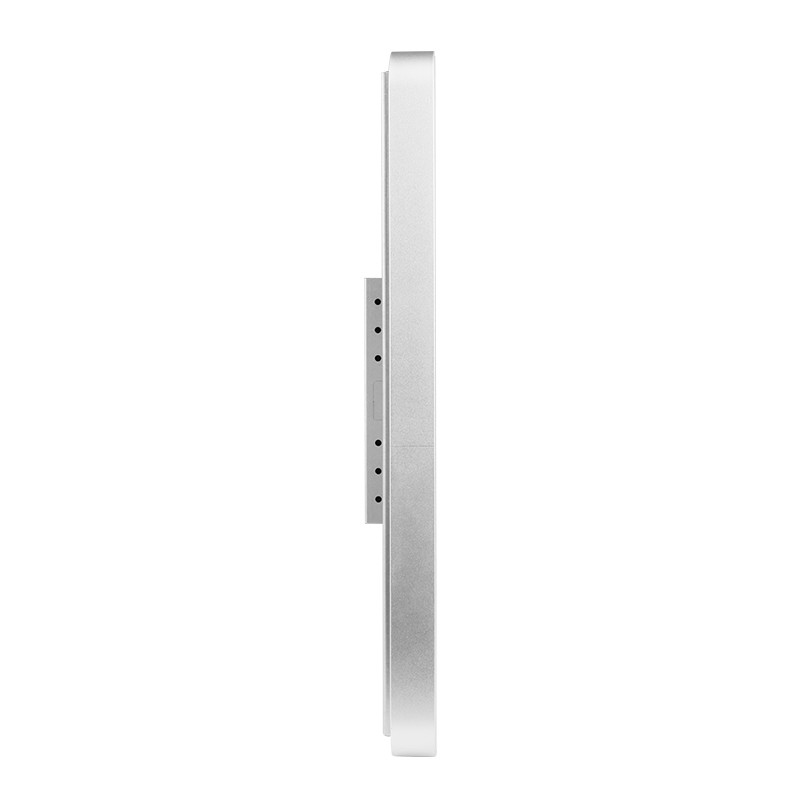

Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness,Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 23.8" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 528*297.5(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 次 |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1.We are a leading provider of industrial grade touch products and touch solutions, founded in 2006.
2.Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3.Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, FCC, CE, CB, UL, RoHS, etc. for the products.
4.Professional after-sales team at any time to provide services to customers.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
7. Do you give any discount for the PCAP Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
