VESA / Brackets Mount 14 Inch PCAP Touch Monitor Contrast Ratio 800:1
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | OT | LED Back Light Life (Typ.) | ≥30,000 Hours |
|---|---|---|---|
| Hardness | 6H | Video Input | VGA/DVI |
| Light Transmittance | ≥85% | Contrast Ratio (Typ.) | 800:1 |
| Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | Power Supply | Input (line) Voltage: 100-240 VAC, 50-60 Hz |
| Touch Test | ≥50,000,000 Times | Product Name | PCAP Touch Monitor |
| Warranty | One Year | ||
| High Light | VESA Mount PCAP Touch Monitor,240 VAC PCAP Touch Monitor,Brackets Mount PCAP Touch Monitor | ||
Product Description

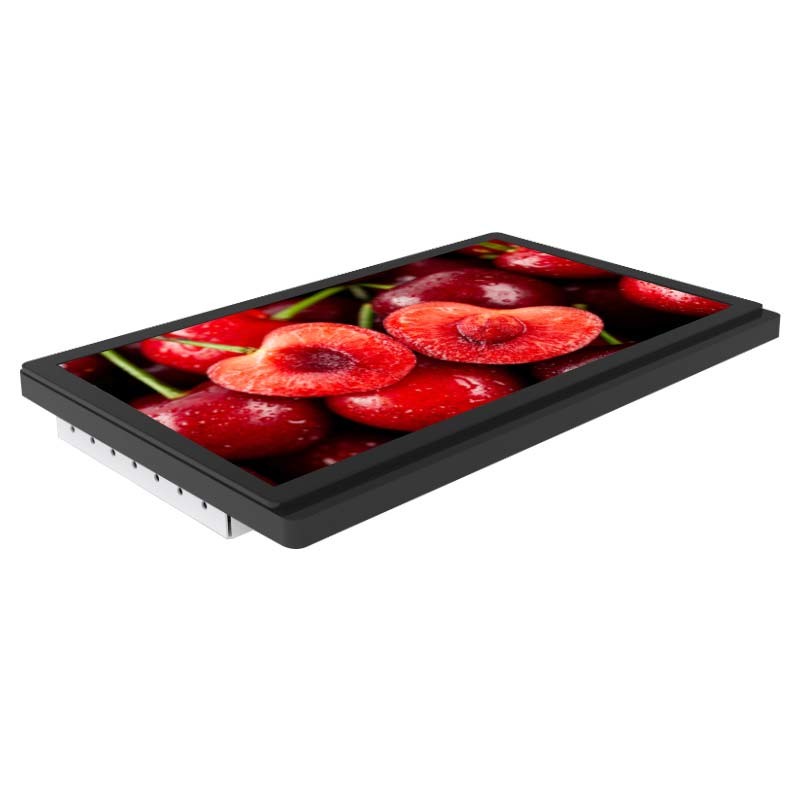

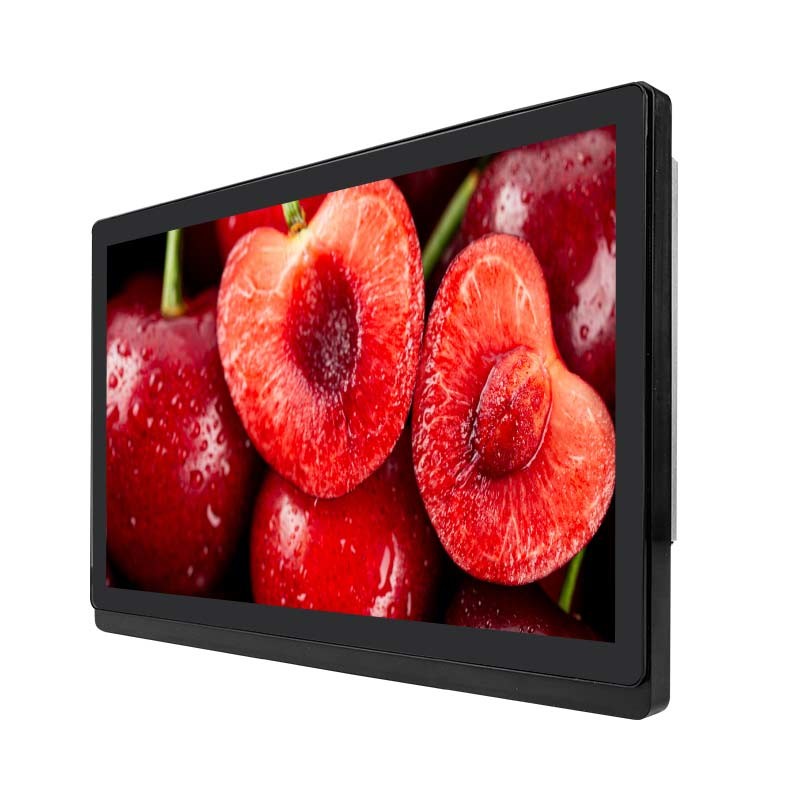

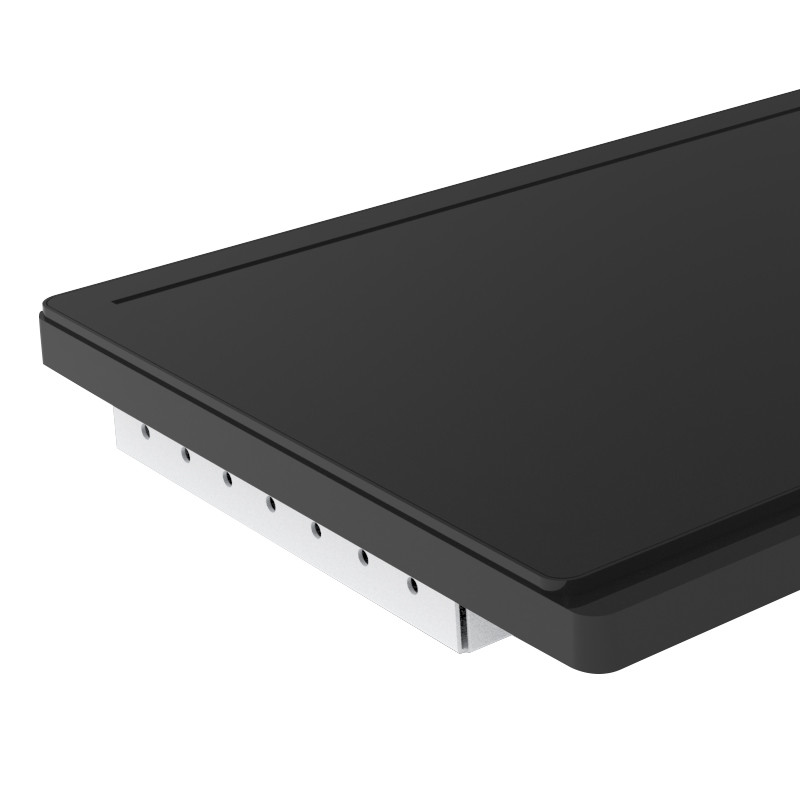

14 Inch PCAP Touch Monitor Contrast Ratio 800:1 VESA Mount Brackets Mount

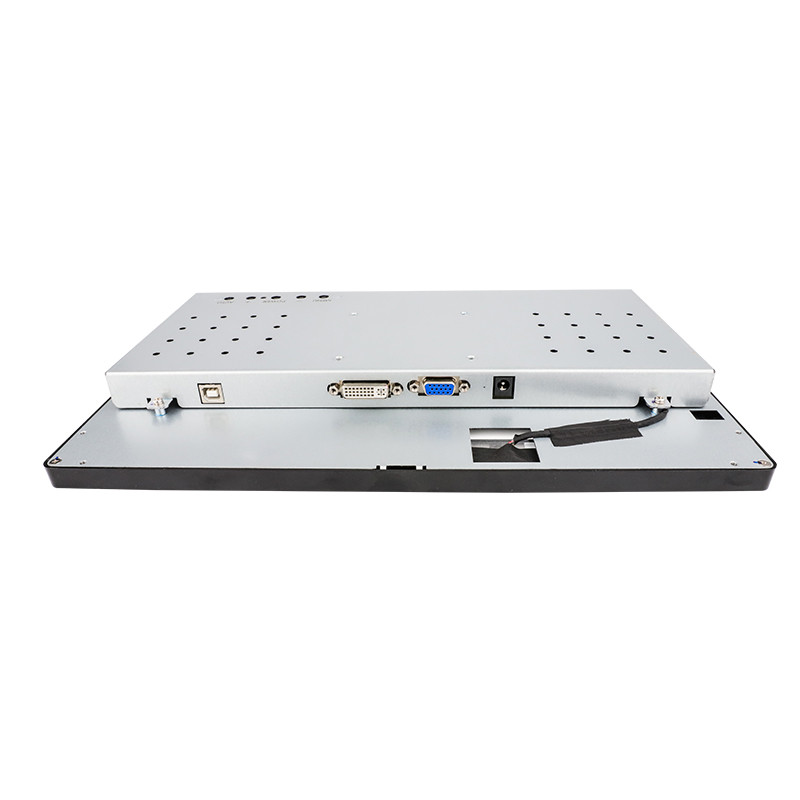

Our PCAP touch monitors come with below features: resolution 1920*1080, contrast ratio 800:1, with high quality image. Pure flat designed PCAP touch monitors is IP65 surface water-proofing. The PCAP touch monitors are durable even in harsh environment. Both VGA and DVI interfaces are provided for use, also the USB for touch. Multiple mounting options are available, including VESA mount, horizontal and vertical brackets mount.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0140U-CA4P (P/N:KOT-140P-002) | |
Series | OT | |
Display Type | 16:9 Ratio 14" TFT-LCD | |
Active Area | 311*176(mm) | |
Monitor Dimensions (W*H*D) | 340*214.84*36.9(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 200cd/m² |
With Touch Monitor | 170cd/m² | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 80°/80° |
Vertical(up/down) | 80°/80° | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
Mount Interface | Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness,Contrast Ratio, Auto-adjust,Phase,Clock,H/V Location,Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 14" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8 |
Active Area | 309.31*173.99(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of PCAP Touch Monitor
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What are the shipping ways?
We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
7. Do you give any discount for the PCAP Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
