Pure Flat Design 14 Inch PCAP Touch Monitor 1920x1080 For ATM

Pure Flat Design 14 Inch PCAP Touch Monitor 1920x1080 For ATM
Pure Flat Design 14 Inch PCAP Touch Monitor 1920x1080 For ATM Pure Flat Design 14 Inch PCAP Touch Monitor 1920x1080 For ATM Pure Flat Design 14 Inch PCAP Touch Monitor 1920x1080 For ATM Pure Flat Design 14 Inch PCAP Touch Monitor 1920x1080 For ATM Pure Flat Design 14 Inch PCAP Touch Monitor 1920x1080 For ATM
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, CCC
Model NumberKOT-140P-002(KOT-0140U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable

Packaging

Details

Carton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 14" TFT-LCD
Active Area311*176(mm)Video InputVGA/DVI
Support SystemXP,WIN7,WIN8,WIN10,Linux,AndroidContrast Ratio (Typ.)800:1
Frequency (H/V)37.8～68.4KHz / 50～76HzPower SupplyDisplay Voltage: DC 12V±5%
Touch Test≥50,000,000 TimesProduct NamePCAP Touch Monitor
WarrantyOne Year

High Light

Pure Flat PCAP Touch Monitor

,

14 Inch PCAP Touch Monitor

,

ATM PCAP Touch Monitor

Leave a Message
Product Description

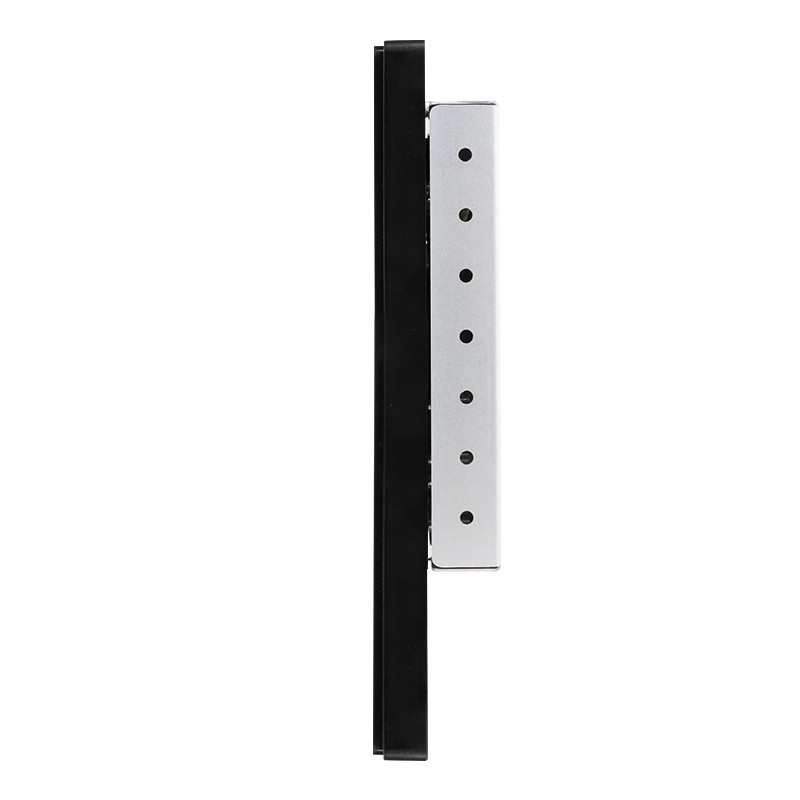

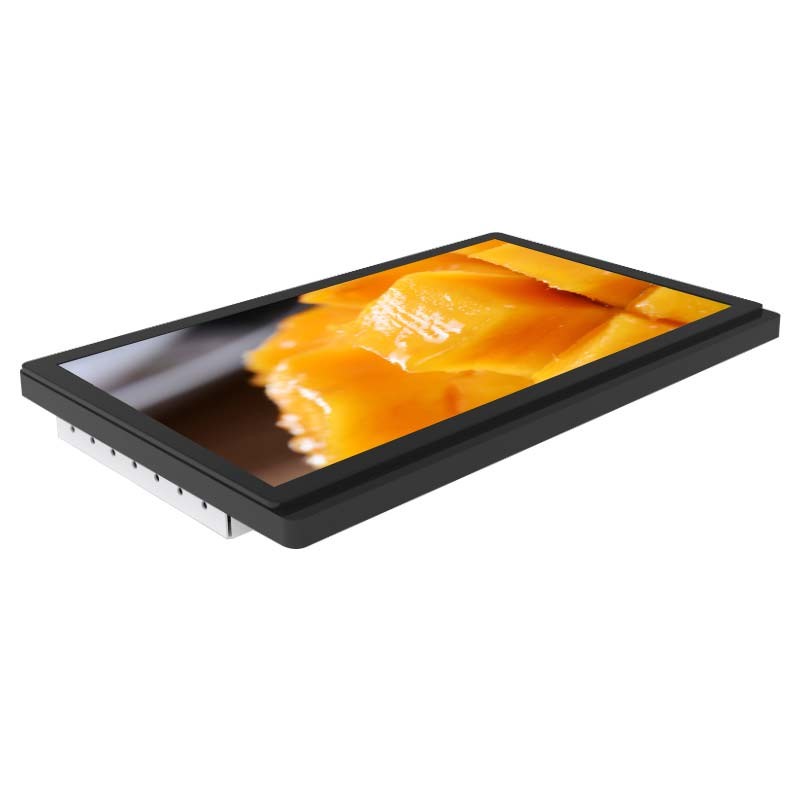

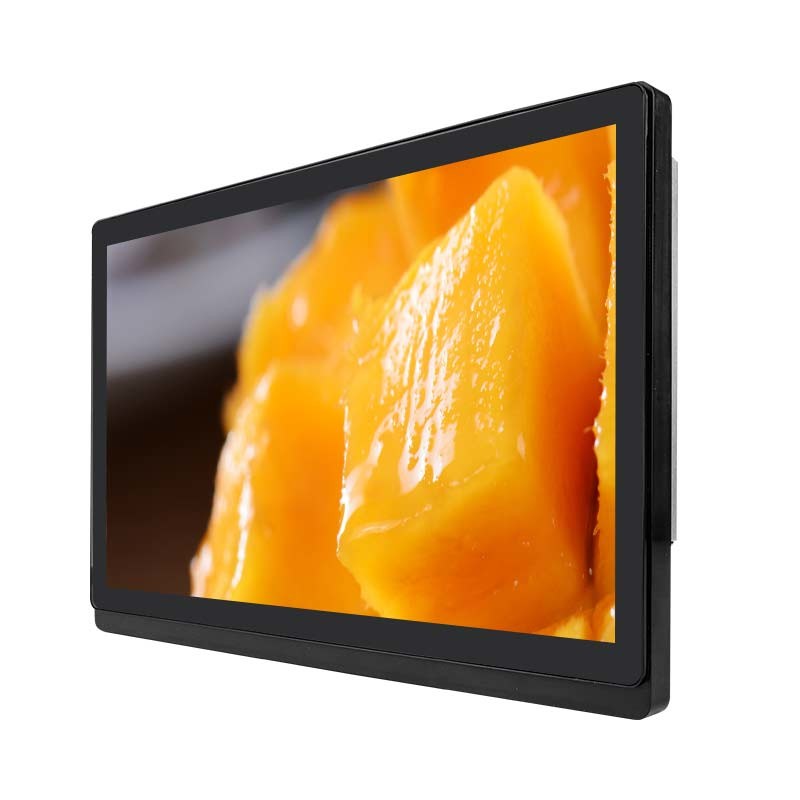

14 Inch PCAP Touch Monitor 1920x1080 Pure Flat Design For ATM


This PCAP touch monitor is IP65 front frame waterproof, delivers excellent image quality and comes with 10 points smooth touch experience. With pure flat design, the PCAP touch monitor is very sleek and fashionable. We can provide you with a variety of VGA, DVI and USB cables for use and it supports operating systems: XP, WIN7, WIN8. Per your request, other sizes can be offered.




PCAP Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0140U-CA4P (P/N:KOT-140P-002)

 Series

 OT

 Display Type

16:9 Ratio 14"  TFT-LCD

 Active Area

311*176(mm)

 Monitor Dimensions (W*H*D)

 340*214.84*36.9(mm)

 Suggested Resolution

1920*1080 @  60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

200cd/m²

With Touch Monitor

170cd/m²

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 80°/80°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

800:1

 Video Input

VGA/DVI

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

 Mount Interface

 Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness,Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages,

Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

14" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Support System

XP,WIN7,WIN8

Active Area

309.31*173.99(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%



NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Why choose us?

1.Keetouch founded 2006, is a leading provider of industrial grade touch products and touch solutions.

2.Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.

3.Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.

Professional after-sales team at any time to provide services to customers.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)


5. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
