Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount

Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount
Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, CCC
Model NumberKOT-215P-011(KOT-0215U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable

Packaging

Details

1pc in one package
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 21.5" TFT-LCD
Active Area478*270(mm)Video InputVGA/DVI/HDMI
Brightness250cd/m²Support SystemXP,WIN7,WIN8,WIN10,Linux,Android
Response Time5msThickness4.3±0.2(mm)
Input VoltageDC 5V±5%Product NamePCAP Touch Monitor
WarrantyOne Year

Leave a Message
Product Description

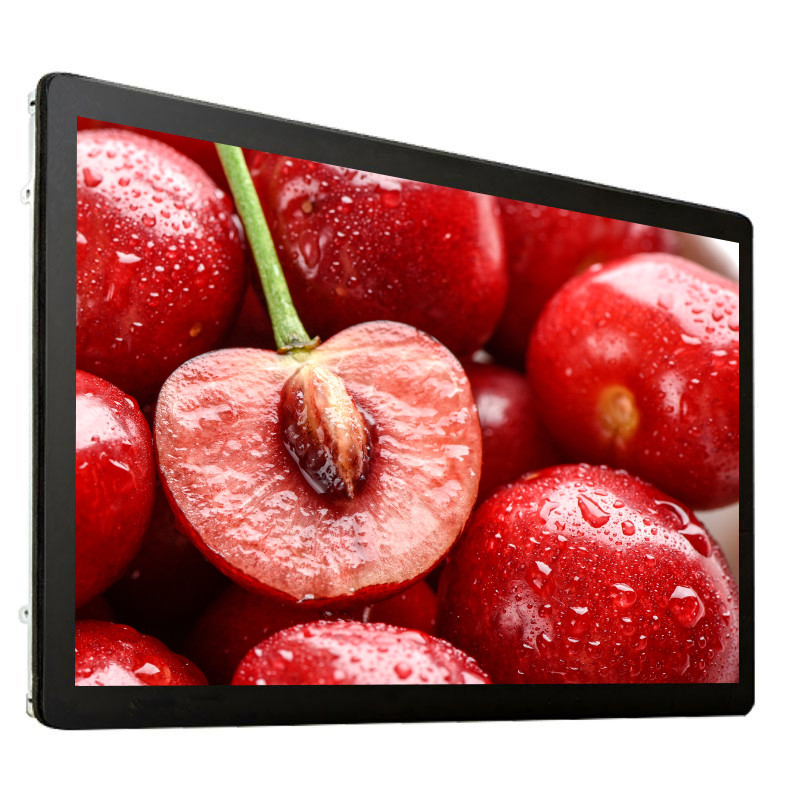

Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount


Our PCAP Touch Screen Monitors are with features resolution 1920*1080, brightness 250cd/m², high contrast ratio, and a wide operating temperature. Models are perfect use in industrial environments. They can be used with gloved hands and support 10 points accurate touch. VESA mount, brackets mount, built-in installation are available for your machine.





PCAP Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0215U-CA4P (P/N:KOT-215P-011)

 Series

 OT

 Display Type

16:9 Ratio 21.5" TFT-LCD

 Active Area

478*270(mm)

 Monitor Dimensions (W*H*D)

516*311*40(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR10)

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI/HDMI

 Frequency (H/V)

3080KHz / 6075Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

050°C

Operating RH

20%80%

Storage Temp.

-2060°C

Storage RH

10%90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 WeightN.W/G.W

5.6Kg(1pcs)/7.7Kg(1pcs in one package)

 Package dimensions

610*410*145(mm)(1pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness,Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages,

Function, Reset

 Agency approvals

  CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

21.5" Capacitive touch screens

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

477.6*269(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%



NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Advantages of PCAP Touch Monitor

1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.




FAQ

1. What's your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


2. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


3. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


4. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.


5. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.
