Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen Vending Machine

Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen Vending Machine
Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen Vending Machine Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen Vending Machine Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen Vending Machine Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen Vending Machine Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen Vending Machine
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, CCC
Model NumberKOT-215P-011(KOT-0215U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable

Packaging

Details

1pc in one package
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 21.5" TFT-LCD
Active Area478*270(mm)Video InputVGA/DVI/HDMI
Brightness250cd/m²Support SystemXP,WIN7,WIN8,WIN10,Linux,Android
Response Time5msThickness4.3±0.2(mm)
Input VoltageDC 5V±5%Product NamePCAP Touch Monitor
WarrantyOne Year

Leave a Message
Product Description


Tempered Glass 21.5 Inch PCAP Touch Monitor For Touch Screen Vending Machine


This PCAP touch monitor is IP65 front panel waterproof and delivers excellent image quality, 10 points smooth touch experience. We can provide you with a variety of VGA, DVI, HDMI, USB cables and power adapter for monitors, also set up operating systems: XP, WIN7, WIN8, WIN10, Linux, Android to be compatible with your device.




PCAP Touch Monitor Specification

 Complete Machine

 Model No.

 KOT-0215U-CA4P (P/N:KOT-215P-011)

 Series

 OT

 Display Type

16:9 Ratio 21.5" TFT-LCD

 Active Area

478*270(mm)

 Monitor Dimensions (W*H*D)

516*311*40(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI/HDMI

 Frequency (H/V)

30~80KHz / 60~75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight(N.W/G.W)

5.6Kg(1pcs)/7.7Kg(1pcs in one package)

 Package dimensions

610*410*145(mm)(1pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase,Clock, H/V Location, Languages,

Function, Reset

 Regular Warranty

1 year


Touch Screen

Touch Type

21.5" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

477.6*269(mm)

Thickness

4.3±0.2(mm)

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




Applications

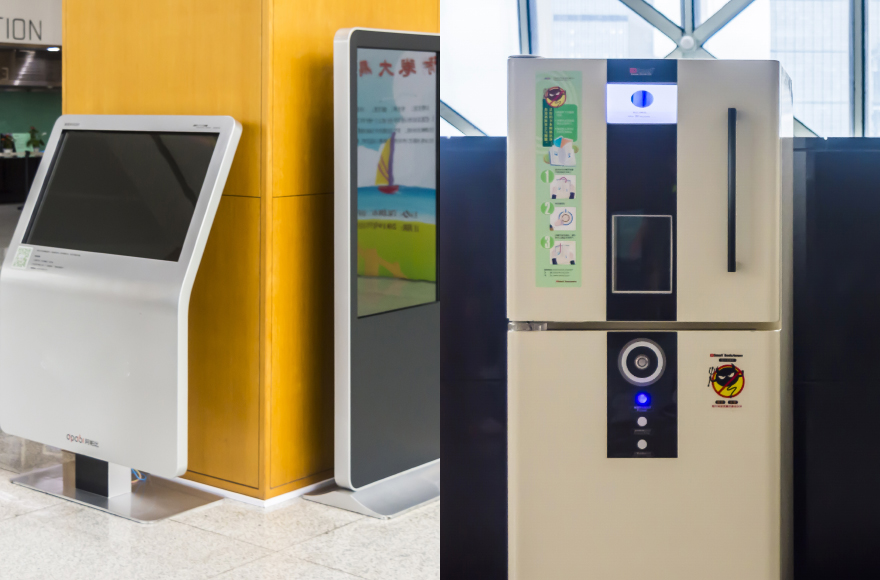

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






Why choose us?

1.We are a leading provider of industrial grade touch products and touch solutions, founded in 2006, located in Shenzhen, China.

2.Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.

3.Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.

4.Professional after-sales team at any time to provide services to customers.





FAQ

1. What's your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


2. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


3. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


4. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.


5. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.
