Industrial Open Frame LCD Monitors 15.6 Inch PCAP Touch Screen Monitor For Kiosk
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Active Area | 344.16*193.59(mm) | Contrast Ratio (Typ.) | 500:1 |
|---|---|---|---|
| Video Input | VGA/DVI | Brightness | 400cd/m² |
| Support Colors | 16.2M | Response Time | 8s |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | Regular Warranty | 1 Year |
| Product Name | PCAP Touch Monitor |
Product Description

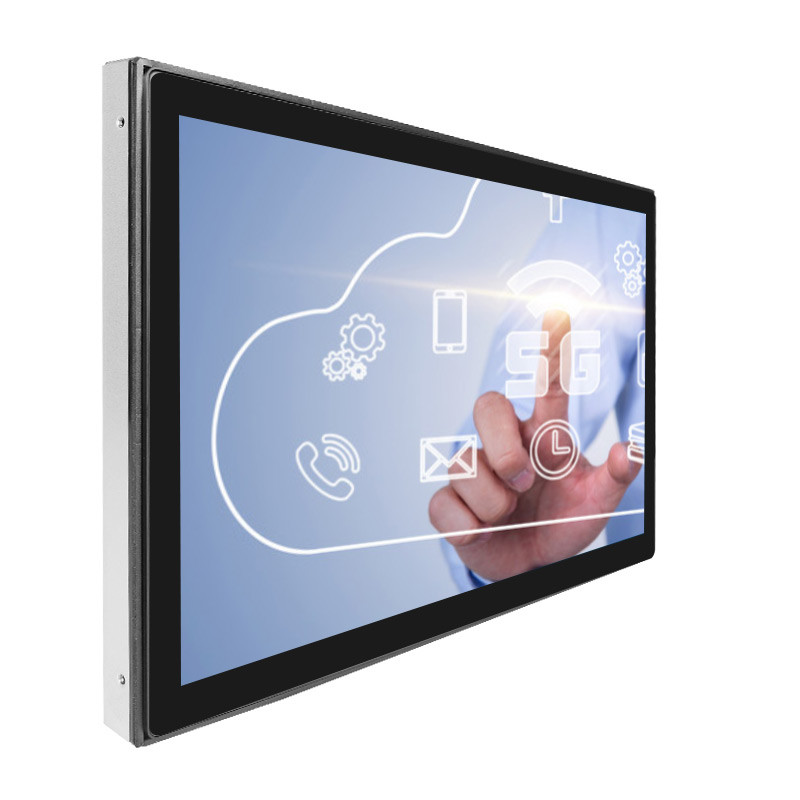

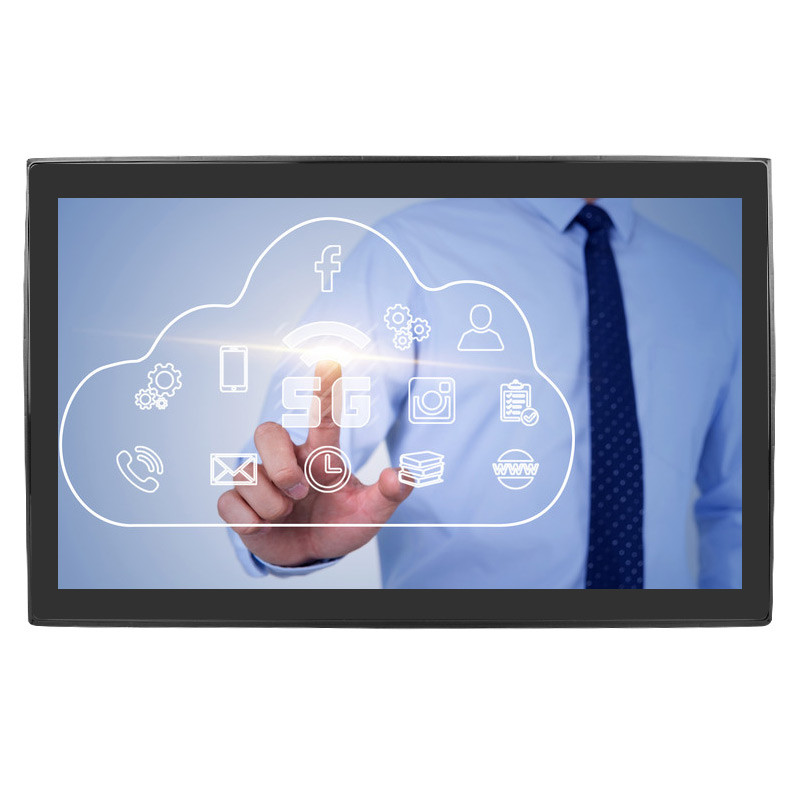

Industrial Open Frame LCD Monitors 15.6 Inch PCAP Touch Screen Monitor For Kiosk
Our PCAP touch monitors are designed with slim pure flat structure, which is easily installed into self-service kiosk and looks modern sleek. When working in harsh environment, they are sealed against dirt, dust and liquid. It’s optional for VGA, HDMI for computer connecting and USB for touch.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0156U-CA4P (P/N:KOT-156P-006) | |
Series | OT | |
Display Type | 16:9 Ratio 15.6" TFT-LCD | |
Active Area | 344.16*193.59(mm) | |
Monitor Dimensions (W*H*D) | 382*234*46.1(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 400cd/m² |
With Touch Monitor | 340cd/m² | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 70°/70° |
Vertical(up/down) | 60°/60° | |
Contrast Ratio (Typ.) | 500:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -10～70°C |
Operating RH | 8%～95% | |
Storage Temp. | -20～70°C | |
Storage RH | 5%～95% | |
MTBF | ≥50,000 Hours | |
Weight（N.W/G.W） | 2.7Kg(1pcs)/6.5Kg (2pcs in one package) | |
Package dimensions | 468*150*323(mm) (2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |

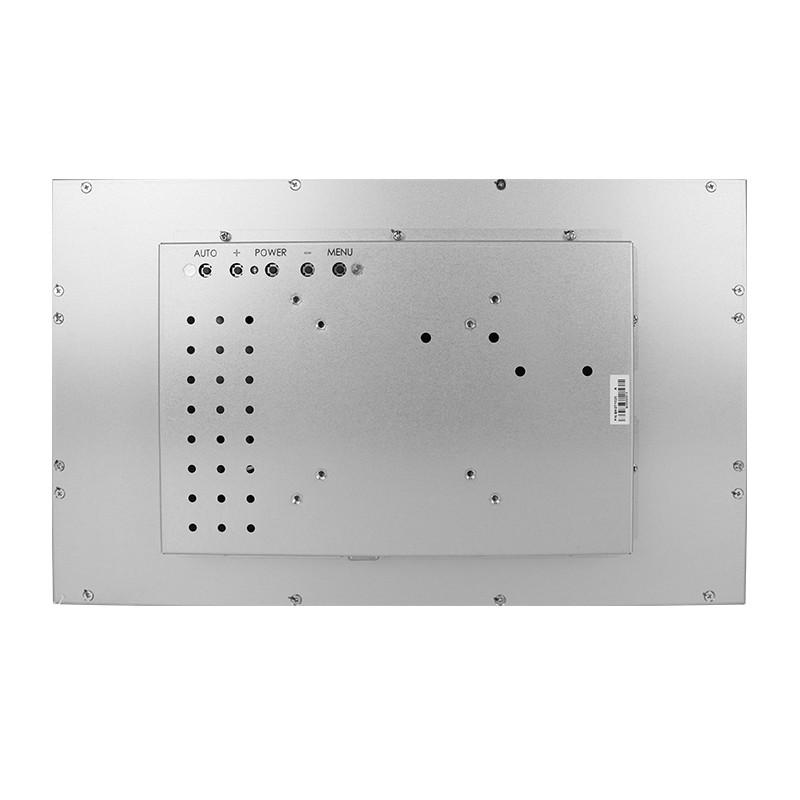

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15.6" Riot Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 7H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 345.2*194.5(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications
Our PCAP touch Monitors are well-suited in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1) Rigorous Reliability Testing: Products you received are inspected by rigorous reliability testing, such as burn-in test, anti-vibration test, high low temperature test to ensure quality.
2) ODM, OEM Service: We have more than 50+ R&D skilled engineers to make your requirement reality.
3) Local Service: Established branches office all over the world, such as Germany, Russia, Brazil, india, etc, to provide local service.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What's your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What are the shipping ways for the PCAP touch monitors?
We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
5. What package do you provide?
Our package usually is carton.
