Industrial 21.5 Inch PCAP Touch Screen Monitor Full HD 1080P

Industrial 21.5 Inch PCAP Touch Screen Monitor Full HD 1080P
Industrial 21.5 Inch PCAP Touch Screen Monitor Full HD 1080P Industrial 21.5 Inch PCAP Touch Screen Monitor Full HD 1080P Industrial 21.5 Inch PCAP Touch Screen Monitor Full HD 1080P Industrial 21.5 Inch PCAP Touch Screen Monitor Full HD 1080P
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, CCC
Model NumberKOT-0215U-CA4P(KOT-215P-014)
Minimum Order Quantity1piece
PriceNegotiable

Packaging

Details

2pcs in one package
Delivery Time7-15 work days
Payment TermsT/T, L/C, Paypal, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Touch Type21.5" Capacitive Touch ScreensSuggested Resolution1920*1080 @ 60Hz
Brightness250cd/m²Video InputVGA/DVI
Touch InputUSBContrast Ratio (Typ.)1000:1
Thickness4.3±0.3(mm)Viewing Angle(85/ 85, 80/ 80
Touch Test≥50,000,000 TimesResolution1920*1080 @ 60Hz
WarrantyOne Year

Leave a Message
Product Description

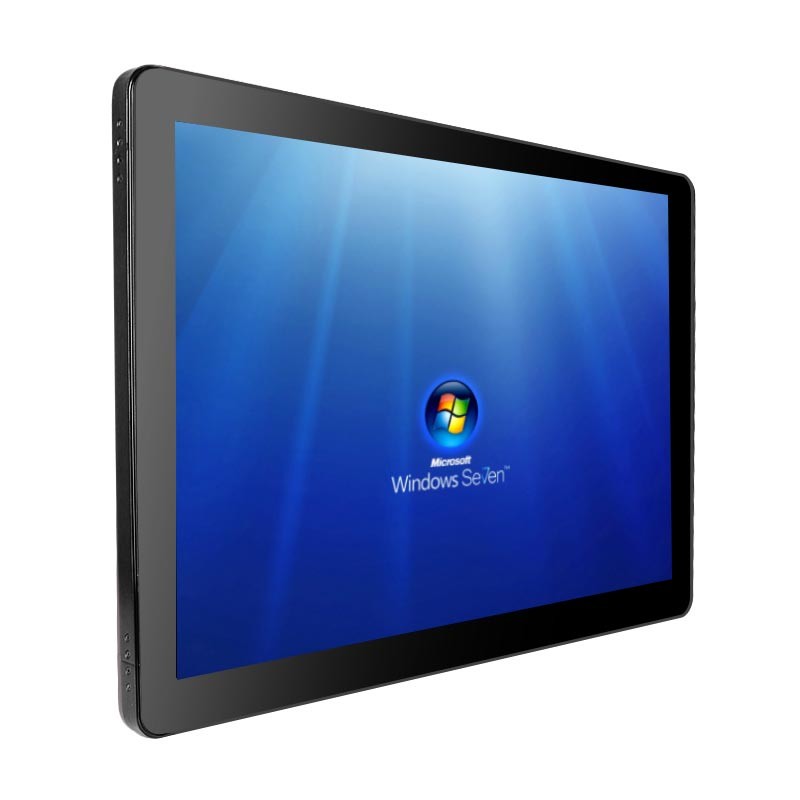

Industrial 21.5 Inch PCAP Touch Screen Monitor Full HD 1080P


PCAP Touch Monitor Main Features

21.5'' PCAP touch monitor belongs to industrial grade, bring customer high quality touch experience

Come with Full HD 1080P Touch Panel

IP65 front surface waterproof function

Come with DVI, VGA and USB Input

Mount Interface: VESA 75mm and 100mm, mount bracket, horizontal or vertical mount

Support system: XP,WIN7,WIN8,WIN10, Linux, Android

Other sizes are available (7 inch- 43 inch)

Passed the CCC, UL, FCC, CE, CB, RoHS certificates




PCAP Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0215U-CA4P(P/N:KOT-215P-015)

 Series

 OT

 Display Type

16:9 Ratio 21.5" TFT-LCD

 Active Area

476.6*269(mm)

 Monitor Dimensions (W*H*D)

512.1*307.3*47(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGADVI

 Frequency (H/V)

37.9~80KHz / 60~75Hz

 Power Supply

Type: External brick

Display voltage:DC 12V±5%

Input (line) voltage:100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

≥30,000 Hours

 Weight(N.W/G.W)

5.6Kg(1pcs)/13.4Kg(2pcs in one   package)

 Package dimensions

605*400*195(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness,Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages,

Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

21.5" Capacitive touch screens

Touch  input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

479.04*270.51(mm)

Thickness

4.3±0.3(mm)

Touch Test

≥50,000,000 times


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Advantages of PCAP Touch Monitor

1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5.Ease of cleaning: The smooth glass surface of a PCAP touch monitor makes it easy to clean and maintain.




FAQ

1. What's your MOQ?

Our minimum order quantity is 1pc only.


2. What package do you provide?

Our package usually is carton.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


5. Payment methods and payment terms?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)


6. What are the shipping ways?

DHL, UPS, FedEx, TNT, EMS, Air Freight, Sea Freight
