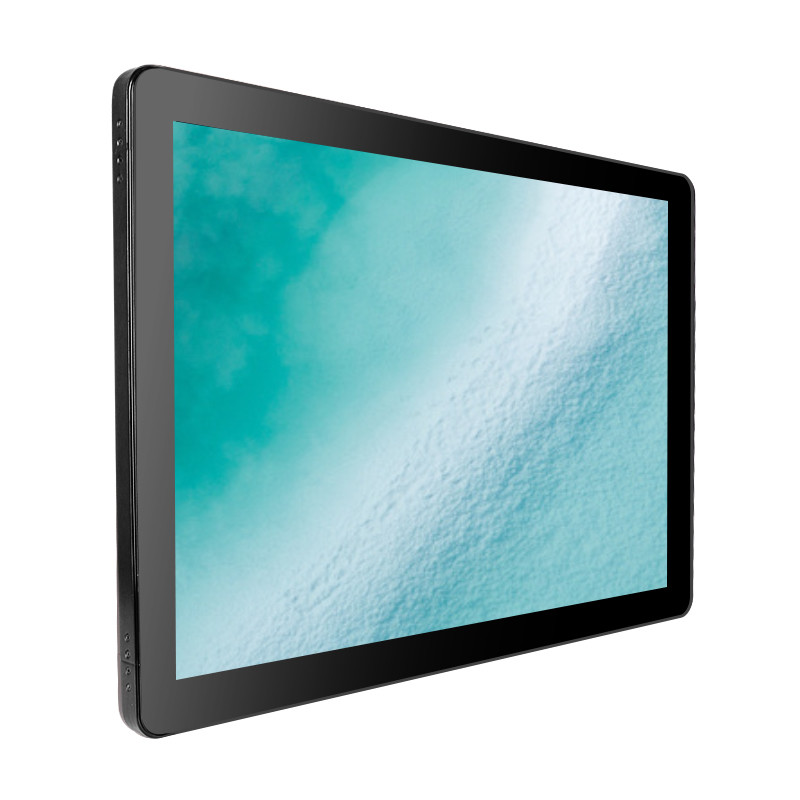

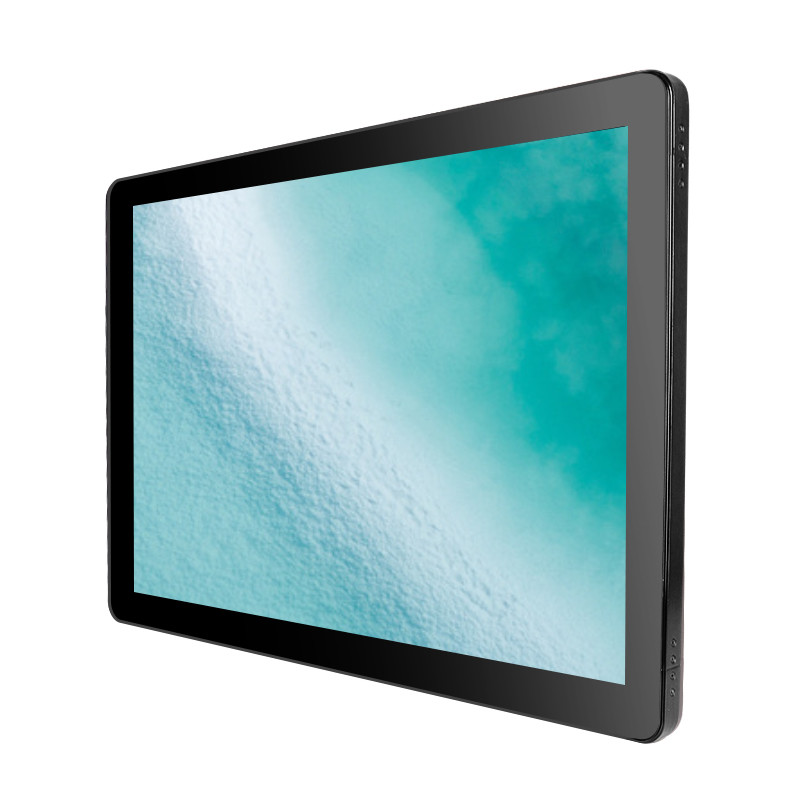

PCAP 21.5 Inch Touch Monitor 16:9 Ratio IP65 Waterproof
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | KeeTouch |
| Certification | FCC, CE, CB, RoHS, ETL, CCC |
| Model Number | KOT-215P-015(KOT-0215U-CA4P) |
| Minimum Order Quantity | 1piece |
| Price | Negotiable |
Packaging Details | 2pcs in one package |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 10000 Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Suggested Resolution | 1920*1080 @ 60Hz | Video Input | VGA/DVI |
|---|---|---|---|
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android | Hardness | 6H |
| Light Transmittance | ≥85% | Product Name | PCAP Touch Monitor |
| Warranty | One Year | ||
| High Light | IP65 Waterproof 21.5 Inch Touch Monitor,Dust Proof 21.5 Inch Touch Monitor,PCAP Touch Monitor 21.5 Inch | ||
Product Description
21.5 Inch PCAP Touch Monitor 16:9 Ratio IP65 Waterproof
This 21.5 inch PCAP touch monitor comes with high durability, accuracy and multi-touch support, which can be used normally in harsh environments. It is dust-proof, vandal-proof and IP65 front side waterproof PCAP touch monitor, durable in harsh environment. Multiple mounting options include VESA mount, horizontal and vertical brackets mount. Other sizes (7''- 43'') are optional.
Capacitive touch screen principle Specifications
Complete Machine | ||
Model No. | KOT-0215U-CA4P(P/N:KOT-215P-015) | |
Series | OT | |
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 476.6*269(mm) | |
Monitor Dimensions (W*H*D) | 512.1*307.3*47(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 212cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |

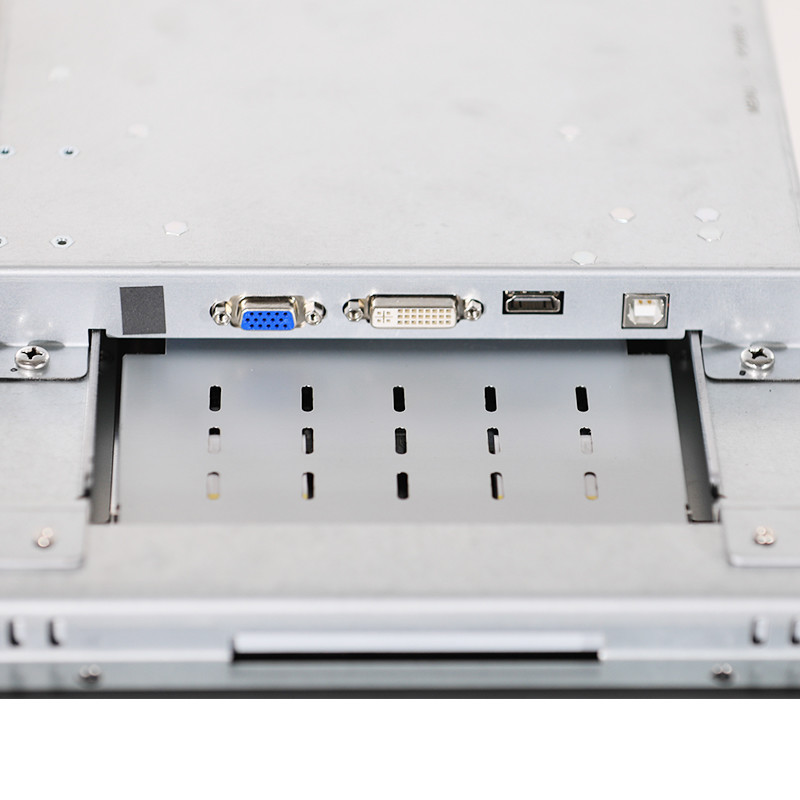

Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 5.6Kg(1pcs)/13.4Kg(2pcs in one package) | |
Package dimensions | 605*400*195(mm)(2pcs in one package) | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness,Contrast Ratio, Auto-adjust, Phase,Clock, H/V Location,Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 21.5" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 479.04*270.51(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
PCAP touch screen Applications
PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations,etc.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ
1. What package do you provide for the PCAP touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the PCAP touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
