19 Inch PCAP Touch Monitor Anti Vandal For Smart Lockers

19 Inch PCAP Touch Monitor Anti Vandal For Smart Lockers
19 Inch PCAP Touch Monitor Anti Vandal For Smart Lockers 19 Inch PCAP Touch Monitor Anti Vandal For Smart Lockers 19 Inch PCAP Touch Monitor Anti Vandal For Smart Lockers 19 Inch PCAP Touch Monitor Anti Vandal For Smart Lockers 19 Inch PCAP Touch Monitor Anti Vandal For Smart Lockers
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, CCC
Model NumberKOT-0190U-CA2P169
Minimum Order Quantity1piece
PriceNegotiable

Packaging

Details

2pcs in one package
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:10 Ratio 19" TFT-LCD
Suggested Resolution1440*900 @ 60HzSupport Colors16.7M
Response Time(Typ.)5msContrast Ratio(Typ.)1000:1
Video InputVGA And DVISupport SystemXP,WIN7,WIN8,WIN10,Linux,Android
Product NamePCAP Touch MonitorFrequency(H/V)30～80KHz / 60～75Hz
High Light

PCAP 19 Inch Touch Monitor

,

Anti Vandal 19 Inch Touch Monitor

,

CB Certified PCAP Touch Monitor

Leave a Message
Product Description

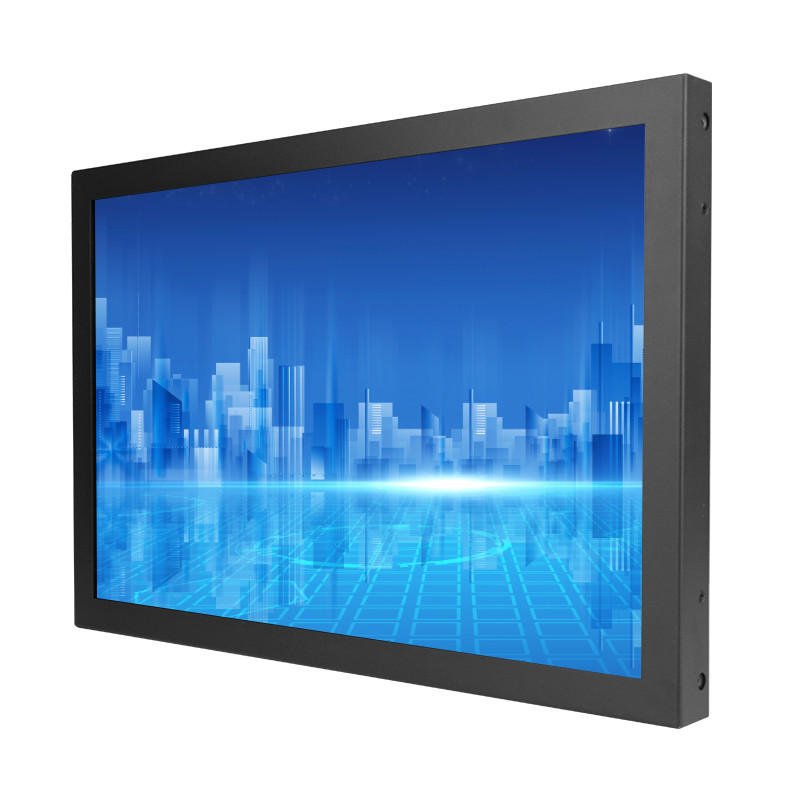

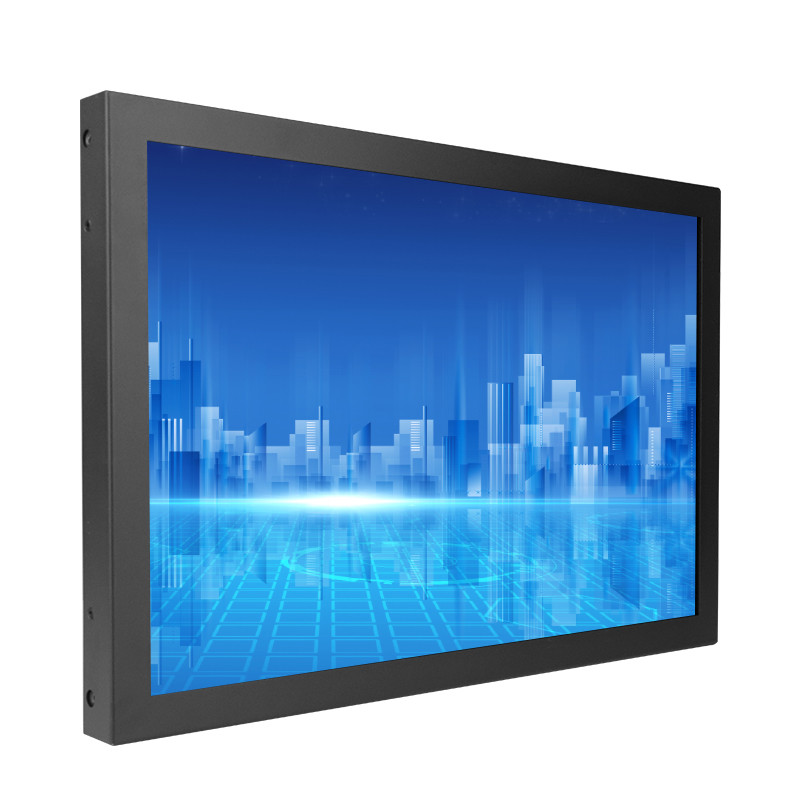

19 Inch PCAP Touch Monitor Anti-Vandal For Smart Lockers


This PCAP touch monitor has features as below: 1440x900 high resolution, 1000:1 contrast ratio, wide viewing angle and 16:10 ratio display. It also comes with anti-vandal and water-proof function. VGA and DVI interfaces are provided for use, USB port for touch. It supports various operation system: XP, WIN7, WIN8, WIN10, Linux, Android. Per customer’s individual requirements, customized services are available.




PCAP Touch Monitor Specifications

Model No.

  KOT-0190U-CA2P169

Series

  OT, Wide-screen, LED backlight

Display Type

16:10 Ratio 19" Active matrix TFT-LCD

Display Active Area

408.5×255. 5(mm)

Touch Monitor Dimensions

   Width: 452mm
   Height: 299mm
   Depth: 51mm

Suggested Resolution

1440×900 @ 60Hz

Support Colors

16.7M

Brightness(Typ.)

Pure LCD Panel (Brightness from 300~1000nits can be

customized   )

250cd/m²

With Projected Capacitive Touchscreen

212cd/m²

Response Time(Typ.)

5ms

Viewing Angle

 (Typ.at   CR>10)

  Horizontal(left/right): 85°/85°

  Vertical(up/down): 80°/80°

Contrast Ratio(Typ.)

1000:1

Video Input

VGA and DVI

Frequency(H/V)

30～80KHz / 60～75Hz

Power Supply

Type: External brick
   Input (line) voltage:100-240 VAC, 50-60 Hz

Environment

Operation Temp.

 0～50°C

Storage Temp.

-20～60°C

Operation RH

20%～80%

Storage RH

10%～90%

MTBF

30,000 Hours

LED Back Light Life(Typ.)

30,000 Hours

Weight(N.W/G.W)

5.5Kg(1pcs) / 13.75Kg (2pcs in one package)

Package Dimension

525×220×380(mm)(2pcs in one package)

Power Consumption

20W

Standby Power Consumption

0.95W

Mount Interface

1)VESA 75mm and 100mm

  2)Mount bracket, horizontal or vertical

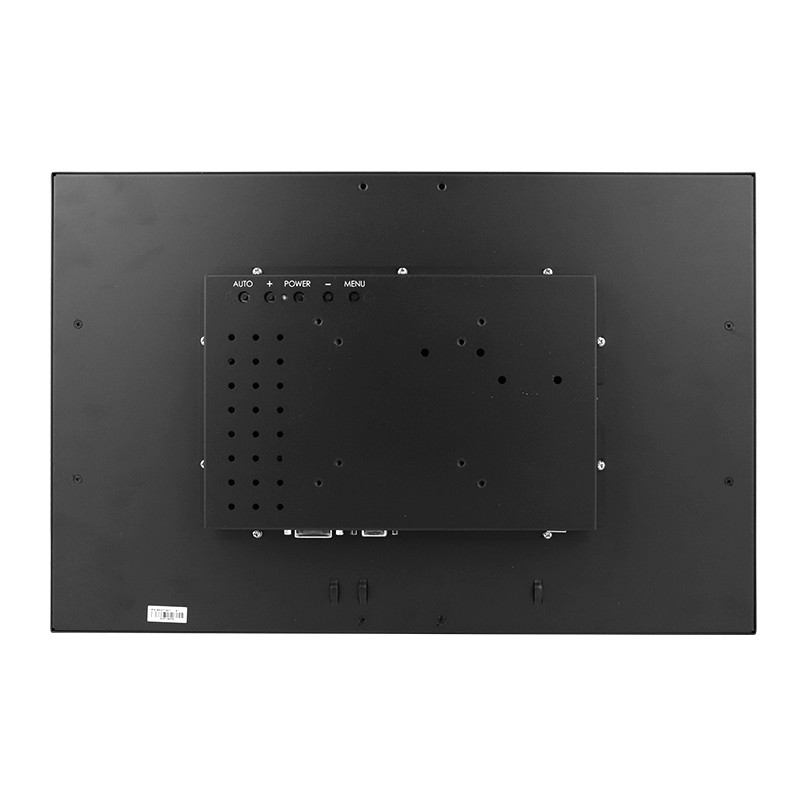

OSD Control

Buttons

 AUTO,+,POWER,-,MENU

  Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

Touch Screen Type

 19" Projected Capacitive touch sceen, 10 points in win7

Touch System Interface

USB / RS-232（optional）

Touch Response time

10ms

Agency Approval

  CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 Year




Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Why choose us?

1.We are a leading provider of industrial grade touch products and touch solutions, founded in 2006, located in Shenzhen, China.

2.Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer's individual requirements.

3.Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, RoHS, etc. for the products.

4.Professional after-sales team at any time to provide services to customers.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


3. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


4. What package do you provide?

Our package usually is carton.


5. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


6. What are the shipping ways?

We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


7. Do you give any discount for the PCAP Touch Monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
