1440x900 High Resolution 19 Inch PCAP Touch Monitor For Kiosks

1440x900 High Resolution 19 Inch PCAP Touch Monitor For Kiosks
1440x900 High Resolution 19 Inch PCAP Touch Monitor For Kiosks 1440x900 High Resolution 19 Inch PCAP Touch Monitor For Kiosks 1440x900 High Resolution 19 Inch PCAP Touch Monitor For Kiosks 1440x900 High Resolution 19 Inch PCAP Touch Monitor For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, CCC
Model NumberKOT-0190U-CA2P169
Minimum Order Quantity1piece
PriceNegotiable

Packaging

Details

2pcs in one package
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:10 Ratio 19" TFT-LCD
Suggested Resolution1440*900 @ 60HzOperating Temp.0～50°C
Operating RH20%～80%Storage Temp.-20～60°C
Touch Test≥50,000,000 TimesSupport SystemXP,WIN7,WIN8,WIN10,Linux,Android
Product NamePCAP Touch MonitorLight Transmittance85%
High Light

WIN7 PCAP Touch Monitor

,

High Resolution PCAP Touch Monitor

,

1440x900 19 Inch Touch Monitor

Leave a Message
Product Description


19 Inch PCAP Touch Monitor 1440×900 High Resolution For Kiosks


With PCAP touch screen, fast response and high sensitivity

High resolution, high contrast ratio, wide viewing angle with super image quality

Anti-vandal and front side waterproof PCAP touch monitor

VGA&DVI interfaces, USB port for touch

Multiple mounting options include VESA mount, horizontal and vertical brackets mount

Operation system: XP, WIN7, WIN8, WIN10, Linux, Android

With 40+ engineers, OEM and ODM are supported and other sizes (7''- 43'') can be offered.




PCAP Touch Monitor Specifications

Model No.

  KOT-0190U-CA2P169

Series

  OT, Wide-screen , LED backlight

Display Type

16:10 Ratio 19" Active matrix TFT-LCD

Display Active Area

408.5×255. 5(mm)

Touch Monitor Dimensions

   Width:  452mm
   Height: 299mm
   Depth:  51mm

Suggested Resolution

1440×900 @ 60Hz

Support Colors

16.7M

Brightness(Typ.)

Pure LCD Panel (Brightness from 300~1000nits can be

customized   )

250cd/m²

With Projected Capacitive Touchscreen

212cd/m²

Response Time(Typ.)

5ms

Viewing Angle

 (Typ.at   CR>10)

  Horizontal(left/right): 85°/85°

  Vertical(up/down): 80°/80°

Contrast Ratio(Typ.)

1000:1

Video Input

VGA and DVI

Frequency(H/V)

30～80KHz / 60～75Hz

Power Supply

Type: External brick
   Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

Operation   Temp.

0～50°C

Storage   Temp.

-20～60°C

Operation RH

20%～80%

Storage RH

10%～90%

MTBF

30,000 Hours

LED Back Light Life(Typ.)

30,000 Hours

Weight(N.W/G.W)

5.5Kg(1pcs) / 13.75Kg (2pcs in one package)

Package Dimension

525×220×380(mm)(2pcs in one package)

Power Consumption

20W

Standby Power Consumption

0.95W

Mount Interface

1)VESA 75mm and 100mm

  2)Mount bracket, horizontal or vertical

OSD Control

Buttons

 AUTO,+,POWER,-,MENU

  Function

Brightness,Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

Touch Screen Type

 19" Projected Capacitive touch sceen, 10 points in win7

Touch System Interface

USB / RS-232（optional）

Touch Response time

10ms

Agency Approval

  CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 Year




Applications

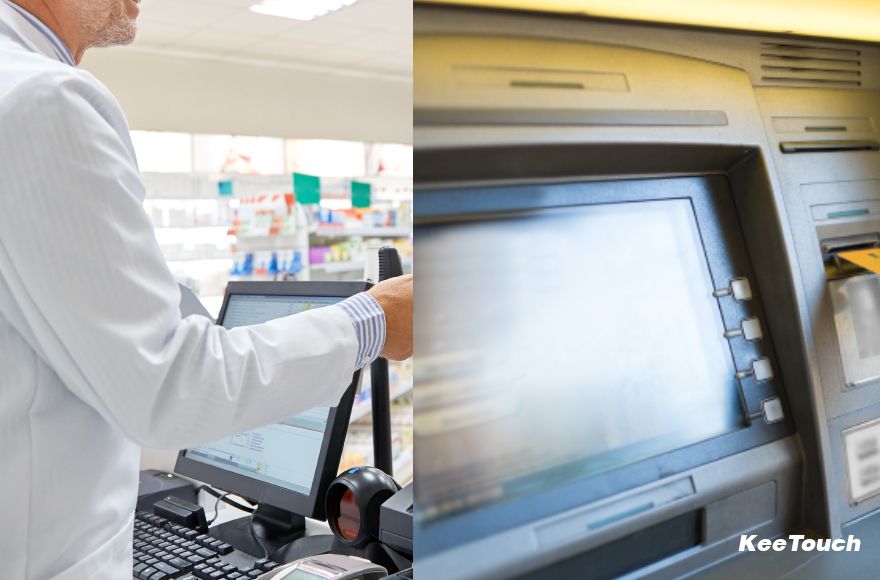

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, control and operation systems, airports, entertainments, etc.





Advantages of PCAP Touch Monitor

1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What's your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
