VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display

VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-121P-010
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type4:3 Ratio 12.1" TFT-LCDSeriesOT
Active Area245.8*184.3(mm)Monitor Dimensions (W*H*D)281*219.5*44.5(mm)
Suggested Resolution1400*1050 @ 60HzSupport Colors16.7M
Response Time (Typ.)5msContrast Ratio (Typ.)800:1
Regular Warranty1 YearVideo InputVGA/DVI/HDMI
High Light

Kiosk Touch Monitor

,

12.1 Inch Kiosk Touch Monitor

,

PCAP Touch Monitor

Leave a Message
Product Description

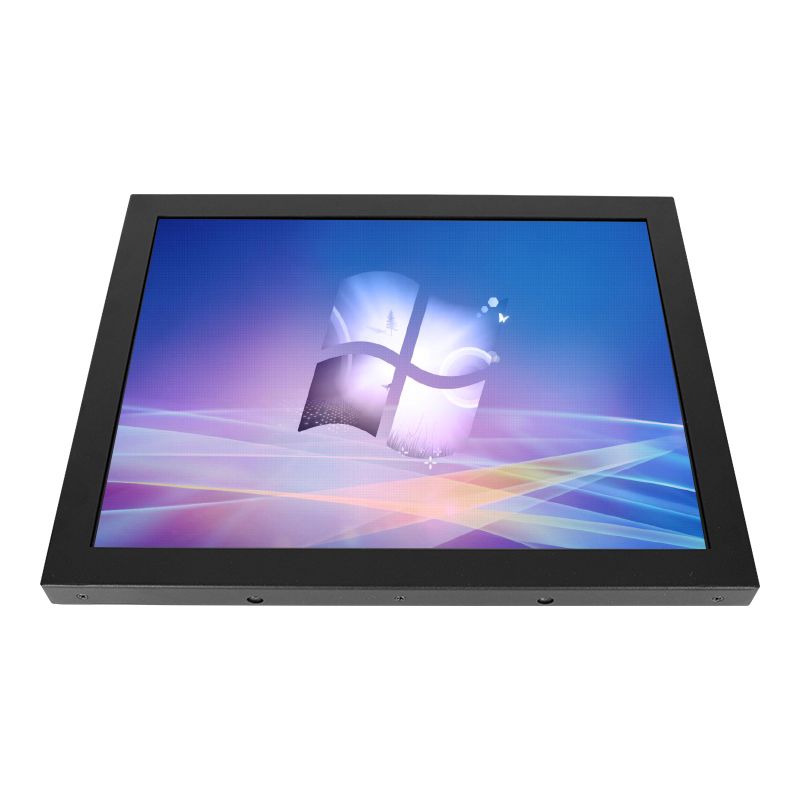

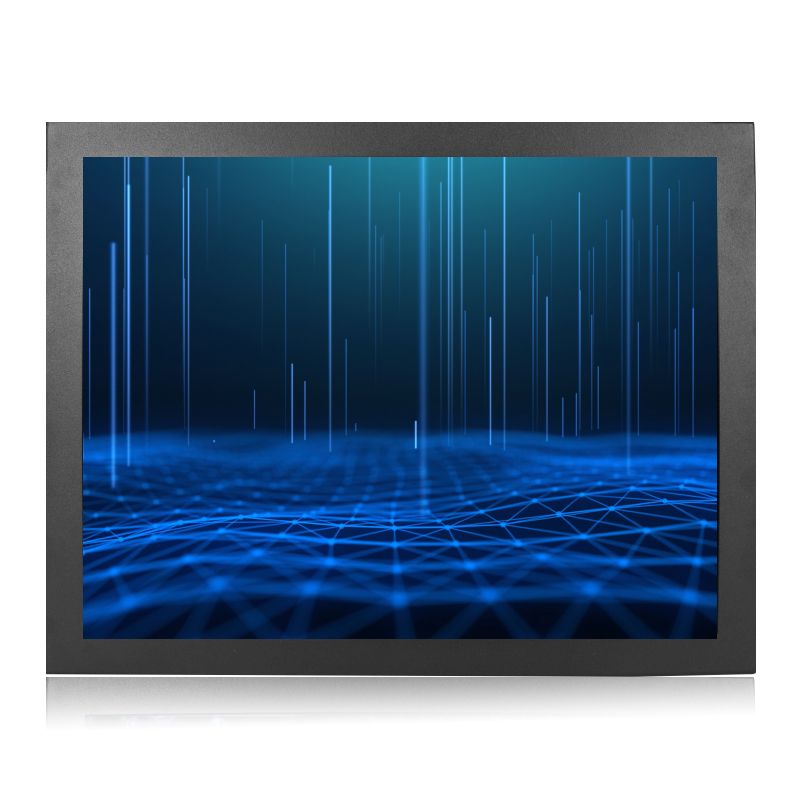

12.1 Inch PCAP Touch Monitor 4:3 Ratio Display For Kiosks


PCAP Touch Screen Product Description


This high resolution LCD monitor offers fast response and high sensitivity, with a high resolution of 1400x1050 and high contrast that delivers excellent image quality. It also provides multiple mounting options, including VESA mount, horizontal and vertical brackets mount, and is compatible with operating systems such as XP, WIN7, WIN8, and WIN10. Additionally, other sizes ranging from （7'' to 43''） can be offered.




PCAP Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0121U-CA4P (P/N:KOT-121P-010)

 Series

 OT

 Display Type

4:3 Ratio 12.1" TFT-LCD

 Active Area

 245.8*184.3(mm)

 Monitor Dimensions (W*H*D)

 281*219.5*44.5(mm)

 Suggested Resolution

1400*1050 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

350cd/m²

With Touch Monitor

297cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 50°/50°

 Vertical(up/down)

 45°/50°

 Contrast Ratio (Typ.)

 800:1

 Video Input

 VGA/DVI/HDMI

 Frequency (H/V)

 30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

 ≥ 50,000 Hours

 LED Back Light Life (Typ.)

 ≥ 50,000 Hours

 Weight（N.W/G.W）

 2.3Kg(1pcs) / 5.25Kg(2pcs in one package)

 Package dimensions

 373*170*317(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤12W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount



 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

12.1" Riot capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

Multi-Touch : WIN7、WIN8、WIN10

Single Touch : XP

Active Area

247.5*186.5(mm)

Thickness

3.3±0.2(mm)

Touch Test

≥ 50,000,000 次

Input Voltage

DC 5V±5%





 PCAP Touch Monitor Main Features

1. Sensitivity: 17 touch screen monitor is very sensitive and can achieve smooth and precise touch interaction even with light touch or using a stylus.

2. Multi-touch function: PCAP technology supports multi-touch function and can detect multiple touch points at the same time. This allows for more complex and natural user interactions, such as two-finger zooming, rotating, and sliding gestures.

3. Durable: flat touch screen monitor is made with a glass surface and is more durable than resistive touch screens. It is more resistant to scratches, wear and tear, and this leads to longer device lifespan.




Applications

Waterproof touchscreen monitor are widely used in industries such as follows:

Retail

Gaming

Kiosk

Self-service

Finance

Transit

Conference

Education

Healthcare

Public service

E-commerce

Hotels




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the flat panel touch screen?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
