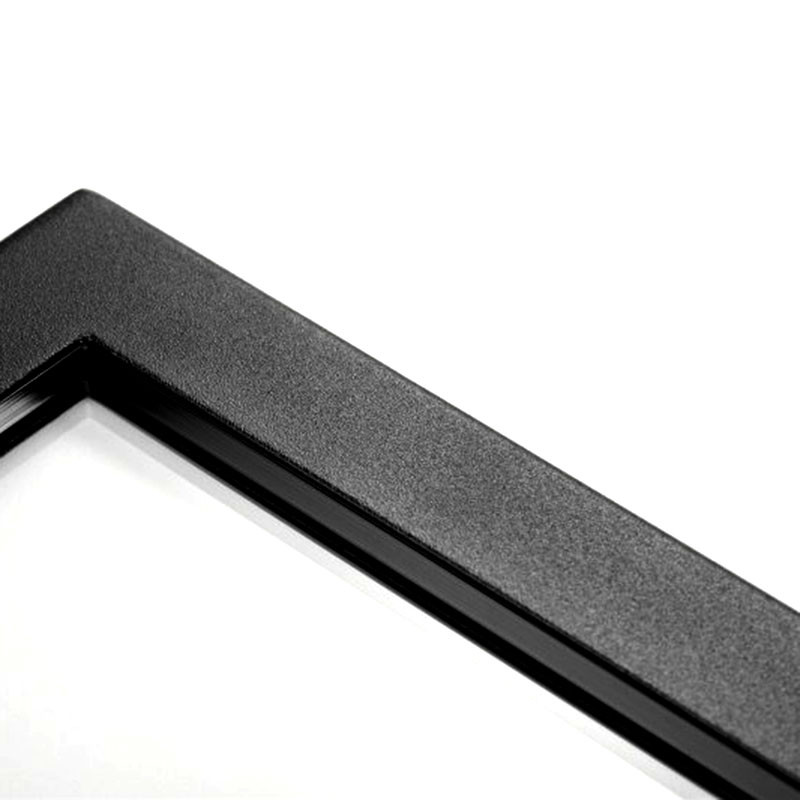

19 Inch Infrared Touch Screen Waterproof For Kiosks Gaming Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Infrared Touch Panel | Interface | USB2.0 Full Speed |
|---|---|---|---|
| Position Accuracy | 1.5mm（center Area）, 2.5mm(edge Area) | Aspect Ratio | 5:4 |
| The Depth Of The Touch | ＜5mm | Touch Lifetime | More Than 50 Million Times |
| Response Time | ≤20ms | Operating Current | ＜160mA |
| High Light | 19 Inch Infrared Touch Screen,Infrared Touch Screen Waterproof,Kiosks infrared touch panel | ||
Product Description
19 Inch Infrared Touch Panel Fast Response For Kiosks Gaming
Infrared Touch Panel Main Features
Infrared touch panel is waterproof, maintenance free with highest transparency, fast and accurate response.
Support various operation system such as Windows 8 / 7 / XP / 2000 / VISTA,Linux,Android
Infrared Touch Panel Specifications
Housing | Metal |
Outline Dimensions | 420±0.5mm(L) ×345±0.5mm(W) ×9±1mm(H) |
Active Area | 378±0.5mm(L) ×303±0.5mm(W) |
Aspect Ratio | 5:4 |
Glass | 3mm toughened glass, Transparence: >92% The light transmittance is decided by the glass Anti-dazzle glass can be customizable |
Touch Medium | Light-tight object. like Finger or touch pen |
Touch Activation Force | Non minimum activation force |
Position Accuracy | 1.5mm（center area）, 2.5mm(edge area) |
The depth Of The Touch | ＜5mm |
Resolution | 4096 × 4096 |
Response Time | ≦20ms |
The Size Of The Touch Medium | ≥Ø8mm |
Touch Lifetime | More than 50 million times |
Power requirements | Voltage DC ±5V，Minimum current 500mA |
Temperature | Operating：0oC ~ 50o C |
Storage：-30oC ~ 60oC | |
Humidity | Operating：20% ~ 85% |
Storage： 0% ~ 95% | |
Interface | USB2.0 full speed (The standard type A connector) Or RS232 serial port |
Waterproofness | IP65 (The front panel) |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Can you provide customized service for Infrared Touch Panel?
We can make it according to your drawing, supply OEM and ODM service.
2. Is the Infrared Touch Panel Driver-free? What OS can the ir touch screen panel kit support?
Yes, it is driver-free, it is "plug and use" type. Support Windows 8/7/XP/2000/VISTA
Linux,Android.
3. What is the MOQ? Sample of Infrared Touch Panel in stock?
No limited on MOQ, sample testing is ok. Standard size in stock.
4. What is the Infrared Touch Panel Application?
Widely used in open frame touch monitor, POS, ATM, KIOSK, Medical, Media player, etc.
5. What is your warranty for Infrared Touch Panel ?
12 months warranty.
6. What is your shipping method?
DHL, UPS, FedEx, TNT, Sea Freight.It depends on different customer.
Why choose us?
Factory you can trust
KeeTouch has passed the quality management standards ISO 9001 and environmental management ISO 14001.
In 2012, KeeTouch was awarded the high and new technology enterprise of china and recognized by the Chinese government.
Local support
We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick
after sales service.
Strong and professinal R&D team
We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you.
Strict QC Before delivery
The shipment you receive is inspected by strict QC,Such as burn-in test, anti-vibration test and working temperature test to ensure quality.
