ODM IR Multi Touch Screen, 15 Inch Touch Panel For Indoor Outdoor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 15 Inch | Glass | 3mm Toughened Glass |
|---|---|---|---|
| Aspect Ratio | 4:3 | Product Name | Infrared Touch Screen Panel |
| Active Area | 306±0.5mm (L) ×230±0.5mm (W) | Housing | Metal |
| Touch Medium | Light-tight Object.like Finger Or Touch Pen | ||
| High Light | ODM IR Multi Touch Screen,15Inch IR Multi Touch Screen,IR 15 Inch Touch Panel | ||
Product Description

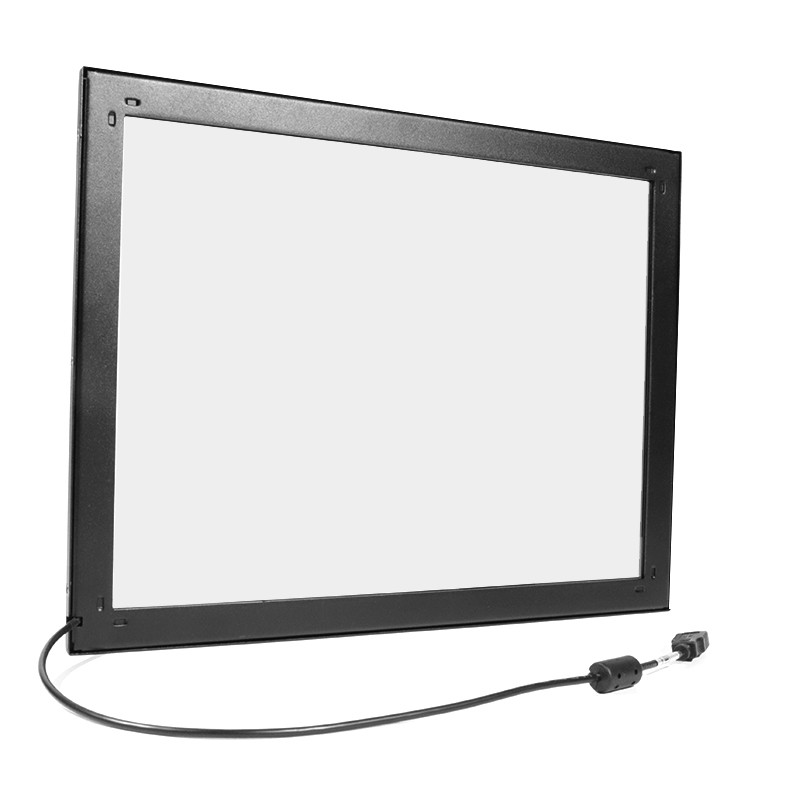

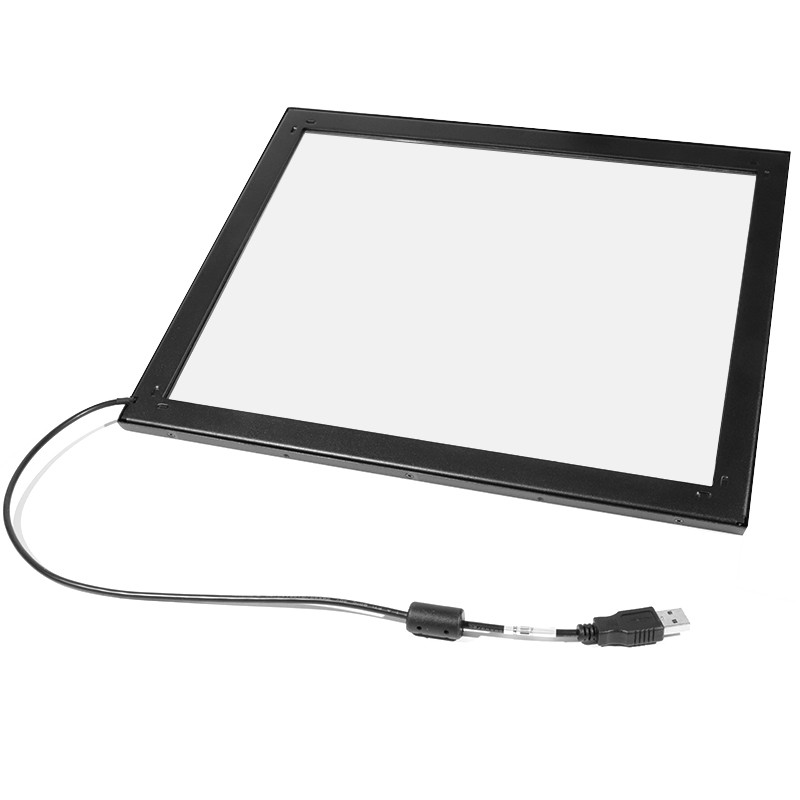

IR Touch Glass Screen 15 Inch USB2.0 Multi Touch Use For Indoor And Outdoor
IR touch glass screen Structural description
IR touch glass screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame.
It is Stable, no-drift calibration performance Vandaproof and abrasion-resistant screens, ideal for rugged applications,Operable in various light conditions, indoor and outdoor.
IR Touch Glass Screen Specifications
Housing | Metal |
Outside Dimensions | 348±0.5mm (L) ×272±0.5mm (W) ×9±1mm (H) |
Active Area | 306±0.5mm (L) ×230±0.5mm (W) |
Aspect Ratio | 4:3 |
Net Weight | 1.35Kg |
Glass | 3mm toughened glass, light transmittance: ＞92% The light transmittance is decided by the glass |
Touch Medium | Light-tight object.like Finger or touch pen |
Touch Activation Force | Non minimum activation force |
Position Accuracy | 1.5mm（center area), 2.5mm(edge area) |
The depth Of The Touch | ＜5mm |
Resolution | 4096 * 4096 |
Response Time | ≤32ms |
The Size Of The Touch Medium | ≥Ø8mm |
Touch Lifetime | More than 50 million times |
Power requirements | Voltage DC ±5V，Minimum current 500mA |
Temperature | Operating：0oC ~ 50o C |
Storage：-30oC ~ 60oC | |
Humidity | Operating：20% ~ 85% |
Storage： 0% ~ 95% | |
Interface | USB2.0 full speed (The standard type A connector) |
Waterproofness | IP65 (The front panel) |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
Factory you can trust
KeeTouch Co,.Ltd. is one of the top 3 leading supplier of industrail touch monitor manufacturer in China with 16 years experience .In 2012, KeeTouch was awarded the high and new technology enterprise of china and recognized by government.
Local support
We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick after sales service.
Strong and professinal R&D team
We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .
FAQ
1. Are you a manufacturer for IR Touch Glass Screen ?
Yes, KeeTouch is a professional touch product manufacturer for over 18+ years, located in Shenzhen, China.
2. What’s your MOQ for IR Touch Glass Screen ?
Our minimum order quantity is 1pc only.
3. What is your warranty period for IR Touch Glass Screen ?
Our regular warranty is 12 month for all the products.
4. Can you produce the IR Touch Glass Screen according to the customer's requirement?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit cardand Alipay. ( L/C can be negotiable. )
6. What is your delivery time for IR Touch Glass Screen ?
3-5 work days for inventory order, 7-15 business days for bulk production.
