10 Points Glass Infrared Touch Screen 43 Inch For Indoor Outdoor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Infrared Touch Screen | Size | 43 Inch |
|---|---|---|---|
| Operate System Support | Windows®7,Windows®8,Vista,XP,Mac® OS,Linux,Android | Aspect Ratio | 16:9 |
| Touch Points | 10 Touch Points | Touch Lifetime | 60,000,000 Touch/cm² |
| Response Time | 5-10ms | ||
| High Light | 10 Points Infrared Touch Screen,Infrared Touch Screen 43Inch,Indoor touch screen 43 inch | ||
Product Description

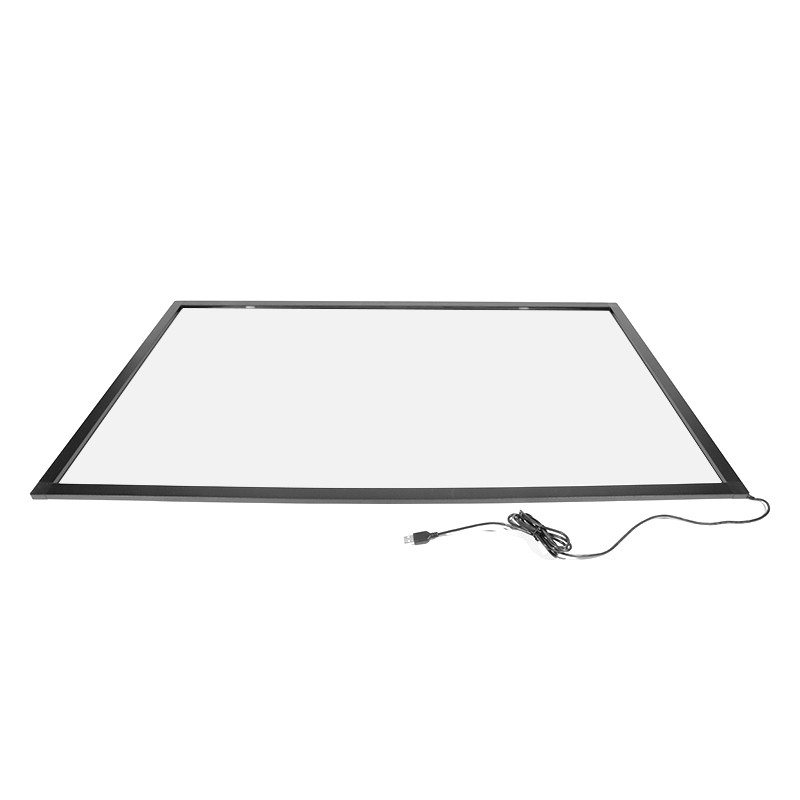

10 Points 43 Inch Infrared Touch Glass Screen 1 6:9 Use Indoor And Outdoor
Infrared Touch Glass Screen Main Features
This 43 Inch can be suitable for internal and external linked environment, widely used to financial telecom service, advertisement show, industrial control, public query, self-service, E-education, and games etc.Its connector USB interface, Intelligent automatic calibration, drive-free and maintenance-free.Aluminum alloy shell with strong stability, fast response(5-10ms).Without driver, supporting plug and play.Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.
Infrared Touch Glass Screen Specifications
Housing | Aluminum |
Outside Dimensions | 990.2±1mm(L)×578.4±1mm(W)×8.4±1mm(H) |
Active Area | 944.2±1mm(L)×532.4±1mm(W) |
Aspect Ratio | 16:9 |
Size | 43 inch |
Touch Activation Force | No minimum touch pressure required |
Number of touch points | 10 touch points |
Minimum Touch Object | A diameter of 6mm opaque objects |
Touch Durability | 60,000,000 touch/cm² |
Resolution | 32768*32768 |
Driver free | HID* compatible, up to 40 touch points |
Linearity Deviation | ±1mm |
Response Time | 5-10ms |
Light Transmission | 100% without glass |
Operate System Support | Windows®7,Windows®8,Vista,XP,Mac®OS, Linux, Android |
Power Supply | Signal USB Connection |
Low Power Consumption | Operating ≤2W, Stand by ≤250mW |
Temperature | Operating：-20℃ ~ 70℃ |
Storage：-40℃ ~ 85℃ | |
Humidity | Operating10% ~ 90% |
Storage：10% ~ 90% | |
Certifications | FCC, CE, RoHS |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
Factory you can trust
In 2012, KeeTouch was awarded the high and new technology enterprise of china and recognized by government.
The items we offered are approved by CCC, UL, ETL, FCC, CE,CB,BIS, RoHS.
Local support
We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick after sales service.
Strong and professinal R&D team
We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .
Strict QC Before delivery. The shipment you receive is inspected by strict QC and working temperature test to ensure quality.
FAQ
1. Are you a manufacturer for Infrared Touch Glass Screen?
Yes, KeeTouch is a professional touch product manufacturer for over 18+ years, located in Shenzhen, China.
2. What’s your MOQ for Infrared Touch Glass Screen?
Our minimum order quantity is 1pc only.
3. What is your warranty period for Infrared Touch Glass Screen?
Our regular warranty is 12 month for all the products, with 2-3 years Warranty (optional).
4. Can you produce the infrared touch screen according to the customer's requirement?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for Infrared Touch Glass Screen ?
3-5 work days for inventory order, 7-15 business days for bulk production.
