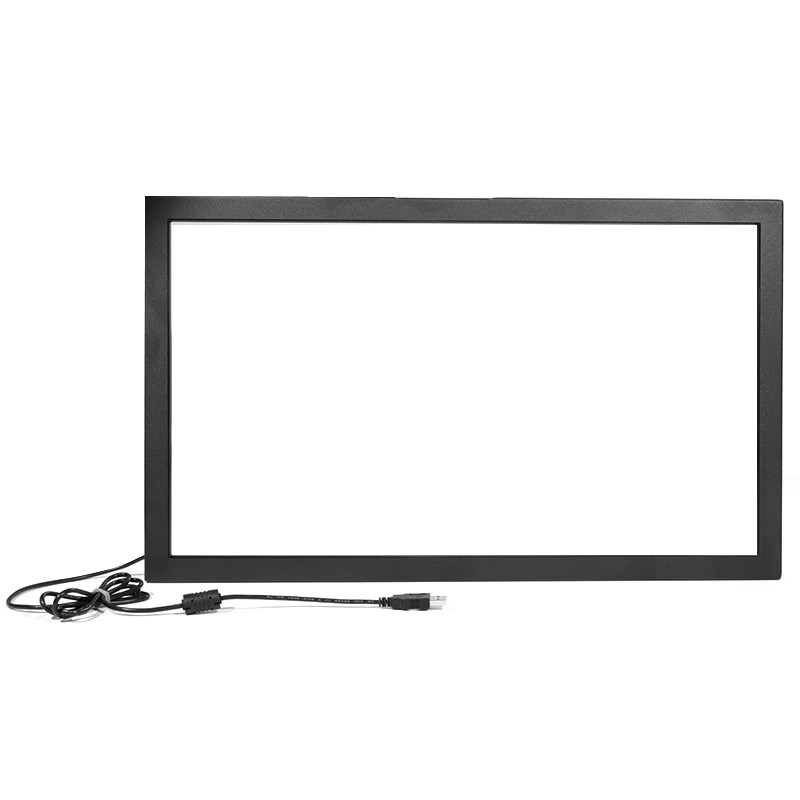

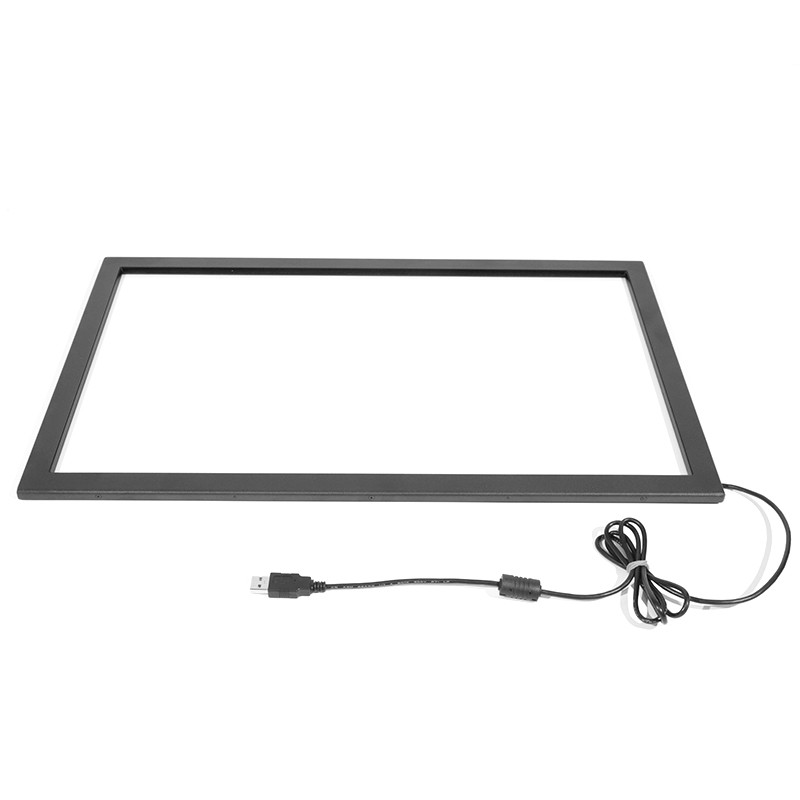

Infrared Touch Screen LCD Panel 21.5 Inch 4 Points For Kiosk
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Infrared Touch Screen | Attribute | Anti-glare /IP65 Front Side Waterproof |
|---|---|---|---|
| The Depth Of The Touch | ＜5mm | Aspect Ratio | 16:9 |
| Active Area | 478±0.5mm (L) ×270±0.5mm (W) | Touch Lifetime | More Than 50 Million Times |
| Response Time | ≤16ms | ||
| High Light | Touch Screen LCD Panel 21.5 Inch,Kiosk Touch Screen LCD Panel,4Points LCD Touch Panel | ||
Product Description
Infrared Touch Lcd 21.5 Inch Four Points Touch High Stability For Kiosk
Infrared touch Lcd Main Features
KeeTouch Infrared Touch Lcd 21.5 Inch is Anti-glare, vandal-proof and IP65 front side waterproof,with four points touch and high stability and durability even in harsh environmental conditions.
More and more consumers are tired of waiting in a long billing queue. A long waiting time could even cause customer churn.Keetouch have more ideal for these applications, including hotel check-in, retail service, food orders and airport check-in. This touch lcd can use for touch monitors with its character.
Infrared touch Lcd Specifications
| Model No. | KMI-U0215M3-R4G-W-C1 |
| Housing | Metal |
| Outside Dimensions | 520±0.5mm (L) ×312±0.5mm (W) ×9.7±0.5mm (H) |
| Active Area | 478±0.5mm (L) ×270±0.5mm (W) |
| Aspect Ratio | 16:9 |
| Net Weight | 1.9Kg |
| Glass | 3mm Anti-glare toughened glass, Transparence : ＞88% The light transmittance is decided by the glass |
| Touch Medium | Light-tight object.like Finger or touch pen |
| Touch Activation Force | Non minimum activation force |
| Position Accuracy | 1.5mm(center area), 2.5mm(edge area) |
| The depth Of The Touch | ＜5mm |
| Response Time | ≤16ms |
| The Size Of The Touch Medium | ≥Ø8mm |
| Touch Lifetime | More than 50 million times |
| Power requirements | Voltage DC ±5V,Minimum current 500mA |
| Operating Current | ＜200mA |
| Power Consumption | ＜2W The typical average power consumption＜0.8W |
| Electrostatic Discharge | Touch Discharge: 4KV |
| Air Discharge: 8KV | |
| Temperature | operating: 0oC ~ 50o C |
| storage:-30oC ~ 60oC | |
| Humidity | operating: 20% ~ 85% |
| storage: 0% ~ 95% | |
| Light Resistance | Zero degree of anti-light |
| Interface | USB2.0 full speed (The standard type A connector) |
| Waterproofness | IP65 (The front panel) |
| Operating Environment | Indoor and outdoor |
| Applicative Screen | LED, LCD, PDP etc. |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Our advantage:
--KeeTouch has passed the quality management standards ISO 9001 and environmental management ISO 14001.
--Our company was awarded the high and new technology enterprise of china and recognized by the Chinese government in 2012.
--We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick after sales service.
--There are 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you.
FAQ
1.What is your shipping method?
DHL, UPS, FedEx, TNT, Sea Freight.It depends on different customer.
2. Which certification your Infrared touch Lcd have?
Our products have approved by CCC, UL, UL, FCC, CE, CB, BIS, RoHS.
3. What is your payment method?
We can accept T/T, Western Union, Paypal,Credit card, and Alipay.(L/C can be negotiable.)
4. What is your warranty period for Infrared touch Lcd ?
Our regular warranty is 12 month for all the products.
5. Is this Infrared touch Lcd stocking ?
Yes, we have 1000 pcs in stock per week.
6. What's your minimum order quantity of the Infrared touch Lcd ?
We have no limit for MOQ, 1 pc also available.
