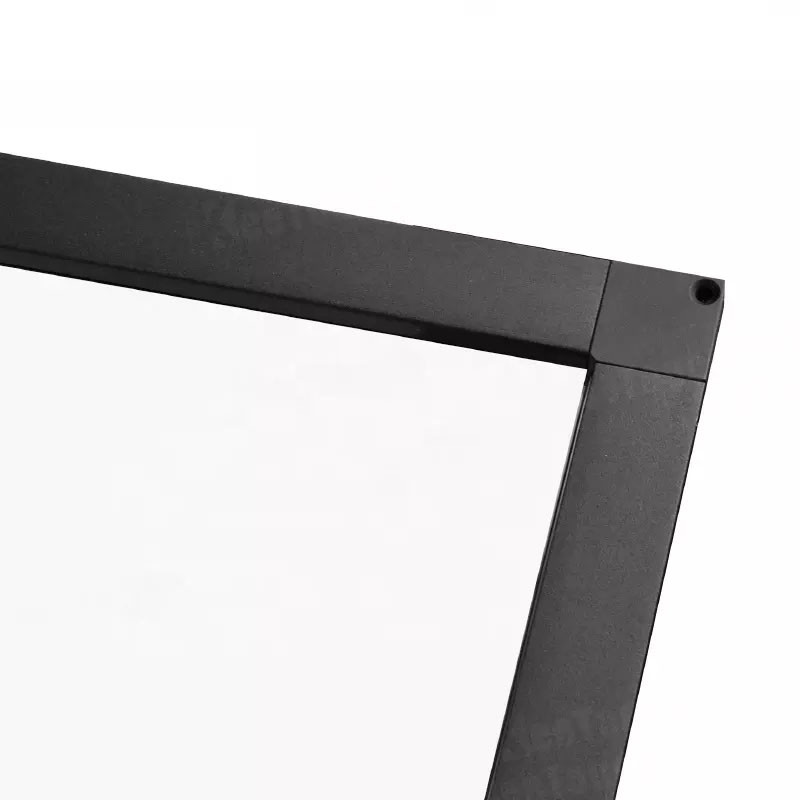

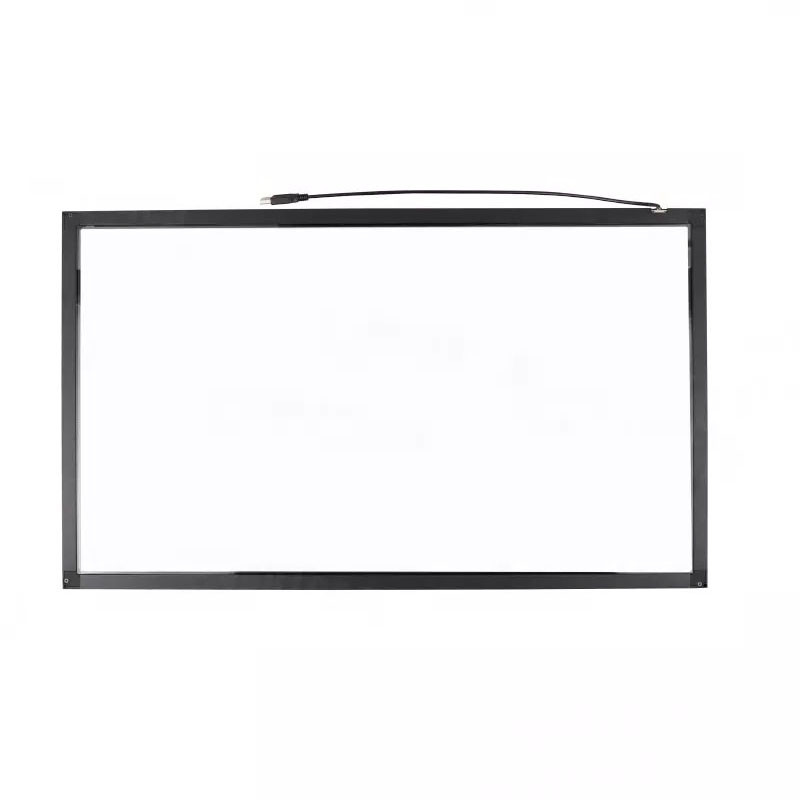

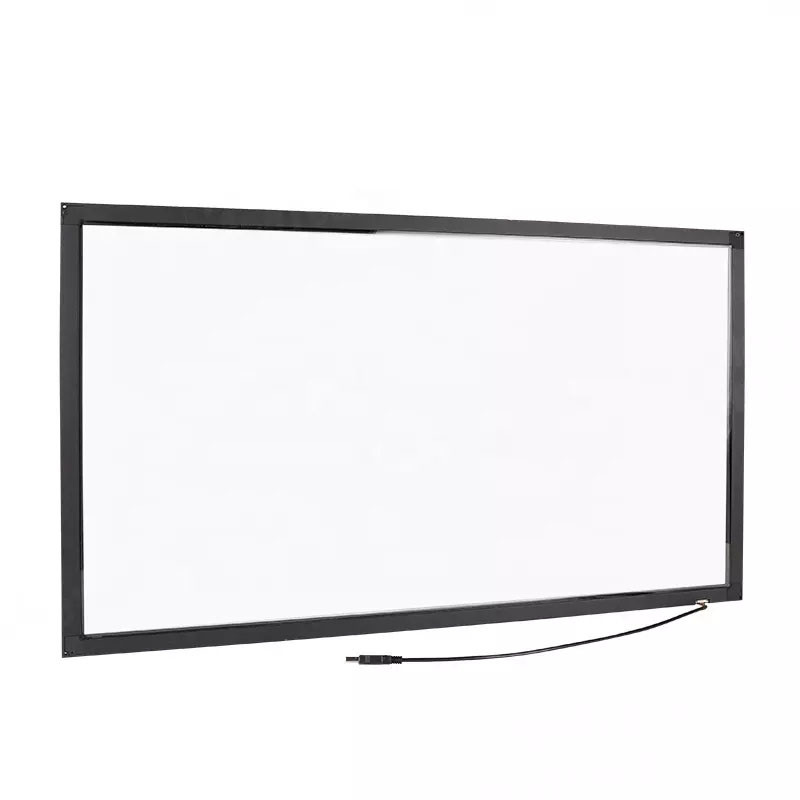

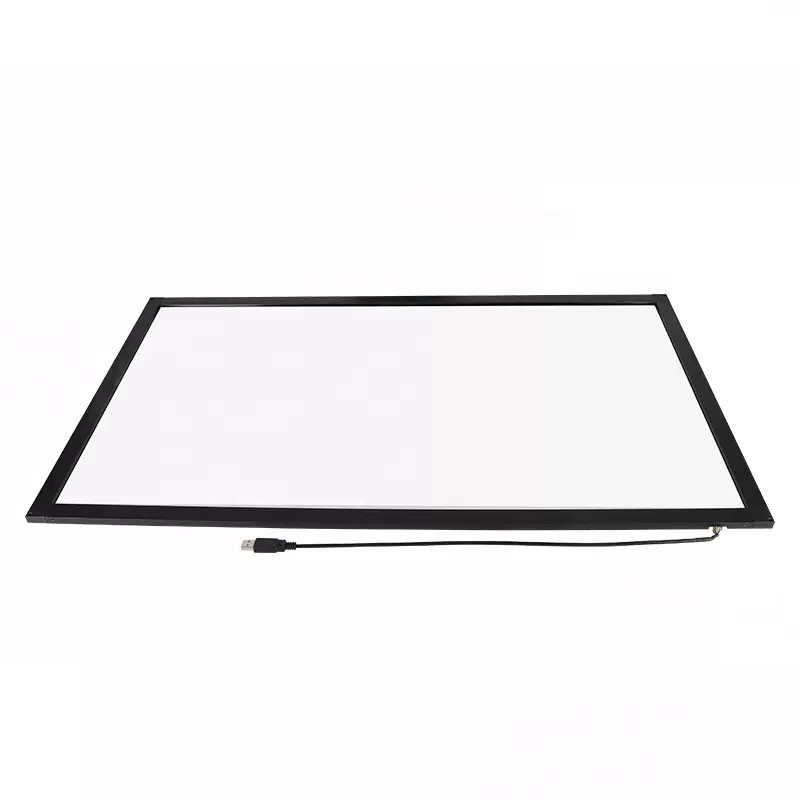

32 Inch Infrared Touch Screen Panel 4 Touch Points Dust Proof With Aluminum Housing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 4096 × 4096 | Light Transmission | 92% With Cover Glass |
|---|---|---|---|
| Operate System Support | Windows®7,Windows®8,Vista,XP,Mac® OS,Linux,Android | Power Supply | Signal USB Connection |
| Touch Durability | 60,000,000 Touch/cm² | Response Time | ≤20ms |
| Linearity Deviation | ±1mm | Product Name | Infrared Touch Screen |
| High Light | 32 Inch Infrared Touch Screen,Infrared Touch Screen 4Points,Aluminum 32 inch touch screen panel | ||
Product Description
32 Inch Infrared Touch Screen Frame Panel 4 Touch Points Dust Proof
Infrared Touch Screen Main Features
Adopt infrared touch technology, fast and accurate touch response
Vandal proof, dust proof and IP65 surface waterproof
≥ 92% high transparency, superior image clarity
Lasting touch, durable in harsh environment
USB interface for the Infrared Touch Screen, support numerous OS
Plug & play driver free capability
Other sizes (15''- 86'') of the Infrared Touch Screen and multi-points (2-4 points) are optional
Infrared Touch Screen Specifications
| Item | Contents |
| Housing | Aluminum |
| Outside Dimensions | 742.5±1.5mm (L) ×430±1.5mm (W) ×9.4± 1.5mm(H) |
| Active Area | 698.4±1.5mm (L) ×392.9±1.5mm (W) |
| Aspect Ratio | 16:9 |
| Drawing | Refer to Appendix 7 |
| Size | 32 inch |
| Touch Activation Force | No minimum touch pressure required |
| Touch Durability | 60,000,000 touch/cm² |
| Resolution | 4096 × 4096 |
| Driver free | HID* compatible, up to 40 touch points |
| Linearity Deviation | ±1mm |
| Fault Tolerance | Workable even 75% sensors are damaged |
| Response Time | ≤20ms |
| Light Transmission | 92% with cover glass |
| Operate System Support | Windows®7,Windows®8,Vista,XP,Mac® OS,Linux,Android |
| Power Supply | Signal USB Connection |
| Low Power Consumption | Operating ≤1.4W, Stand by ≤250mW |
| Temperature | operating:0°C ~ 50°C |
| storage:-30°C ~ 60°C | |
| Humidity | operating:0 ~ 95% |
| storage: 10% ~ 90% | |
| Certifications | FCC, CE, RoHS |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What's your MOQ for the Infrared Touch Screen?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the Infrared Touch Screen?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce for the Infrared Touch Screen according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.）
6. What is your delivery time for the Infrared Touch Screen?
3-5 work days for inventory orders, 7-15 business days for bulk production.
