Four Points Infrared 21.5 Inch Touch Screen For Indoor Outdoor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | KeeTouch 21.5" Infrared Touch Screen | Active Area | 478±0.5mm(L) ×270±0.5mm(W) |
|---|---|---|---|
| Aspect Ratio | 16:9 | Transparence | >92% |
| Touch Medium | Light-tight Object.like Finger Or Touch Pen | The Depth Of The Touch | <5mm |
| Resolution | 4096×4096 | ||
| High Light | UL 21.5 Inch Touch Screen,21.5 Inch Touch Screen Infrared,4096×4096 Infrared Touch Screen | ||
Product Description

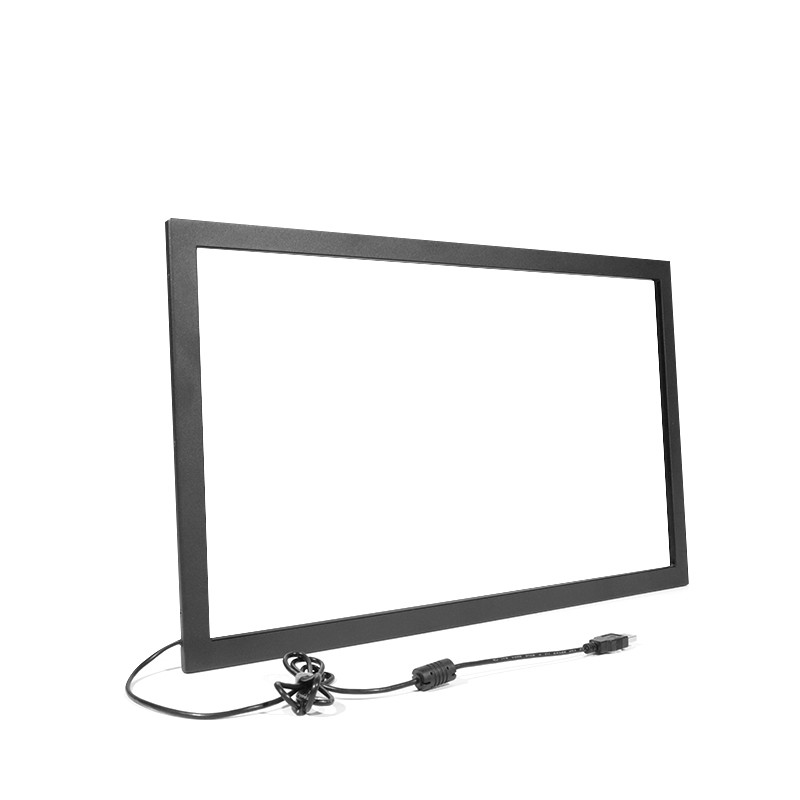

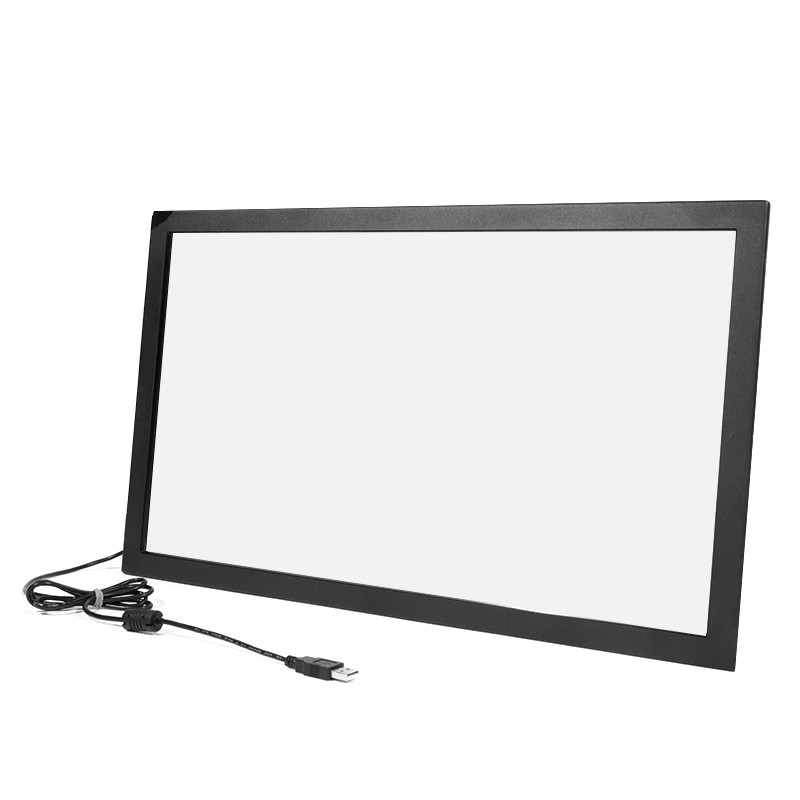

21.5 Inch Infrared Touch Screen Four Points Touch For Indoor Outdoor
Infrared Touch Monitor Main Features
KeeTouch infrared touch screens, four points multi touch for accurate positioning
Narrow frame, ultra-thin designed infrared touch screen, easy for integration
Vandal-proof and IP65 front side waterproof infrared touch screen
>92% high light transparency, ideal touch experience
High stability, durable even in harsh environmental conditions
USB interface for touch input, support various OS
Other sizes (15’’- 86’’) can be offered
Infrared Touch Screen Specifications
| Model No. | KMI -U0215M3-R3G-01 |
| Housing | Metal |
| Outside Dimensions | 520±0.5mm(L) ×312±0.5mm(W) ×9±1mm(H) |
| Active Area | 478±0.5mm(L) ×270±0.5mm(W) |
| Aspect Ratio | 16:9 |
| Net Weight | 1.9Kg |
| Glass | 3mm toughened glass, Transparence : >92% The light transmittance is decided by the glass Anti-dazzle glass can be customizable |
| Touch Medium | Light-tight object. like Finger or touch pen |
| Touch Activation Force | Non minimum activation force |
| Position Accuracy | 1.5mm(center area), 2.5mm(edge area) |
| The depth Of The Touch | ＜5mm |
| Resolution | 4096 × 4096 |
| The Size Of The Touch Medium | ≥Ø8mm |
| Touch Lifetime | More than 50 million times |
| Power requirements | Voltage DC ±5V,Minimum current 500mA |
| Operating Current | ＜200mA |
| Power Consumption | ＜2W The typical average power consumption＜0.8W |
| Electrostatic Discharge | Touch Discharge: 4KV |
| Air Discharge: 8KV | |
| Temperature | operating: 0°C ~ 50°C |
| storage:-30°C ~ 60°C | |
| Humidity | operating: 20% ~ 85% |
| storage: 0% ~ 95% | |
| Light Resistance | Incandescent lamp (220V,60W), above the touch screen plane 200 mm |
| Interface | USB2.0 full speed (The standard type A connector) |
| Waterproofness | IP65 (The front panel) |
| Operating Environment | Indoor and outdoor |
| Applicative Screen | LED, LCD, PDP etc. |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for infrared touch screen?
Our minimum order quantity is 1pc only.
3. What is your warranty period for infrared touch screen?
Our regular warranty is 12 month for all the products, with 2-3 years Warranty (optional).
4. Can you produce the infrared touch screen according to the customer's requirement?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
6. What is your delivery time?
3-5 work days for inventory order, 7-15 business days for bulk production.
