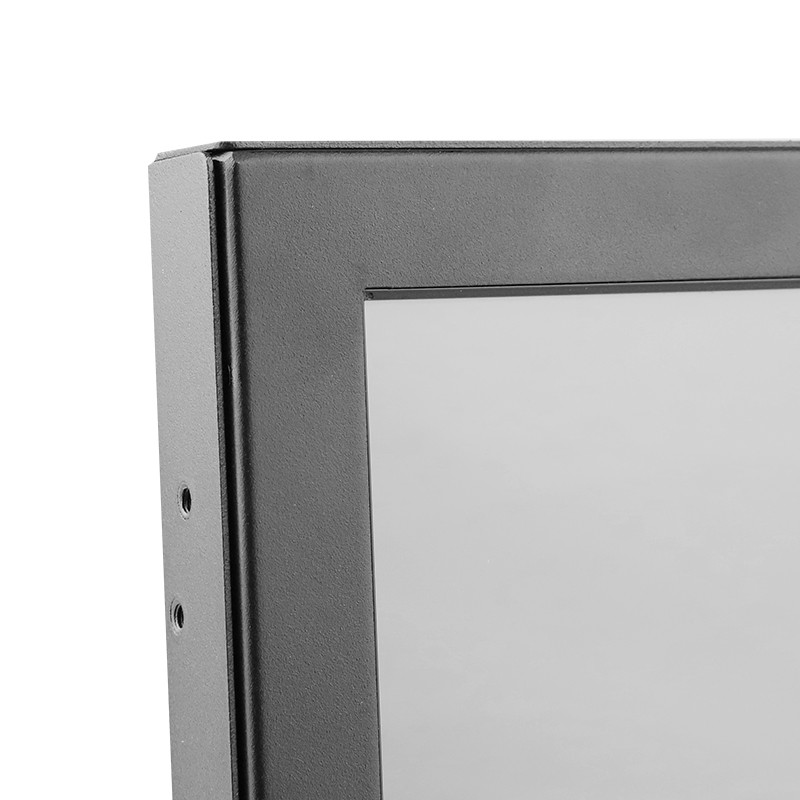

Infrared 15 Inch Touch Screen Display Anti Vandal Dust Proof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 15'' Infrared Touch Monitor | Display Type | 4:3 Ratio 15" TFT-LCD |
|---|---|---|---|
| Suggested Resolution | 1024*768 | Video Input | VGA/DVI |
| Viewing Angle | 80/80, 80/80 | Support System | XP,WIN7,WIN8,Andriod |
| Regular Warranty | One Year | Certificates | CCC, UL, FCC, CE, CB, RoHS |
| High Light | Infrared 15 Inch Touch Screen Display,DustProof 15 inch touch display,Anti Vandal 15 inch touch display | ||
Product Description
Industrial Touch Monitor 15 Inch IR Touchscreen with 1024*768
Infrared Touch Monitor Main Features
Infrared multi touch panel, high quality touch experience
Dust-proof, anti-vandal and IP65 front frame waterproof,Infrared Touch Monitor
Multiple mounting options include VESA mount, horizontal vertical brackets mount
VGA+DVI interfaces,USB for touch
Support system: XP,WIN7,WIN8,WIN10, Linux, Android
Other sizes are optional (7''- 32'')
Infrared Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150U-IR3W (P/N:KOT-150W-018) | |
Series | OT | |
Display Type | 4:3 Ratio 15" TFT-LCD | |
Active Area | 304.128*228.096(mm) | |
Monitor Dimensions (W*H*D) | 351*275*55(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 420cd/m² |
With Touch Monitor | 378cd/m² | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 80°/80° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Weight（N.W/G.W） | 3Kg(1pcs)/6.7Kg(2pcs in one package) | |
Package dimensions | 429*183*356(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Infrared touch screen |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8 |
Active Area | 306*230(mm) |
Thickness | 9±1(mm) |
Touch Test | 50,000,000 times |
Input Voltage | 5V |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
3. Do you support customization?
Yes. We are the manufacturer of Industrial Touch Screen and Touch Monitor. And have professional R&D Team, could customized the touch monitor according to your requirement.
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
