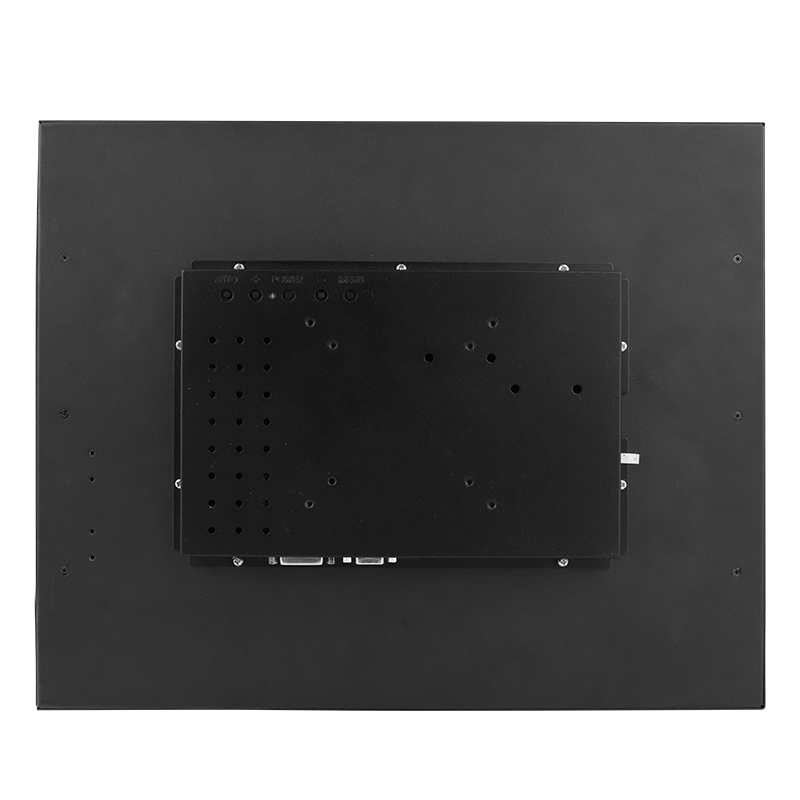

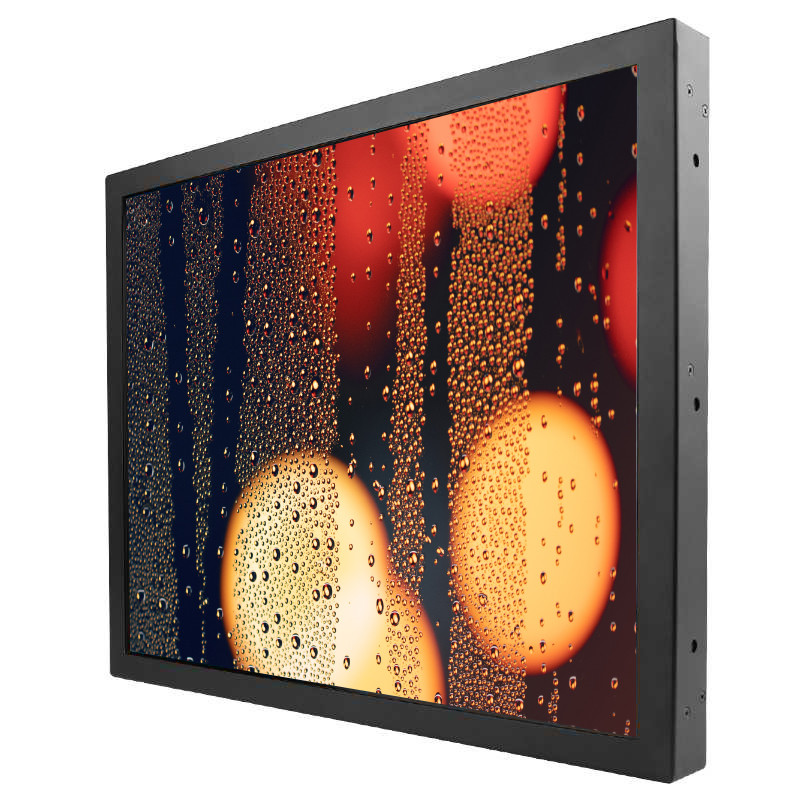

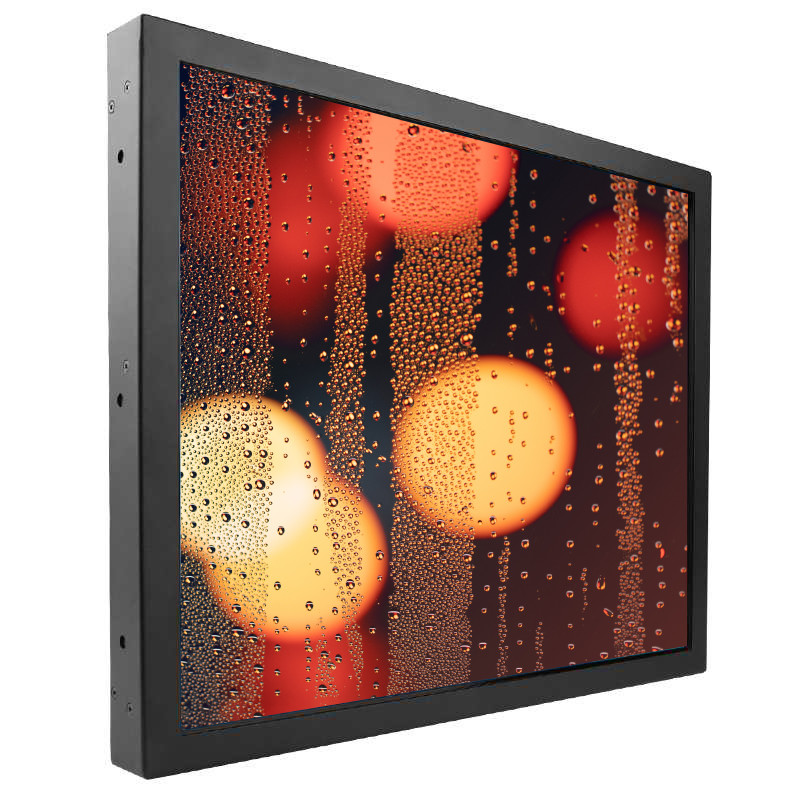

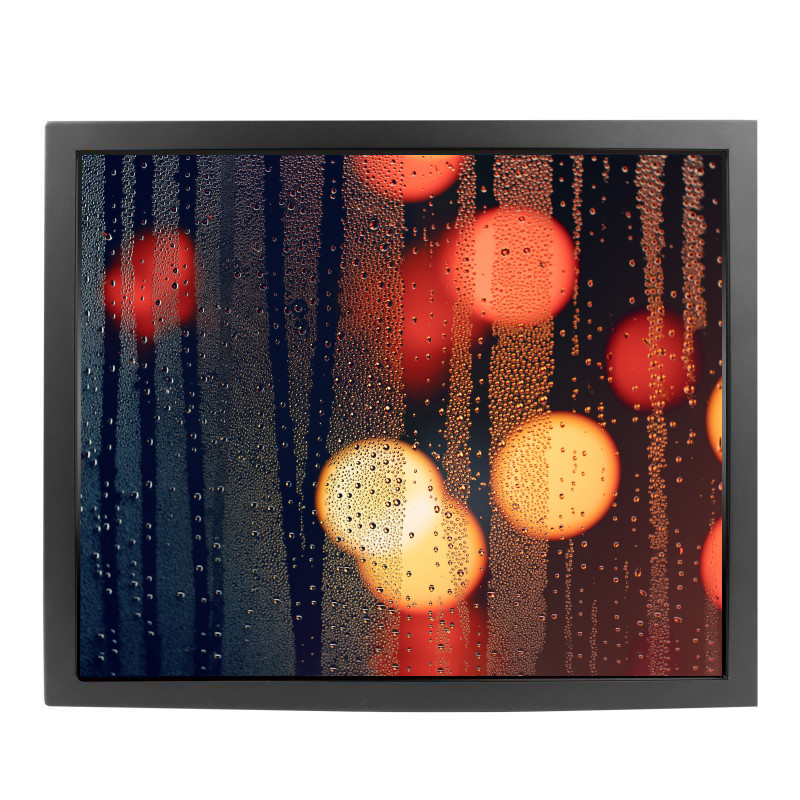

Anti Vandal Infrared Touch Monitor , 19 Inch Open Frame Touch Monitor 1280×1024
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 19＂Active Matrix TFT-LCD | Suggested Resolution | 1280×1024@60Hz |
|---|---|---|---|
| Contrast Ratio | 1000:1 | Response Time(Typ.) | 16ms |
| Active Area | 14.8＂(377mm)×11.9＂(301mm) | Regular Warranty | 1 Year |
| Support Colors | 16.7M | Product Name | Infrared Touch Monitor |
| High Light | Anti Vandal Infrared Touch Monitor,Infrared Touch Monitor 19Inch,Infrared 19 inch open frame monitor | ||
Product Description
19 Inch Infrared Touch Monitor Open Frame IP65 Surface Water Proof
Infrared Touch Monitor Main Features
Infrared touch screen, accurate touch, fast response, 1- 40 points optional
High resolution, high contrast infrared touch monitor, high definition visual enjoyment
IP65 front frame waterproof, anti-vandal Infrared Touch Monitor
Industrial grade infrared touch monitor, lasting touch, durable even in harsh environment
Multiple mounting options include VESA mount, horizontal or vertical brackets mount
VGA interface, USB for touch input
Support system: XP, WIN7, WIN8, Linux
Other sizes can be offered (7''- 32'')
Infrared Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0190U-IR3W(KOT-190p-042） | |
Series | Metal Frame, OT | |
Display Type | 19＂Active Matrix TFT -LCD， | |
Active Area | 14.8＂(377mm)×11.9＂(301mm) | |
Suggested Resolution | ||
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 225cd/m² | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right):85°/85° | |
Vertical(up/down): 80°/80° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | Analog RGB | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Power Consumption | Operating Power: ≤15W | |
Mount Interface | 1.VESA 75*75mm and 100*100mm | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
Touch Type | 19" Infrared touch screens | |
Touch Input | USB | |
Response Time | ≤16ms | |
Support System | XP,WIN7,WIN8,Linux | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions, founded in 2006, located in Shenzhen, China.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer's individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What's your MOQ for the infrared touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the infrared touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the infrared touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
