IR 15 Inch Industrial Touch Screen Monitor Panel Multi Touch 1024×768 Resolution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Infrared Touch Monitor | Display Type | 4:3 Ratio 15" TFT-LCD |
|---|---|---|---|
| Suggested Resolution | 1024*768 @60Hz | Contrast Ratio | 1000:1 |
| Video Input | VGA/DVI | Viewing Angle | 80/80, 80/80 |
| Support System | XP,WIN7,WIN8,Andriod | Regular Warranty | One Year |
| High Light | IR 15 Inch Touch Screen Monitor,15 Inch Touch Screen Monitor MultiTouch,1024×768 15 inch touch screen panel | ||
Product Description

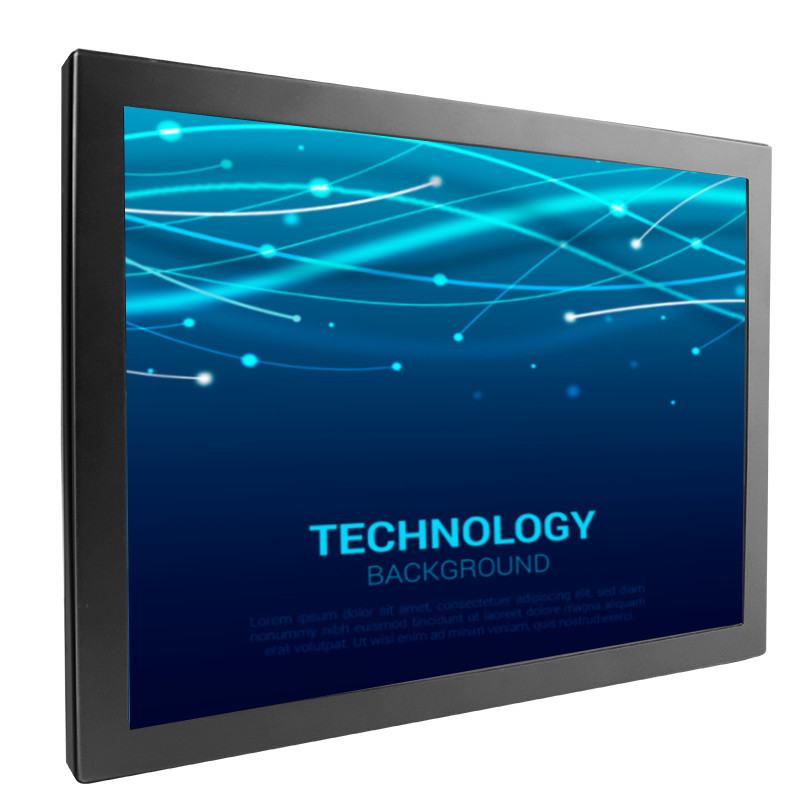

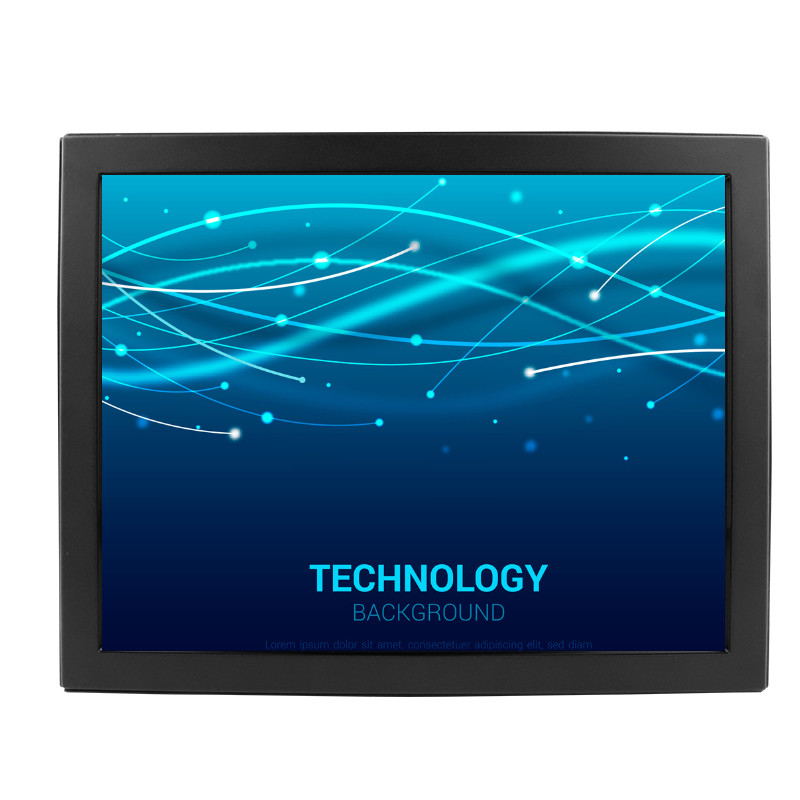

15 Inch IR Touch Monitor IP65 Surface Waterproof with 1024*768
Infrared Touch Monitor Main Features
Infrared multi touch panel, high quality touch experience
High resolution, high contrast infrared touch monitor with broad viewing angle
Dust-proof, anti-vandal and IP65 front frame waterproof,Infrared Touch Monitor
Multiple mounting options include VESA mount, horizontal vertical brackets mount
VGA + DVI + HDMI interfaces,USB for touch
CCC, UL, FCC, CE, CB, RoHS certificate
Infrared Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150U-IR3W (P/N:KOT-150W-018) | |
Series | OT | |
Display Type | 4:3 Ratio 15" TFT-LCD | |
Active Area | 304.128*228.096(mm) | |
Monitor Dimensions (W*H*D) | 351*275*55(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 420cd/m² |
With Touch Monitor | 378cd/m² | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 80°/80° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
Weight（N.W/G.W） | 3Kg(1pcs)/6.7Kg(2pcs in one package) | |
Package dimensions | 429*183*356(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |

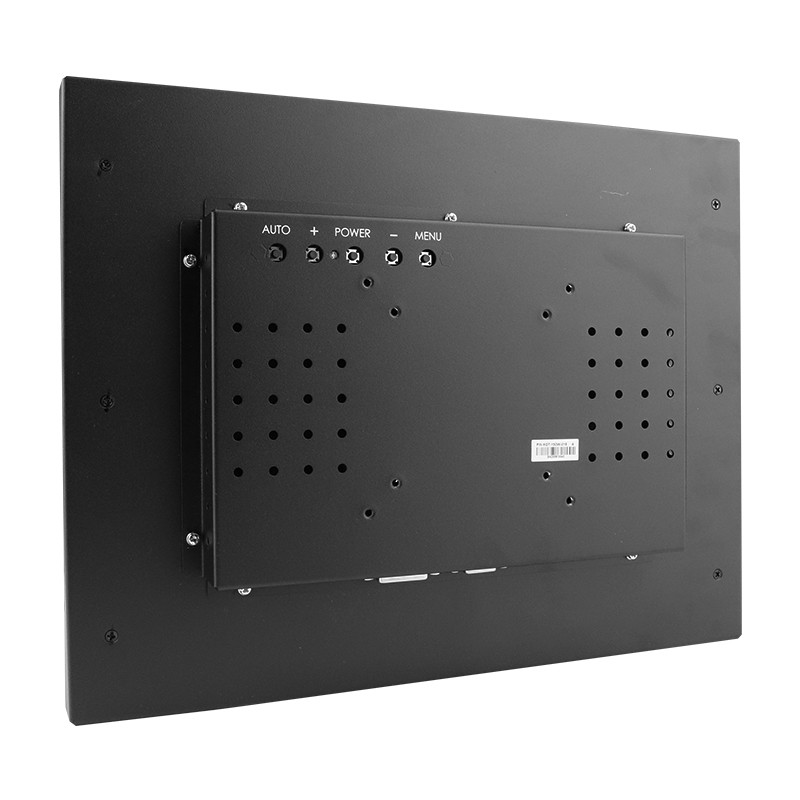

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Infrared touch screen |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8 |
Active Area | 306*230(mm) |
Thickness | 9±1(mm) |
Touch Test | 50,000,000 times |
Input Voltage | 5V |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1.How to ship to us from your factory?
Optional: Fedex/DHL/UPS/EMS, by air, by sea or to your China forwarder.
2. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
3. Do you support customization?
Yes. We are the manufacturer of Industrial Touch Screen and Touch Monitor. And have professional R&D Team, could customized the touch monitor according to your requirement.
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
