19" Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor

19
19 19 19 19 19
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0190U-IR3W KOT-190P-042
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

Carton
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type19＂Active Matrix TFT-LCDProduct Name19'' Infrared Touch Monitor
Suggested Resolution1280×1024@60HzContrast Ratio1000:1
Brightness250 Cd/m²Active Area14.8＂(377mm)×11.9＂(301mm)
Regular Warranty1 YearSupport Colors16.7M
Video InputAnalog RGB

High Light

Infrared Touch Monitor 250 Nits

,

Infrared Touch Monitor Waterproof

,

Waterproof Open Frame Touch Screen Monitor

Leave a Message
Product Description

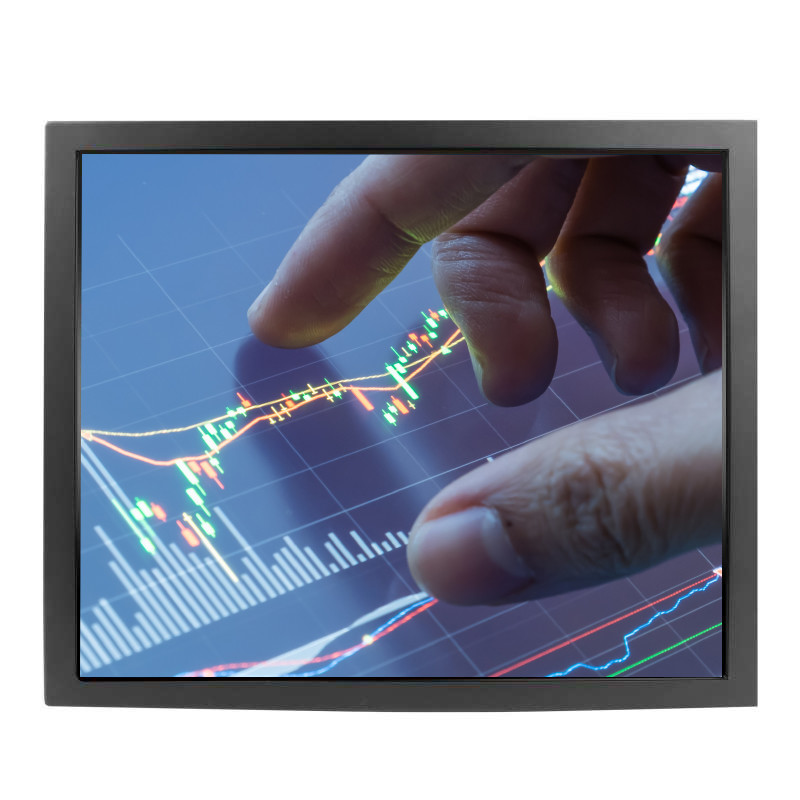

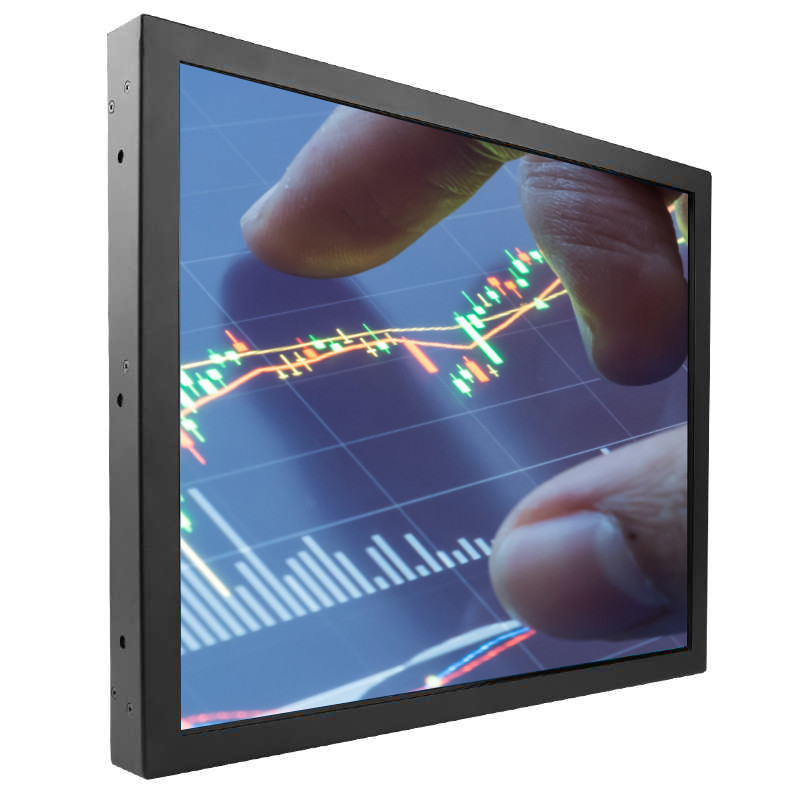

Industiral 19 Inch Infrared Touch Monitor 250 Nits Open Frame



Infrared Touch Monitor Main Features

Infrared touch screen, accurate touch, fast response, 1- 40 points optional

High resolution, high contrast infrared touch monitor, high definition visual enjoyment

IP65 grade water-proof,dust-proof for front panel.

Compatible with various industrial systems/application

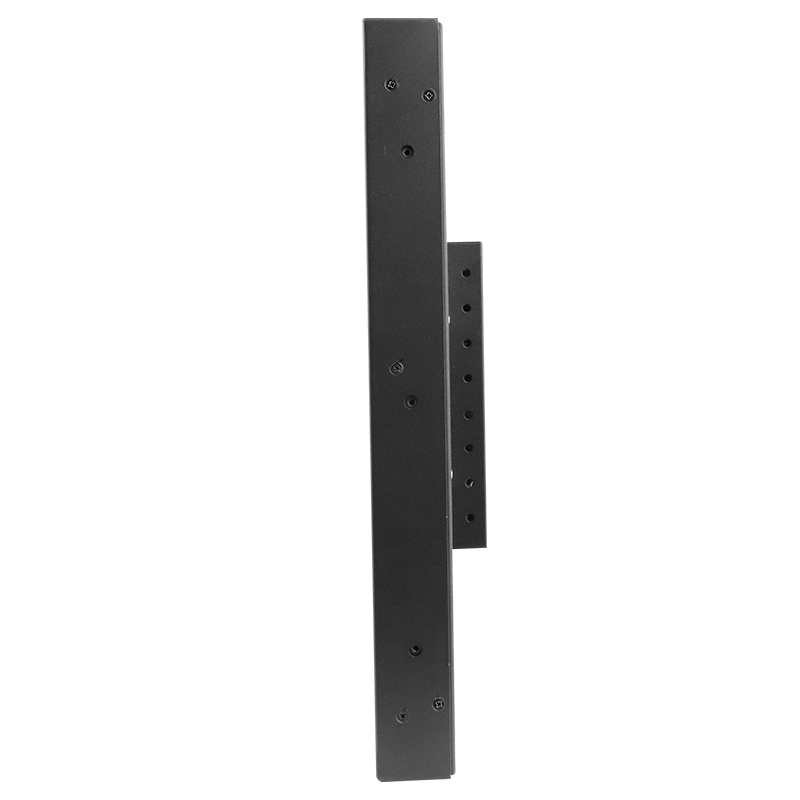

Multiple mounting options include VESA mount, horizontal or vertical brackets mount

CCC, UL, FCC, CE, CB, RoHS certificate.

Support system: XP, WIN7, WIN8, Linux

Other sizes can be offered (7''- 43'')




Infrared Touch Monitor Specifications

 Complete   Machine

Model No.

KOT-0190U-IR3W(KOT-190p-042）

Series

Metal Frame, OT

Display Type

19＂Active Matrix TFT -LCD，

Active Area

14.8＂(377mm)×11.9＂(301mm)

Suggested   Resolution

1280x1024 @   60Hz

Support Colors

16.7M

Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

225cd/m²

Response Time (Typ.)

16ms

Viewing   Angle(Typ.at CR＞10)）

Horizontal(left/right):85°/85°

Vertical(up/down): 80°/80°

Contrast Ratio   (Typ.)

1000:1

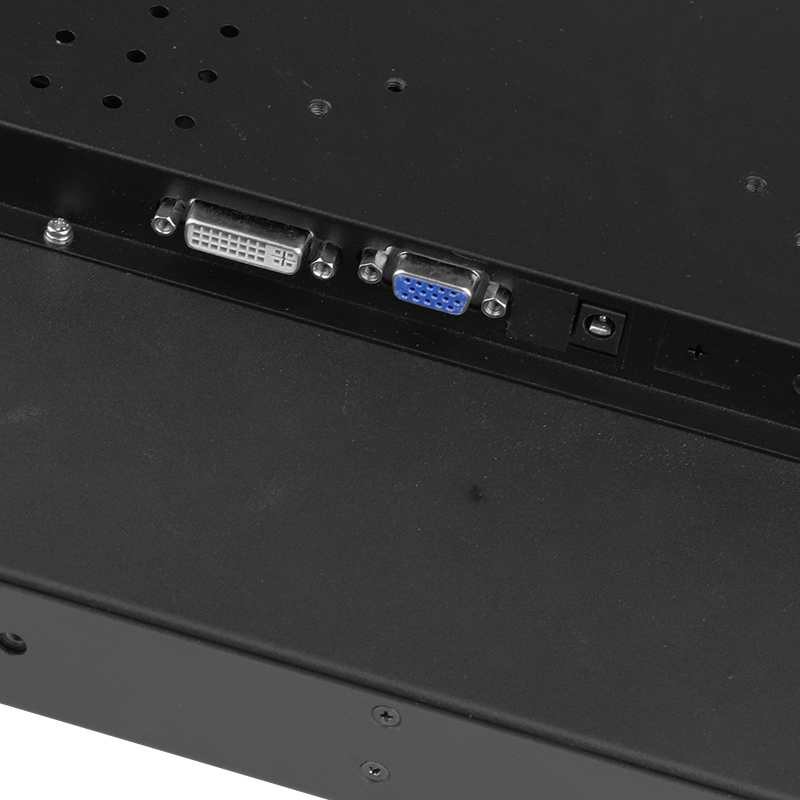

Video Input

Analog RGB

Frequency (H/V)

30～80KHz / 60～75Hz

Power Supply

Type: External brick

Display voltage: DC 12V±5%
  Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥50,000 Hours

LED Back Light   Life (Typ.)

≥50,000 Hours

Weight（N.W/G.W）

5.85Kg

Mount   Interface

1.VESA 75*75mm and 100*100mm

OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio,  Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

Touch Type

19" Infrared touch screens

Touch Input

USB

Response Time

≤16ms

Support System

XP,WIN7,WIN8,Linux

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular  Warranty

1 year






Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Advantages of IR Touch Monitor

1.High durability: IR touch monitors are designed to withstand heavy usage and can handle millions of touch inputs. They are resistant to scratches, dust, and water, making them ideal for use in high-traffic areas.


2.High accuracy: IR touch monitors offer a high level of accuracy when it comes to touch input detection. This makes them suitable for applications that require precise touch inputs, such as drawing and design software.


3.Multi-touch support: IR touch monitors can detect multiple touch inputs simultaneously, allowing for multi-touch gestures such as pinch-to-zoom and two-finger scrolling.


4. No pressure required: IR touch monitors do not require any pressure to detect touch inputs. This makes them easier to use for people with disabilities or those who have difficulty applying pressure.

5. Easy calibration: IR touch monitors can be easily calibrated to ensure accurate touch input detection. This makes them more user-friendly and reduces the need for maintenance.


6. Compatibility: IR touch monitors are compatible with a wide range of operating systems, including Windows, Mac, and Linux. This makes them versatile and suitable for a variety of applications, including gaming, education, and business.




FAQ

1. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.


2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


3. What is your warranty period for the infrared touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the infrared touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.）


6. Do you provide samples?

 Yes, sample is available and in stock, can be sent out within 2 days.
