Indoor Outdoor Infrared Touch Monitor 19 Inch For Self Service Kiosk ATM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 5:4 Ratio 19" TFT-LCD | Suggested Resolution | 1280*1024 @ 60Hz |
|---|---|---|---|
| Contrast Ratio | 1000:1 | Video Input | DVI |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android | Regular Warranty | 1 Year |
| Touch Test | Test ≥50,000,000 Times | Product Name | Infrared Touch Monitor |
| High Light | Indoor Infrared Touch Monitor,Kiosk Infrared Touch Monitor,ATM 19 inch touch monitor | ||
Product Description

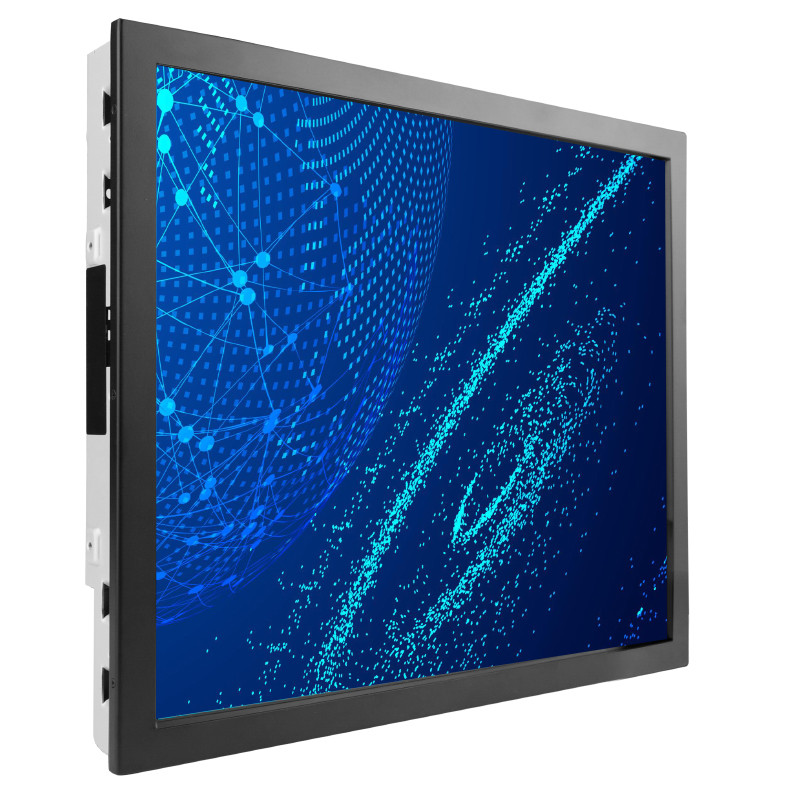

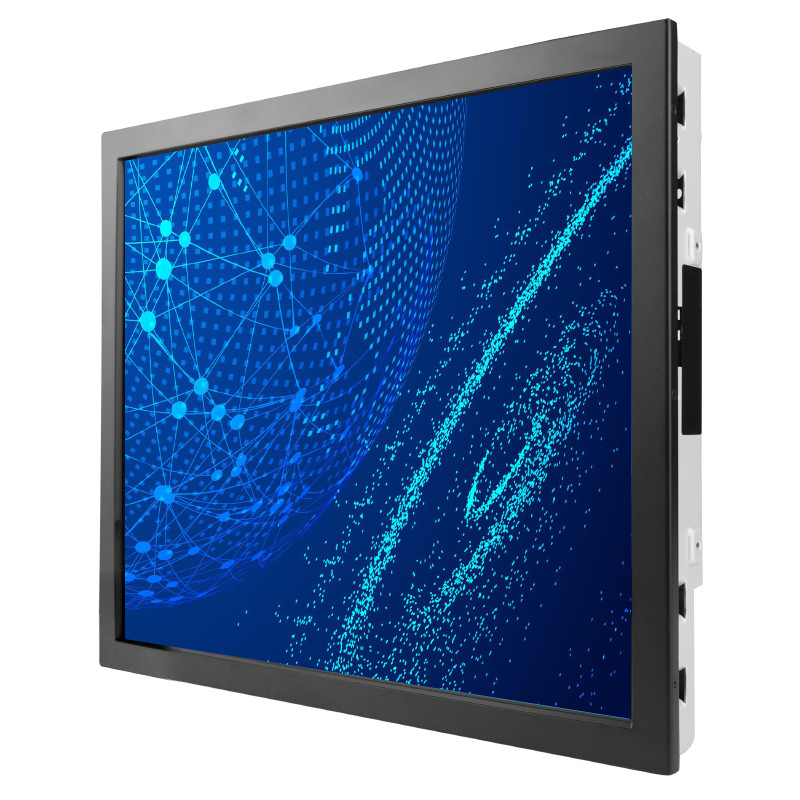

19 Inch Infrared Touch Monitor Self-Service ATM Kiosk Indoor Outdoor
Infrared Touch Monitor Main Features
With Infrared touch technology, 1- 40 points are optional
IP65 surface waterproof, dust proof and vandal proof
High quality panel with high resolution, high contrast ratio and wide viewing angle
Multiple mounting options include VESA mount, horizontal vertical brackets mount
The Infrared Touch Monitor has VGA interface, other interfaces can be customized
The Infrared Touch Monitor Support system: XP,WIN7,WIN8,WIN10, Linux, Android
Other sizes are offered (15''- 86'')
Infrared Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0190U-IR3W(P/N:KOT-190C-025) | |
Series | OT | |
Display Type | 5:4 Ratio 19" TFT-LCD | |
Active Area | 376.32*301.06(mm) | |
Monitor Dimensions (W*H*D) | 420*345*52.5(mm) | |
Suggested Resolution | 1280x1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 225cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Video Input | VGA | |
Frequency (H/V) | 37.9 -80KHz/ 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Weight（N.W/G.W） | 10.17Kg(1pcs)/23.42Kg (2pcs in one package) | |
Package dimensions | 530*250*460(mm) (2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 19"Infrared touch screen |
Response Time | ≤32ms |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 378*303(mm) |
Thickness | 9±1(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Service:
1. Warranty: One year .
2. After-sales Service: For the user questions or machine fault,we will arrange engineer provide remote-control technical support and maintenance services for you at any time.
3. Product Quality Assurance: Our products had gone through authoritative evaluation, approves CE, RoHS certification, and strict test before shipment.
4. After-sales Service Team: The after-sales service center is equipped with a professional technical service team with abundant experience in maintenance and support.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer, founded in 2006, located in Shenzhen, China.
2. What's your MOQ for the Infrared Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the Infrared Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal,Credit card, and Alipay.(L/C can be negotiable.)
6. What is your delivery time for the Infrared Touch Monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
