Open Frame IP65 Infrared Touch Monitor Front Frame Waterproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Infrared Touch Monitor | Display Type | 16:9 Ratio 21.5" TFT-LCD |
|---|---|---|---|
| Suggested Resolution | 1920x1080 @ 60Hz | Video Input | VGA/DVI |
| Brightness | 250 Cd/m² | Viewing Angle | 85/85, 80/80 |
| Contrast Ratio | 1000:1 | Certificates | CCC, UL, FCC, CE, CB, RoHS |
| Operating Temperature | 0°C To 50°C | Power Consumption | 30 W |
| Response Time | 16 Ms | Screen Size | 21.5 Inch |
| Storage Temperature | -20°C To 60°C | Touch Interface | USB |
| Touch Technology | Infrared | ||
| High Light | Open Frame Infrared Touch Monitor,Front Frame Infrared Touch Monitor,IP65 IR touch screen monitor | ||
Product Description

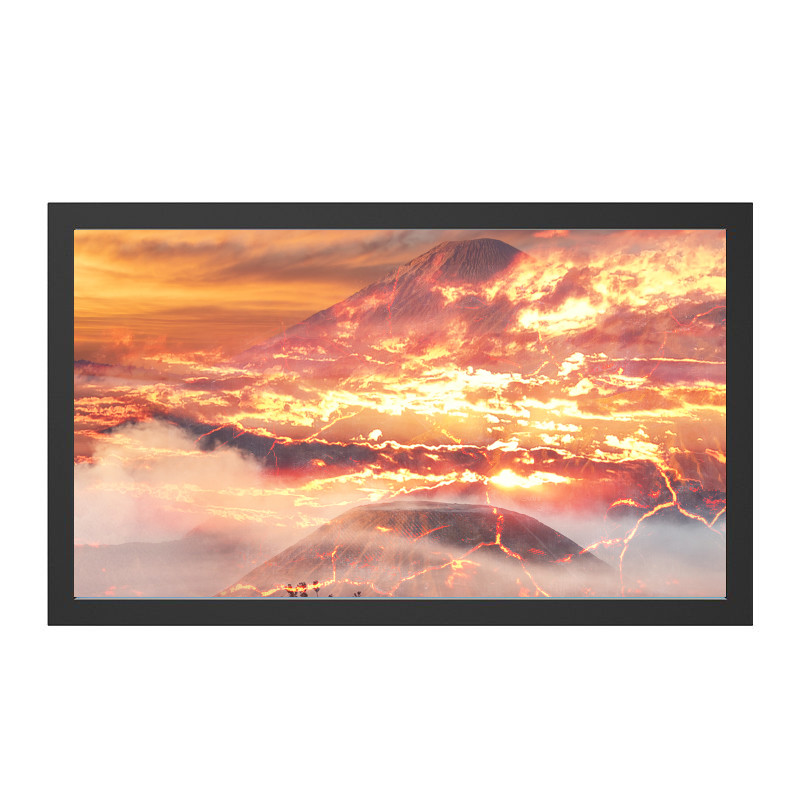

21.5'' IR Touch Monitor Open Frame IP65 Front Frame Waterproof
This IR touch monitor has main features as following: 16:9 ratio display, 1920*1080 high resolution, 1000:1 high contrast ratio. This industrial grade IR touch monitor comes with high-quality, IP65 front frame water-proof, anti-vandal functions. What's more, it supports multi-touch and can be easily calibrated for accurate touch input detection. Besides, with over 40 R&D professional engineers, OEM and ODM services are welcomed. And other sizes are optional(15-65").
Infrared Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0215U-IR3P (P/N:KOT-215C-007) | |
Series | OT | |
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 478*270(mm) | |
Monitor Dimensions (W*H*D) | 520*312*45.8(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 225cd/m² | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 40～80KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 17.25Kg(2pcs)/20.5Kg( 2pcs in one package) | |
Package dimensions | 605*195*400(mm)( 2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 21.5" Infrared touch screen |
Touch input | USB |
Response Time | ≤32ms |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 478*270(mm) |
Thickness | 9±0.2(mm) |
Input Voltage | DC 5V±5% |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of IR Touch Monitor
1. High durability: IR touch monitors are designed to withstand heavy usage and can handle millions of touch inputs. They are resistant to scratches, dust, and water, making them ideal for use in high-traffic areas.
2. High accuracy: IR touch monitors offer a high level of accuracy when it comes to touch input detection. This makes them suitable for applications that require precise touch inputs, such as drawing and design software.
3. Multi-touch support: IR touch monitors can detect multiple touch inputs simultaneously, allowing for multi-touch gestures such as pinch-to-zoom and two-finger scrolling.
4. No pressure required: IR touch monitors do not require any pressure to detect touch inputs. This makes them easier to use for people with disabilities or those who have difficulty applying pressure.
5. Easy calibration: IR touch monitors can be easily calibrated to ensure accurate touch input detection. This makes them more user-friendly and reduces the need for maintenance.
6. Compatibility: IR touch monitors are compatible with a wide range of operating systems, including Windows, Mac, and Linux. This makes them versatile and suitable for a variety of applications, including gaming, education, and business.
FAQ:
1.What is your payment method?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2.Do you give any discount for the IR touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
3.What are the shipping ways?
We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
