IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks

IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks
IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks
Place of Origin Shenzhen，China
Brand Name KeeTouch
Certification CCC, UL, FCC, CE, CB, RoHS
Model Number KOT-0190U-IR3W KOT-190P-042
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details two pieces per carton
Delivery Time 7-15 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000 Piece/Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 19'' Infrared Touch Monitor Display Type 19＂Active Matrix TFT-LCD
Suggested Resolution 1280×1024@60Hz Viewing Angle 85/85, 80/80
Operation Temp 0～50°C Storage Temp -20～60°C
Regular Warranty 1 Year Touch Input USB
High Light

FCC Certified Infrared Touch Monitor

,

Infrared Touch Monitor For Kiosks

,

IR Waterproof Touch Monitor
Leave a Message
Product Description

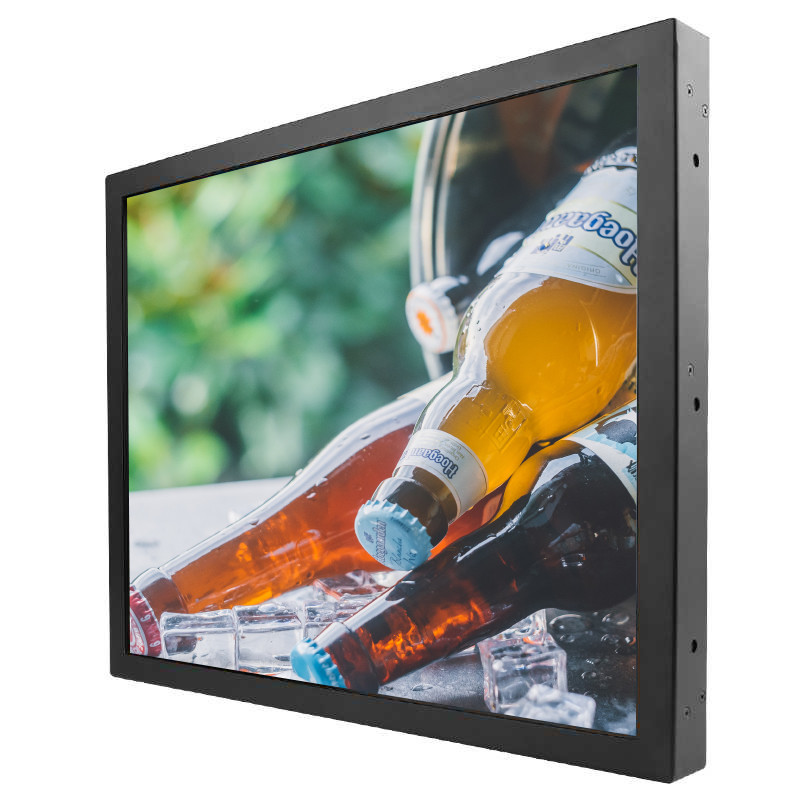

19 inch Infrared Touch Monitor IP65 Waterproof for Kiosks





Description of IR Touch Monitor



This 19 inch IR touch monitor has main features as following: 1280*1024 high resolution, 1000:1 high contrast ratio, IP65 waterproof, dust-proof and vandal-proof along with wide viewing angle. This industrial grade IR touch monitor comes with high-quality image. There are multiple mounting options including VESA mount, horizontal and vertical brackets mount. Moreover, other sizes are can be offered (7’’- 43’’).



Infrared Touch Monitor Specifications



Model No. KOT-0190U-IR3W
Series OT
Display Type 19＂Active Matrix TFT-LCD
Display Active Area 14.8＂(377mm)×11.9＂(301mm)
Suggested Resolution 1280×1024@60Hz
Support Colors 16.7M
Response Time(Typ.) 16ms
Contrast Ratio(Typ.) 1000:1
Video Input Analog RGB
Frequency(H/V) 30～80KHz / 60～75Hz
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operation Temp: 0～50°C
Storage Temp: -20～60°C
Operation RH: 20%～80%
Storage RH: 10%～90%
MTBF 50,000 Hours
LED Back light Life(Typ.) 50,000 Hours
Weight(N.W/G.W) N.W :5.85Kg (Single)
Power Consumption 15W Max.
Standby power consumption 0.95W
Mount Interface 1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical(Standard mount brackets are supplied)
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch screen Type Keetouch 19" IR Touch Mointor
Support System WinXP,Win7,Win8,Linux
Touch System Interface Having USB interface
Touch Response time 16ms
Regular Warranty 1 year



Infrared Touch Monitor Mechanical Dimensions







IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks 0



Applications

  • Retail
  • Gaming
  • Kiosk
  • self-service
  • Finance
  • Transit
  • Conference
  • Education
  • Healthcare
  • public service
  • e-commerce
  • Hotels
  • restaurants

IP65 Waterproof 19 Inch Infrared Touch Monitor For Kiosks 1



Advantages of IR Touch Monitor



1. High accuracy: IR touch monitors offer a high level of accuracy when it comes to touch input detection. This makes them suitable for applications that require precise touch inputs, such as drawing and design software.



2. Multi-touch support: IR touch monitors can detect multiple touch inputs simultaneously, allowing for multi-touch gestures such as pinch-to-zoom and two-finger scrolling.



3. No pressure required: IR touch monitors do not require any pressure to detect touch inputs. This makes them easier to use for people with disabilities or those who have difficulty applying pressure.





FAQ:



1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.



2. What’s your MOQ for the IR Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the IR Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
