1000:1 Contrast Ratio 17'' IR Touch Monitor Open Frame Touch Display
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pure LCD Panel Brightness | 250cd/m² | Touch Monitor Brightness | 135cd/m² |
|---|---|---|---|
| Regular Warranty | 1 Year | LED Back Light Life (Typ.) | ≥50,000 Hours |
| Suggested Resolution | 1280*1024 @ 60Hz | Video Input | VGA/DVI |
| Operating Temp. | 0～50°C | Storage Temp. | -20～60°C |
| High Light | 17'' IR Touch Monitor,Vandal Proof IR Touch Monitor,FCC Infrared Touch Monitor | ||
Product Description

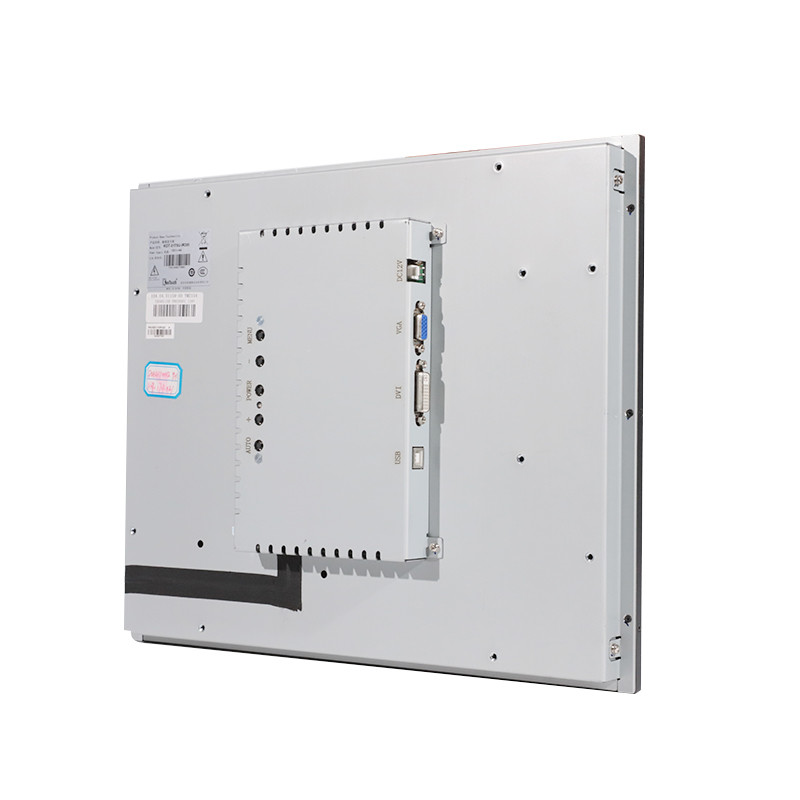

17'' IR Touch Monitor 1000:1 Contrast Ratio Open Frame Touch Display
Infrared Touch Monitor Main Features
This 17 inch IR touch monitor comes with Infrared touch technology, high durability, high accuracy and supports great interactive experience. This product is industrial touch monitor, with IP65 front frame waterproof, vandal-proof and dust-proof functions. DVI&VGA interfaces and USB are matched for use. Support multiple mounting options, including VESA mount, horizontal or vertical brackets mount
Infrared Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0170U-IR3W(KOT-170P-021) | |
| Series | OT | |
| Display Type | 5:4 Ratio 17" TFT-LCD,LED backlight | |
| Active Area | 337.3*270.3(mm) | |
| Monitor Dimensions (W*H*D) | 381*313*52(mm) | |
| Support Colors | 16.7M | |
| Response Time (Typ.) | 5ms | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply | Type: External brick | |
| Display voltage: DC 12V±5% | ||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | ||
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
| Mount Interface | 1.VESA 75mm and 100mm | |
| 2.Mount bracket, horizontal or vertical mount | ||
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Touch Screen | ||
| Touch Type | 17" Infrared touch screen | |
| Touch input | USB | |
| Response Time | 20ms | |
| Hardness | 7H | |
| Light Transmittance | ≥90% | |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android | |
| Active Area | 339*271(mm) | |
| Thickness | 9±1(mm) | |
| Touch Test | ≥50,000,000 times | |
| Input Voltage | DC 5V±5% | |
Touch Portable Monitor Applications
55 inch touch screen display are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of IR Touch Monitor
1. No pressure required: ir touch screen overlay do not require any pressure to detect touch inputs. This makes them easier to use for people with disabilities or those who have difficulty applying pressure.
2. Easy calibration: open frame tft monitor can be easily calibrated to ensure accurate touch input detection. This makes them more user-friendly and reduces the need for maintenance.
3. Compatibility: infrared touch screen computer are compatible with a wide range of operating systems, including Windows, Mac, and Linux. This makes them versatile and suitable for a variety of applications, including gaming, education, and business.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions since 2006.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ
1. Can you produce the IR Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
3. What is your delivery time for the infrared touch screen frame ?
3-5 work days for inventory orders, 7-15 business days for bulk production.
