OEM And ODM 15'' Infrared Touch Monitor IP65 Waterproof Display
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pure LCD Panel Brightness | 420cd/㎡ | Touch Monitor Brightness | 378cd/㎡ |
|---|---|---|---|
| Horizontal Viewing Angle (left/right) | 80°/80° | Vertical Viewing Angle (left/right) | 80°/80° |
| Operating Temp. | 0～50°C | Operating RH | 20%～80% |
| Storage Temp. | -20～60°C | Storage RH | 10%～90% |
| High Light | OEM IR Touch Monitor,ODM Infrared Touch Monitor,IP65 Waterproof Infrared Touch Monitor | ||
Product Description

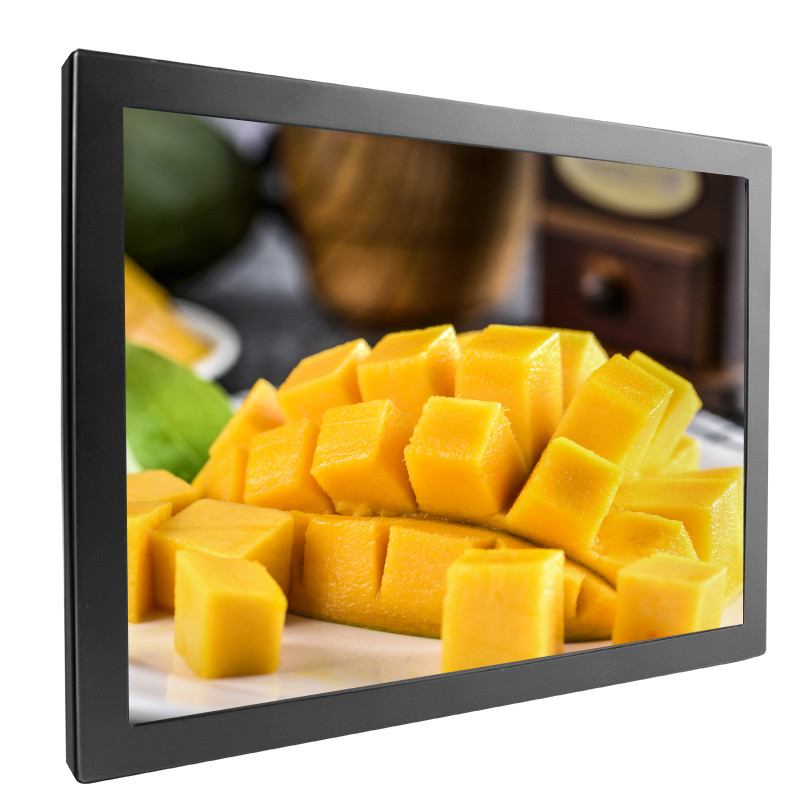

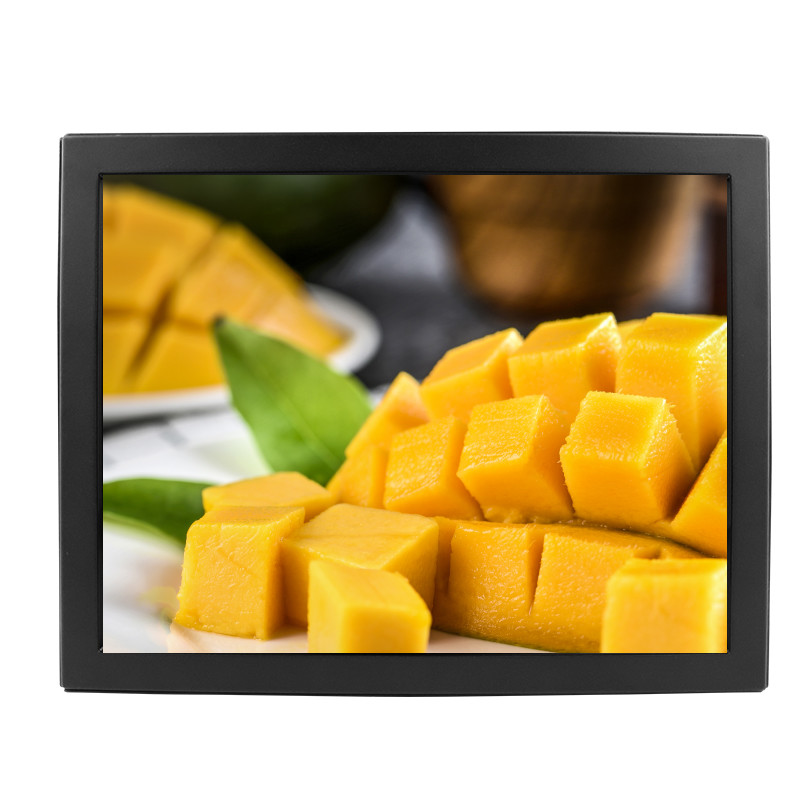

15'' IR Touch Monitor Open Frame Touch Display VGA DVI
Description of Infrared touchscreen display

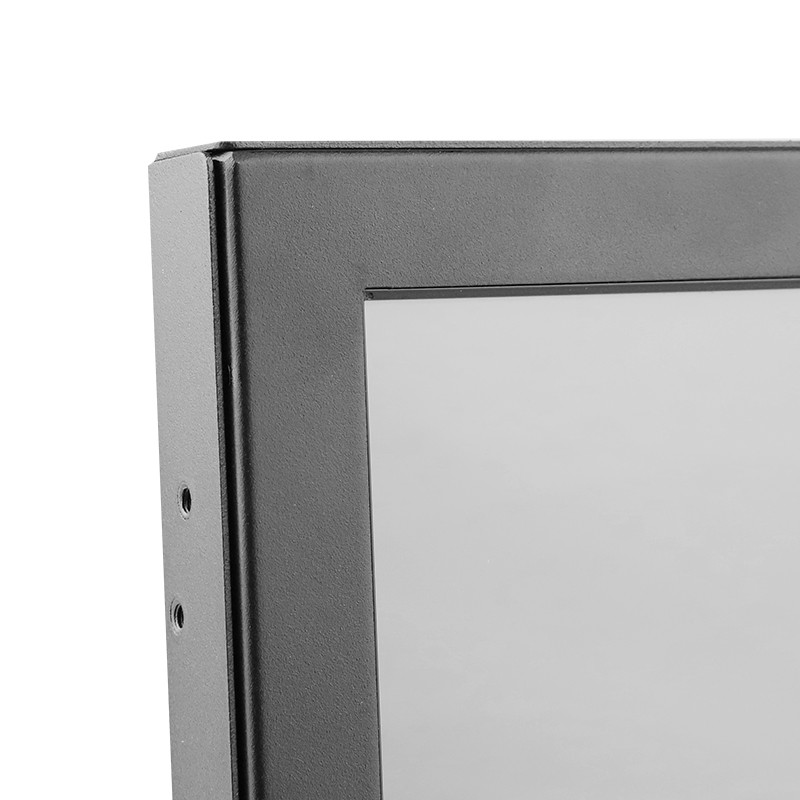

This 15 inch IR touch monitor comes with Infrared touch technology, high durability, high accuracy and supports excellent interactive experience. It is industrial grade IR touch monitor, IP65 front frame waterproof, vandal-proof and dust-proof function. There are DVI&VGA interfaces and USB port for use. With R&D engineers, OEM and ODM are welcomed.
Infrared Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150U-IR3W (P/N:KOT-150W-018) | |
Series | OT | |
Display Type | 4:3 Ratio 15" TFT-LCD | |
Active Area | 304.128*228.096(mm) | |
Monitor Dimensions (W*H*D) | 351*275*55(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 420cd/m2 |
With Touch Monitor | 378cd/m2 | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | 80°/80° | |
80°/80° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Weight（N.W/G.W） | 3Kg(1pcs)/6.7Kg(2pcs in one package) | |
Package dimensions | 429*183*356(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |

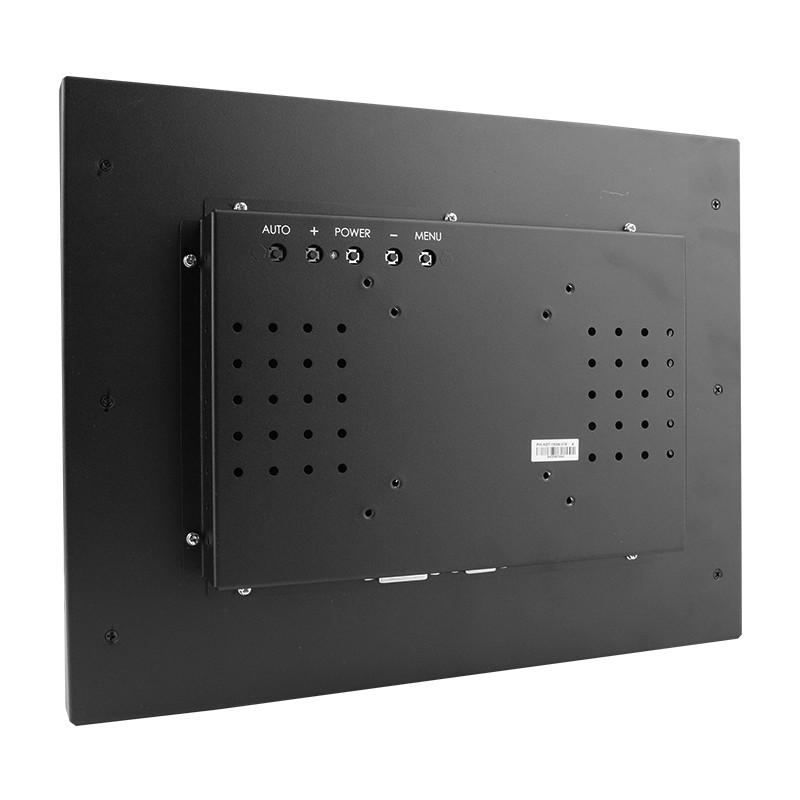

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Infrared touch screen |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8 |
Active Area | 306*230(mm) |
Thickness | 9±1(mm) |
Touch Test | 50,000,000 times |
Input Voltage | 5V |

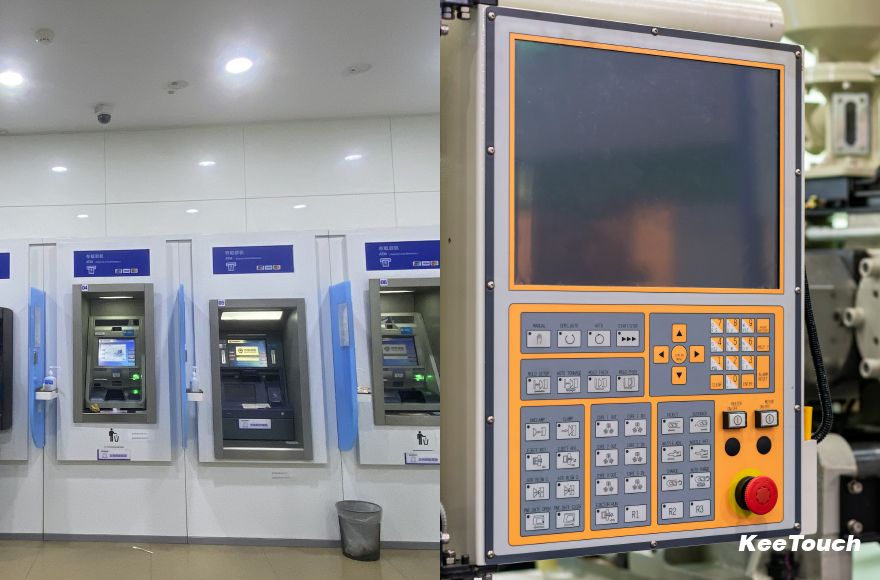

Infrared interactive display Applications
Infrared frame touch monitors are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of Best infrared touch monitor
1. No pressure required: IR touch monitors do not require any pressure to detect touch inputs. This makes them easier to use for people with disabilities or those who have difficulty applying pressure.
2. Easy calibration: Infrared touch monitor for digital signage can be easily calibrated to ensure accurate touch input detection. This makes them more user-friendly and reduces the need for maintenance.
3. Compatibility: Infrared touch monitor for Windows 10 are compatible with a wide range of operating systems, including Windows, Mac, and Linux. This makes them versatile and suitable for a variety of applications, including gaming, education, and business.
Why choose us?
1. We are a leading Infrared touch monitor manufacturers of industrial grade touch products and touch solutions since 2006.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ
1. Can you produce the Infrared touch monitor with anti-glare coating according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
3. What is your delivery time for the IR Touch Monitor ?
3-5 work days for inventory orders, 7-15 business days for bulk production.
