IP65 Waterproof 15'' IR Touch Monitor Dust Proof And Vandal Proof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pure LCD Panel Brightness | 420cd/㎡ | Touch Monitor Brightness | 378cd/㎡ |
|---|---|---|---|
| Horizontal Viewing Angle (left/right) | 80°/80° | Vertical Viewing Angle (left/right) | 80°/80° |
| Suggested Resolution | 1024*768 @ 60Hz | Support System | XP,WIN7,WIN8,Andriod |
| Regular Warranty | One Year | Video Input | VGA/DVI |
| High Light | IP65 Waterproof IR Touch Monitor,Dust Proof IR Touch Monitor,Vandal Proof Infrared Touch Monitor | ||
Product Description

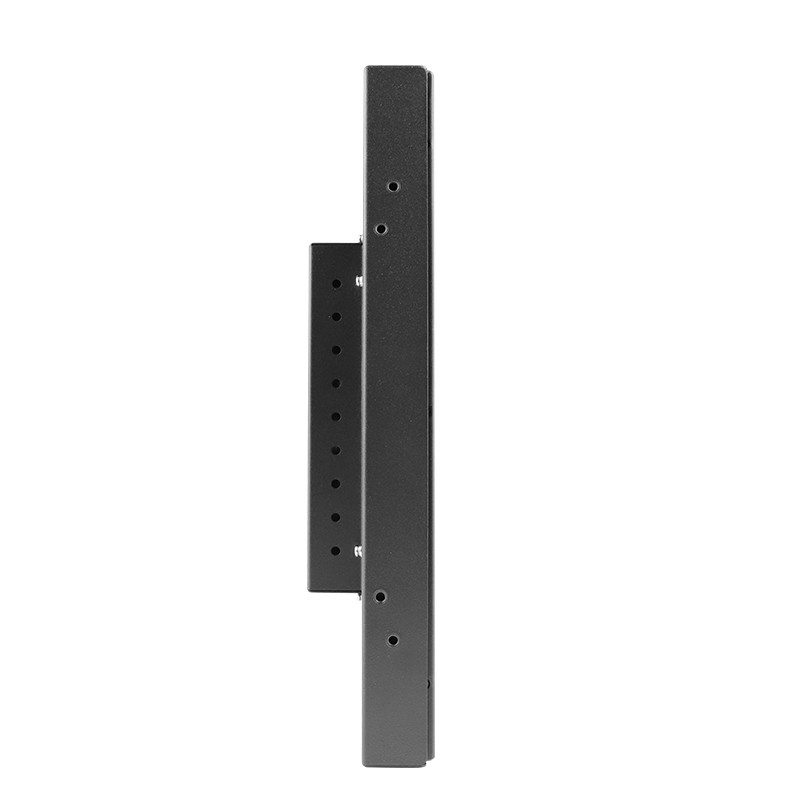

15'' IR Touch Monitor IP65 Waterproof 4:3 Ratio Display
Description of IR Touch Monitor
This ir touch screen panel comes with main features as below: 4:3 ratio display type, 1024*768 resolution, 1000:1 high contrast ratio, IP65 waterproof, dust-proof and vandal-proof along with wide viewing angle. This industrial touch monitor has high-quality image. With over 40 professional R&D engineers, we support customized service. In addition, other sizes can be for your option (7’’- 43’’).
Infrared Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150U-IR3W (P/N:KOT-150W-018) | |
Series | OT | |
Display Type | 4:3 Ratio 15" TFT-LCD | |
Active Area | 304.128*228.096(mm) | |
Monitor Dimensions (W*H*D) | 351*275*55(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 420cd/m2 |
With Touch Monitor | 378cd/m2 | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | 80°/80° | |
80°/80° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Weight（N.W/G.W） | 3Kg(1pcs)/6.7Kg(2pcs in one package) | |
Package dimensions | 429*183*356(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Infrared touch screen |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 7H |
Light Transmittance | ≥90% |
Support System | XP,WIN7,WIN8 |
Active Area | 306*230(mm) |
Thickness | 9±1(mm) |
Touch Test | 50,000,000 times |
Input Voltage | 5V |

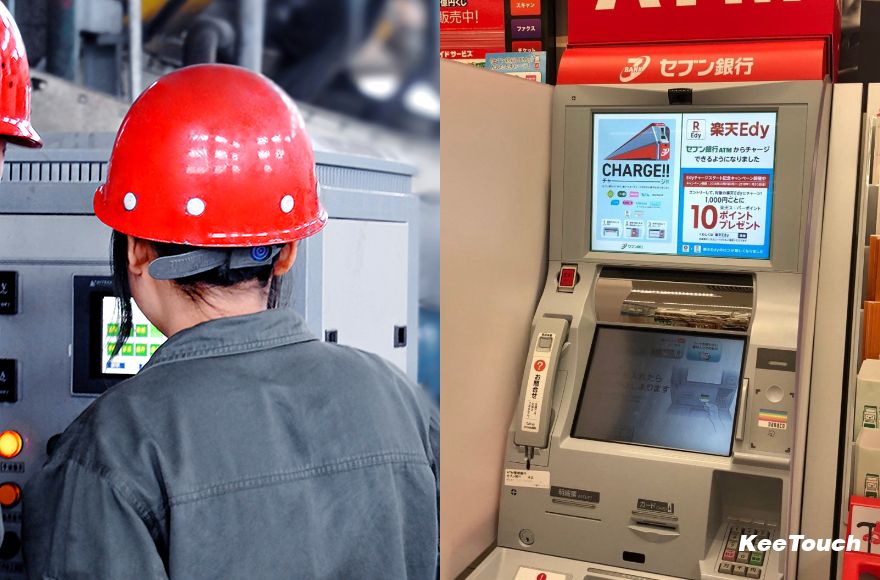

Infrared touch monitor commercial Applications
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of Best infrared touch monitor
1. High durability: Infrared touch monitor for gaming are designed to withstand heavy usage and can handle millions of touch inputs. They are resistant to scratches, dust, and water, making them ideal for use in high-traffic areas.
2. High accuracy: Infrared touch screen monitor offer a high level of accuracy when it comes to touch input detection. This makes them suitable for applications that require precise touch inputs, such as drawing and design software.
3. Multi-touch support: Infrared touch monitor for education can detect multiple touch inputs simultaneously, allowing for multi-touch gestures such as pinch-to-zoom and two-finger scrolling.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.
2. What’s your MOQ for the IR Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the IR Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
