15 Inch PCAP Industrial Touchscreen Computer All In One 5 : 4 Ratio Anti Vandal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen | 15 Inch | Series | All-in-One Touch Computer |
|---|---|---|---|
| Display Type | 5:4 Ratio 15" TFT-LCD | Active Display Area | 304.1*228.1 (mm) |
| Suggested Resolution | 1024*768 @ 60Hz | Touch Surface Hardness | 6H |
| Touch Screen Transparency | 85% | Product Name | Industrial Touchscreen Computer |
| High Light | 15Inch Industrial Touchscreen Computer Anti Vandal,IP65 Industrial Touchscreen Computer AntiVandal,industrial all one touchscreen computer AntiVandal | ||
Product Description
15 Inch PCAP All-In One Touch Computer 5:4 Ratio Anti-Vandal
Industrial Touchscreen Computer Main Features
With PCAP touch technology, up to 10 points touchHigh-quality anti-vandal industrial touchscreen computer with high resolution
Freescale i.HX6Q (4 Core) CPU, other configurations can be customized
A series of I/O interfaces support various third-party peripherals
Multiple mounting options include VESA mount, horizontal vertical brackets mount
Support system: Windows and Android optional
Other sizes can be offered (7''- 43'')
Industrial Touchscreen Computer Specifications
Complete Machine | ||
Model No. | KOT-0150U-CA4P (P/N:KTP-150M-002-02) | |
Series | All-in-One Touch Computer | |
Display Type | 5:4 Ratio 15" TFT-LCD | |
Active Area | 304.1*228.1 (mm) | |
Monitor Dimensions (W*H*D) | 360.5*292*72 (mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
With Touch Monitor | 255cd/m2 | |
Response Time (Typ.) | 25ms | |
Viewing Angle(Typ.at CR＞10)） | 80°/80° | |
70°/70° | ||
Contrast Ratio (Typ.) | 700:1 | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
Computer parameters | CPU | Freescale i.HX6Q（4 Core） |
RAM | Onboard memory: Support DDR3, 2GB(default); Onboard storage: 8GB(default) EMMC Flash | |
Interface | 4*USB, 1*HDMI, 5* serial port, LAN*1 | |
LVDS | LVDS*1 (dual channel),support 24Bit | |
HDMI | Support HDMI2.0, Max Resolution: 1080p@120Hz | |
LAN | RJ45（10/100/1000Mbps） | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Capacitive touch screens |
Touch input | USB |
Response Time | ≤8ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | Android/windows（optional） |
Active Area | 305.1*229.1 (mm) |
Thickness | 4.3±0.2 (mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications

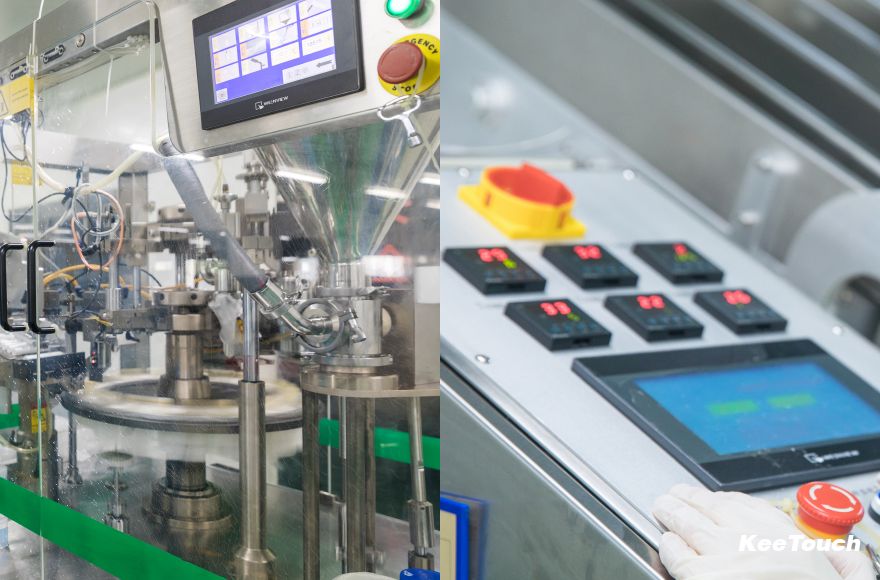

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.
2. What’s your MOQ for the industrial touchscreen computer?
Our minimum order quantity is 1pc only.
3. What is your warranty period for industrial touchscreen computer?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
6. What is your delivery time for the industrial touchscreen computer?
3-5 work days for inventory orders, 7-15 business days for bulk production.
