PCAP Touch Industrial Touchscreen Computer 21.5 Inch 1920x1080
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen | 21.5 Inch | Contrast Ratio | 3000:1(Typ.)/2000:1(Min.) |
|---|---|---|---|
| Suggested Resolution | 1280×800 | Response Time | 20(Typ.)/ 25(Max.) |
| I/O Interface | 1-COM, 1-Type_c, 2-USB, 1-RJ45, 1-HDMI, 1-DC 12V, 1-Audio, 1-SIM, 1-TF | Display Active Area | 476(H) X 268(V)mm |
| Touch Screen Transparency | 85% | Product Name | Industrial Touchscreen Computer |
| High Light | PCAP Industrial Touchscreen Computer 21.5Inch,RoHS PCAP Industrial Touchscreen Computer,1920x1080 industrial touch screen computer | ||
Product Description

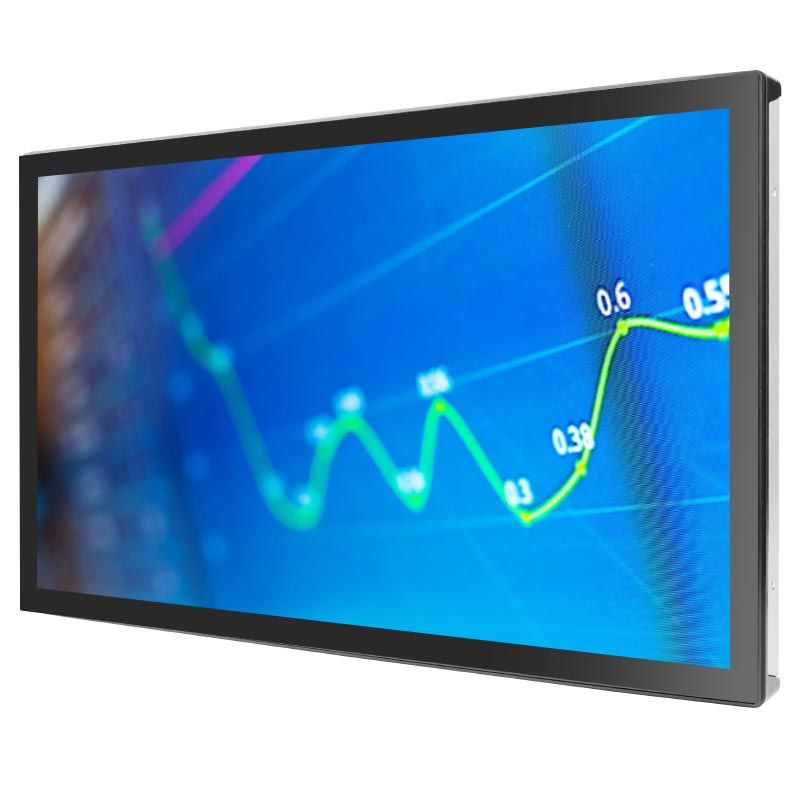

21.5 Inch Industrial Touchscreen Computer PCAP Touch 1920x1080
Industrial Touchscreen Computer Main Features
PCAP multi-touch industrial touchscreen computer, great interactive experience
High quality panel with high resolution, high contrast ratio and full viewing angle
Pure flat designed industrial touchscreen computer, IP65 surface waterproof
4 core Cortex-A17 CPU, other configurations can be customized
With various I/O interfaces, support a variety of third-party peripherals
Support system: Windows7, Windows 8, Windows10, Linux
Other sizes can be optional (7''- 43'')
Industrial Touchscreen Computer Specifications
Display | Screen | 21.5 inch |
Resolution | 1920 x 1080 | |
According to the proportion | 16:9 | |
Brightness | 212nit(Typ.)/170(Min.) | |
Contrast | 3000:1(Typ.)/2000:1(Min.) | |
Response Time | 20(Typ.)/ 25(Max.) | |
View angle | 89/89/89/89(Typ.)/80/80/80/80(Min.)(CR≥10) | |
Active Display Area | 476(H) x 268(V)mm | |
PC Configuration | CPU | 4 core Cortex-A17 |
Run | 2GB | |
Storage | 16G | |
Touch Screen | Touch Method | Capacitive Touch |
Touch Surface Hardness | 6H | |
Touch Screen Transparency | 85% | |
I/O interface | 1-COM, 1-Type_c, 2-USB, 1-RJ45, 1-HDMI, 1-DC 12V, 1-Audio, 1-SIM, 1-TF | |
Other parameters | Cooling System | Fanless |
Enclosure Material | Metal | |
Weight（N.W/G.W） | 5.5Kg(1pcs) / 12.3Kg(2pcs in one package) | |
Package dimensions | 605*395*200(mm)(2pcs in one package) | |
Waterproof Rating | IP65 ( Only for front panel ) | |
Power Consumption | ≤30W | |
Working Temperature | 0 ~ 50 °C | |
Storage Temperature | -20~60°C | |
Stroage Humidity | 20%~80% | |
Stroage Humidity | 10%~90% | |
Product Size | 515.8*307.3*52 (mm) | |
Warranty | 1 year | |
Certification | CCC, ETL, FCC, CE, CB, RoHS | |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.
2. What’s your MOQ for the industrial touchscreen computer?
Our minimum order quantity is 1pc only.
3. What is your warranty period for industrial touchscreen computer?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
6. What is your delivery time for the industrial touchscreen computer?
3-5 work days for inventory orders, 7-15 business days for bulk production.
