15 Inch PCAP Rugged Touch Screen PC , IP65 All In One Touch Screen Computer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen | 15 Inch | Series | All-in-One Touch Computer |
|---|---|---|---|
| Display Type | 5:4 Ratio 15" TFT-LCD | Active Display Area | 304.1*228.1 (mm) |
| Suggested Resolution | 1024*768 @ 60Hz | Touch Surface Hardness | 6H |
| Touch Screen Transparency | 85% | Product Name | Industrial Touchscreen Computer |
| High Light | PCAP Rugged Touch Screen PC,15 Inch Rugged Touch Screen PC,all in one touch computer IP65 | ||
Product Description

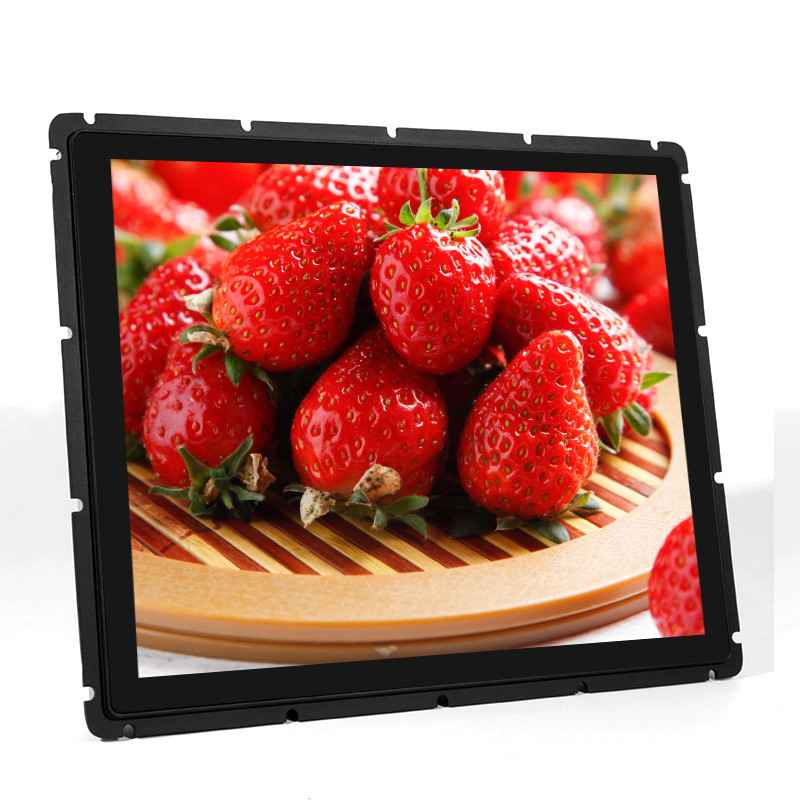

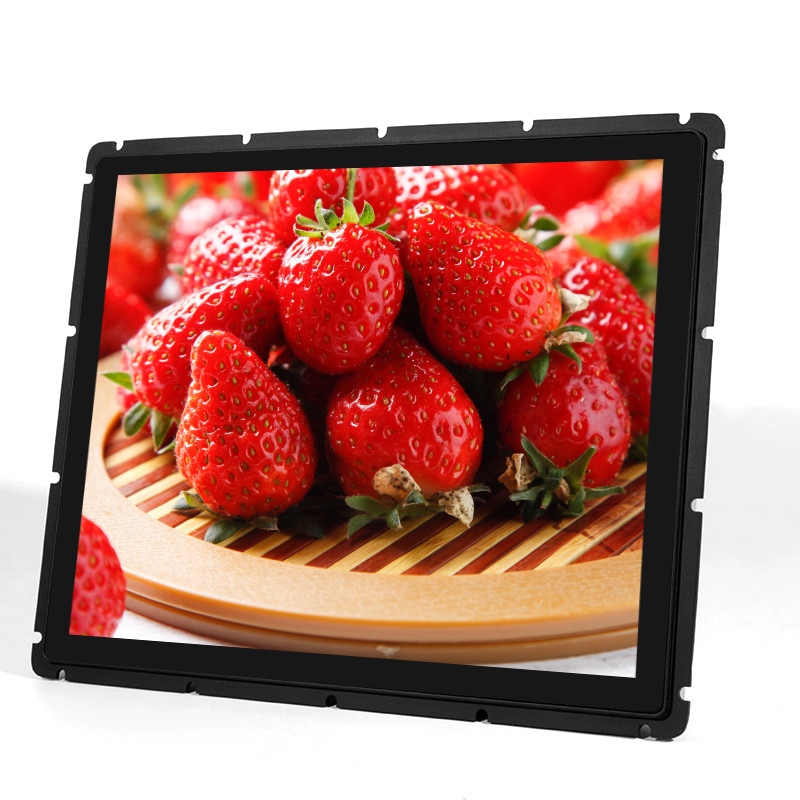

15 Inch PCAP All-In-One Touch Computer IP65 Rugged Touch Screen PC
Industrial Touchscreen Computer Main Features
High-quality anti-vandal industrial touchscreen computer with high resolution
Freescale i.HX6Q (4 Core) CPU, other configurations can be customized
A series of I/O interfaces support various third-party peripherals
Complete machine triple protection: explosion-proof, flameproof, moisture-proof
Support embedded,wall-mounted, rack-mounted, desktop, VESA mount
Industrial Touchscreen Computer Specifications
Complete Machine | ||
Model No. | KOT-0150U-CA4P (P/N:KTP-150M-002-02) | |
Series | All-in-One Touch Computer | |
Display Type | 5:4 Ratio 15" TFT-LCD | |
Active Area | 304.1*228.1 (mm) | |
Monitor Dimensions (W*H*D) | 360.5*292*72 (mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.2M | |
Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
With Touch Monitor | 255cd/m2 | |
Response Time (Typ.) | 25ms | |
Viewing Angle(Typ.at CR＞10)） | 80°/80° | |
70°/70° | ||
Contrast Ratio (Typ.) | 700:1 | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
Computer parameters | CPU | Freescale i.HX6Q（4 Core） |
RAM | Onboard memory: Support DDR3, 2GB(default); Onboard storage: 8GB(default) EMMC Flash | |

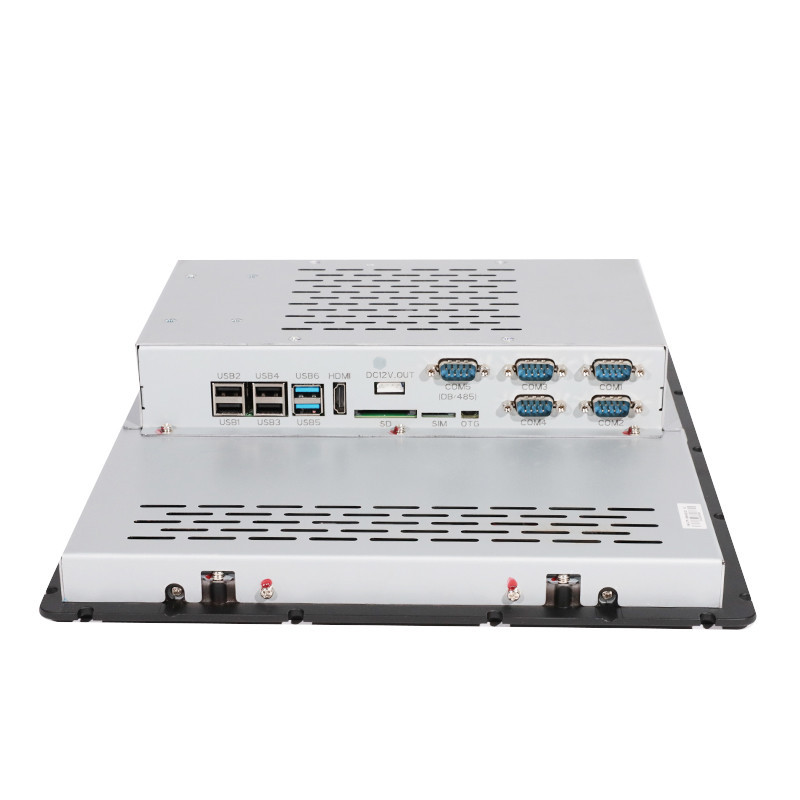

Interface | 4*USB, 1*HDMI, 5* serial port, LAN*1 | |
LVDS | LVDS*1 (dual channel),support 24Bit | |
HDMI | Support HDMI2.0, Max Resolution: 1080p@120Hz | |
LAN | RJ45（10/100/1000Mbps） | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Capacitive touch screens |
Touch input | USB |
Response Time | ≤8ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | Android/windows（optional） |
Active Area | 305.1*229.1 (mm) |
Thickness | 4.3±0.2 (mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications
Widely used in industries such as retail,vending, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart homes, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
Q: Are you a manufacturer?
A: Yes, KeeTouch is a professional manufacturer of touch products since 2006. Our factory is located in Shenzhen, China.
Q: What’s your MOQ?
A: Our minimum order quantity is 1pc only.
Q: What are the shipping ways?
A: We will ship the goods according to the customer’s requirements. For sample, normally by FedEx, DHL, UPS, and TNT. For bulk orders, by air or by sea.
Q: What is your warranty period?
A: Our regular warranty is 12 months for all the products, with a 2-3 years Warranty (optional).
Q: Do you give any discount?
A: We will do our utmost to support you with a competitive price, also good service will be offered.
