15.6 Inch Industrial Touchscreen Computer , 1920x1080 Fanless Touch Screen PC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen | 15.6 Inch | Contrast Ratio | 500:1(Typ.)/400:1(Min.) |
|---|---|---|---|
| Suggested Resolution | 1920 X 3(RGB) X 1080 | Response Time | 8 (Typ.)/ 16 (Max.) |
| Touch Method | Capacitive Touch | Touch Surface Hardness | 6H |
| Touch Screen Transparency | 85% | Product Name | Industrial Touchscreen Computer |
| High Light | 15.6Inch Industrial Touchscreen Computer,Fanless Industrial Touchscreen Computer,1920x1080 Fanless Touch Screen PC | ||
Product Description

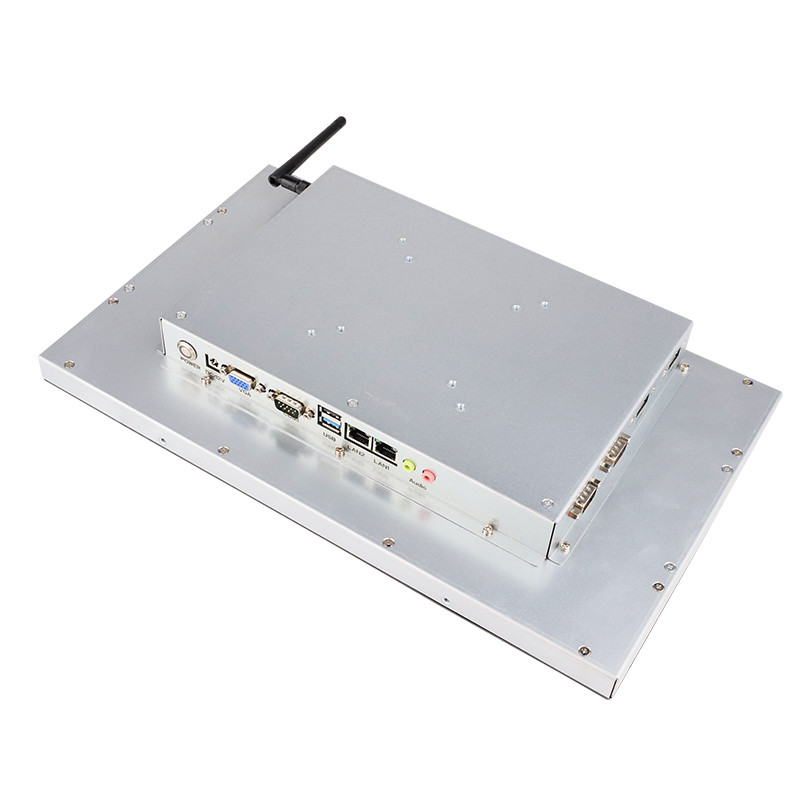

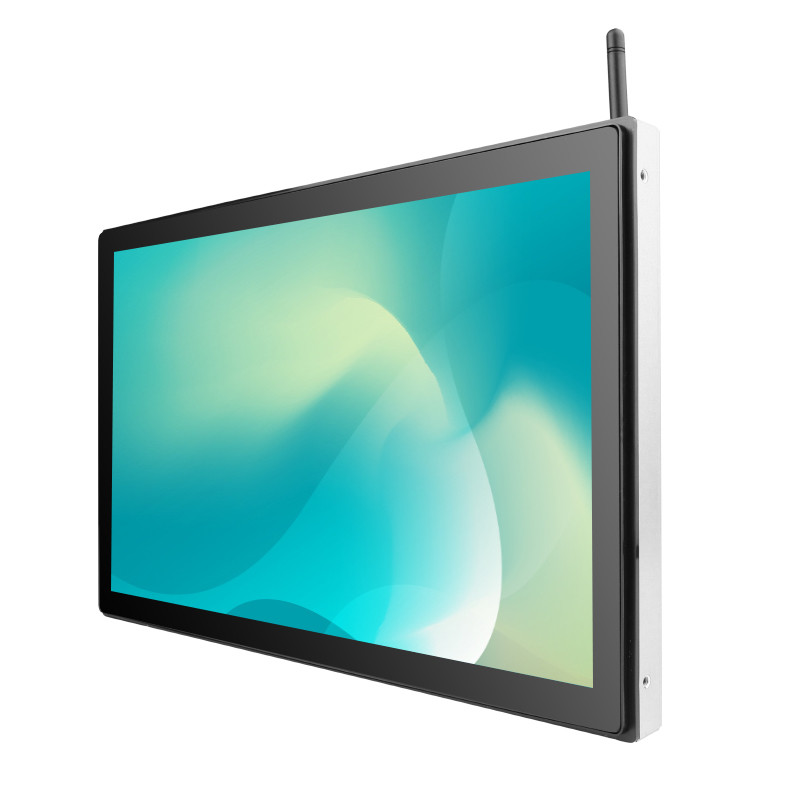

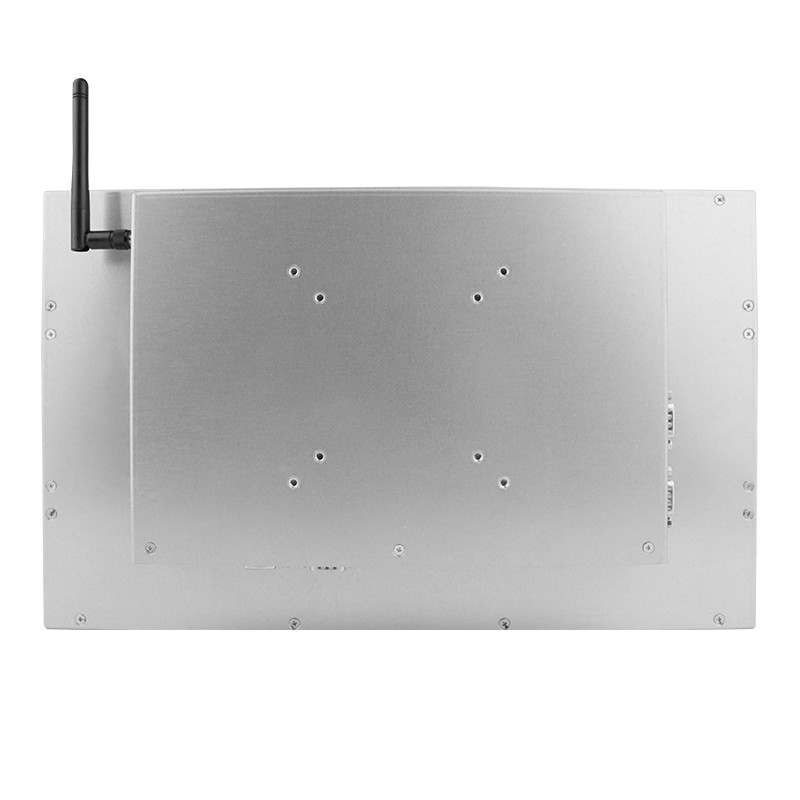

15.6 Inch Industrial Touchscreen Computer Fanless Touch Screen PC
Industrial Touchscreen Computer Main Features
Adopt 16:9 full HD 1920x1080 TFT LCD panel, multi-touch PCAP technology, sensitive and accurate
High-resolution industrial-grade touchscreen computer with a broad viewing angle
The industrial touchscreen computer's standard brightness is 340nits, high brightness version can be an option
Operating systems like Windows, Linux, and Raspberry Pi are workable on this panel PC
Certified with global certificates such as UL, CE, ROHS, FCC, TUV
Industrial Touchscreen Computer Specifications
KOT-0156U-CA4P(P/N:KTP-156M-003) | ||
Display | Screen | 15.6 inch |
Resolution | 1920 x 3(RGB) x 1080 | |
According to the proportion | 16:9 | |
Brightness | 340nit(Typ.)/265.6nit(Min.) | |
Contrast | 500:1(Typ.)/400:1(Min.) | |
Response Time | 8 (Typ.)/ 16 (Max.) | |
View angle | 70/70/60/60(Typ.)/60/60/45/50(Min.)(CR=10) | |
Active Display Area | 344.16(H) x 193.59(V)mm | |
PC Configuration | CPU | Intel® Celeron® J1900, clock speed 2G, Quad-core, TDP 10W |
Memory | Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB | |
Storage | 1 * SATA2.0 + 1 * mSATA [2] | |
BIOS | AMI UEFI BIOS | |
Touch Screen | Touch Method | Capacitive Touch |
Touch Surface Hardness | 6H | |
Touch Screen Transparency | 85% | |
I/O interface | 1-VGA, 4-USB,2-RJ45,3-DB9, 1-DC 12V,1-Audio/Mic, 1-power | |
Other parameters | Cooling System | Fanless |
Enclosure Material | Metal | |
Weight（N.W/G.W） | 3.9Kg(1pcs) / 9.3Kg(2pcs in one package) | |
Package dimensions | 545*150*400(mm)(2pcs in one package) | |
Waterproof Rating | IP65 ( Only for front panel ) | |
Power Consumption | ≤30W | |
Working Temperature | 0 ~ 50 °C | |
Storage Temperature | -20~60°C | |
Stroage Humidity | 20%~80% | |
Stroage Humidity | 10%~90% | |
Product Size | 382*234*56 (mm) | |
Warranty | 1 year | |
Certification | CCC, ETL, FCC, CE, CB, RoHS | |
Applications
Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
Business Organizations: supermarkets, large-scale shopping malls, exclusive agencies, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, and pharmacies.
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainment: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, and golf courses.
FAQ
Q: Are you a manufacturer?
A: Yes, KeeTouch is a professional manufacturer of touch products since 2006. Our factory is located in Shenzhen, China.
Q: What’s your MOQ?
A: Our minimum order quantity is 1pc only.
Q: Do you plan to develop worldwide distributors or agents?
A: Of course. Now we have branches/agents in Germany, Brazil, and India. Welcome to talk more about the distributors' and agents' business.
Q: What is your warranty period?
A: Our regular warranty is 12 months for all the products, with a 2-3 years Warranty (optional).
Q: What is your delivery time?
A: 3-5 work days for inventory orders, 7-15 business days for bulk production.
