32 Inch AIO Touch Screen Industrial Panel PC 1000cd/M2 Brightness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen | 31.5 Inch | Series | All In One |
|---|---|---|---|
| Display Type | 16:9 Ratio 31.5" TFT-LCD | Active Display Area | 698.4x 392.85mm |
| Suggested Resolution | 1920x1080 @ 60Hz | Touch Surface Hardness | 6H |
| Touch Screen Transparency | 85% | Product Name | Industrial Touchscreen Computer |
| High Light | 32Inch Touch Screen Industrial Panel PC,AIO Touch Screen Industrial Panel PC,1000cd/M2 industrial panel pc touchscreen | ||
Product Description

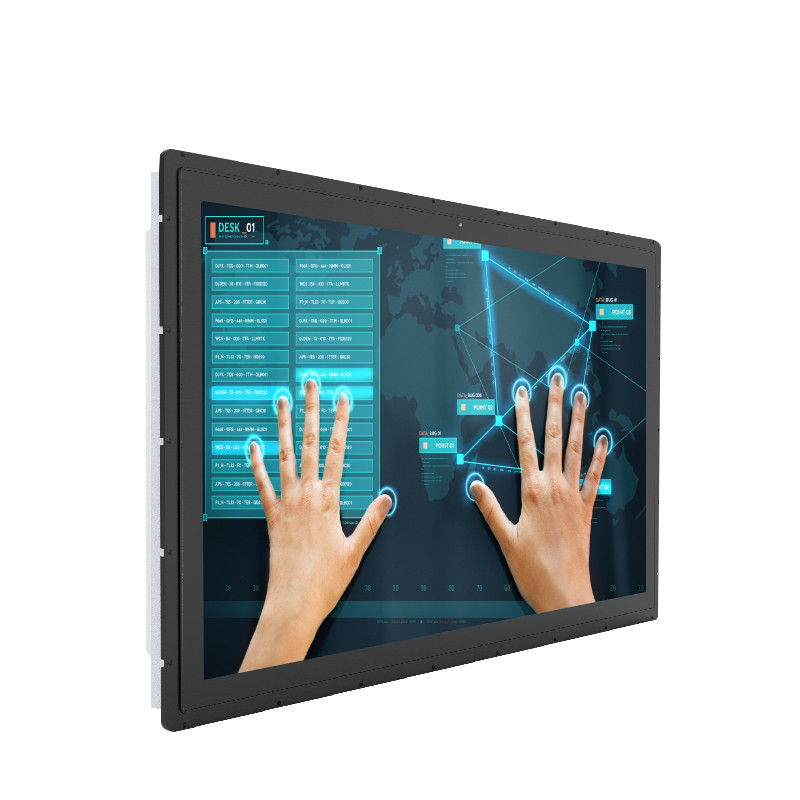

32 Inch Industrial Touchscreen Computer High Brightness PC
Industrial Touchscreen Computer Main Features
Industrial grade LCD panel, high PC configurations
Different sizes from 7inch to 55inch are optional
Configurations can be customized per customers’ requirements
A series of I/O interfaces support various third-party peripherals
Industrial touch screen computer supports embedded,wall-mounted, rack-mounted, desktop, VESA mount
Industrial Touchscreen Computer Specifications
Complete Machine | ||
Model No. | KOT-0315U-CA4P (P/N:KTP-320M-002-04) | |
Series | All in one | |
Display Type | 16:9 Ratio 31.5" TFT-LCD | |
Active Area | 698.4*392.85 (mm) | |
Monitor Dimensions (W*H*D) | 780*466*83 (mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 1200cd/m2 |
With Touch Monitor | 1000cd/m2 | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 3000:1 | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 24V/ 5A Computer voltage: DC 12V/ 5A Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -10～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥50,000 Hours | |
LED Back Light Life (Typ.) | ≥50,000 Hours | |
Mount Interface | Mount bracket, horizontal or vertical mount | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 31.5" Capacitive touch screens |
Touch input | USB |
Response Time | ≤14ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 705.00*397.85(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications

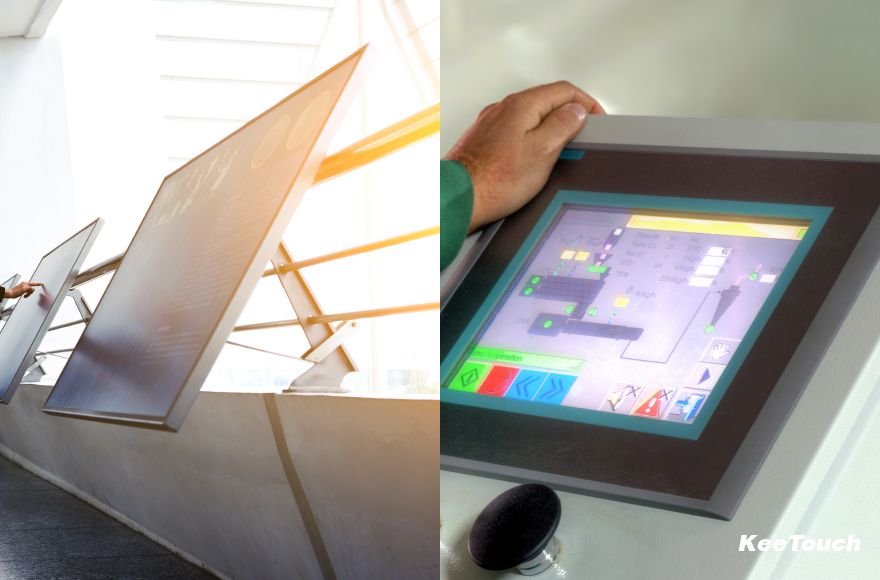

Industrial touch computers can be widely seen in the industries like retail, gaming, kiosk, self-service, finance, transit, conference, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart homes, entertainment, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer since 2006, located in Shenzhen, China.
2. What’s your MOQ?
Our minimum order quantity is 1pc only.
3. What package do you provide?
Our package usually is a carton.
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
5. What are the shipping ways?
We will ship the goods according to the customer’s requirements. For sample, normally by FedEx, DHL, UPS, and TNT. For bulk orders, by air or by sea.
