330 Nits Ip65 Industrial Monitor , 10.1" All In One Touch Computer

330 Nits Ip65 Industrial Monitor , 10.1
330 Nits Ip65 Industrial Monitor , 10.1 330 Nits Ip65 Industrial Monitor , 10.1 330 Nits Ip65 Industrial Monitor , 10.1 330 Nits Ip65 Industrial Monitor , 10.1
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKTP-101M-002
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Detailscarton box
Delivery Time7-15 work days
Payment TermsL/C, T/T, Western Union
Supply Ability2000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Regular Warranty1 YearContrast Ratio600:1
Suggested Resolution1280×800Waterproof RatingIP65 ( Only For Front Panel )
Working Temperature0 ~ 50 °CWorking Humidity20%~80%
Power Consumption≤20WProduct NameIndustrial Touchscreen Computer
High Light

330 Nits Ip65 Industrial Monitor

,

10.1" Ip65 Industrial Monitor

,

Ip65 All In One Touch Computer

Leave a Message
Product Description

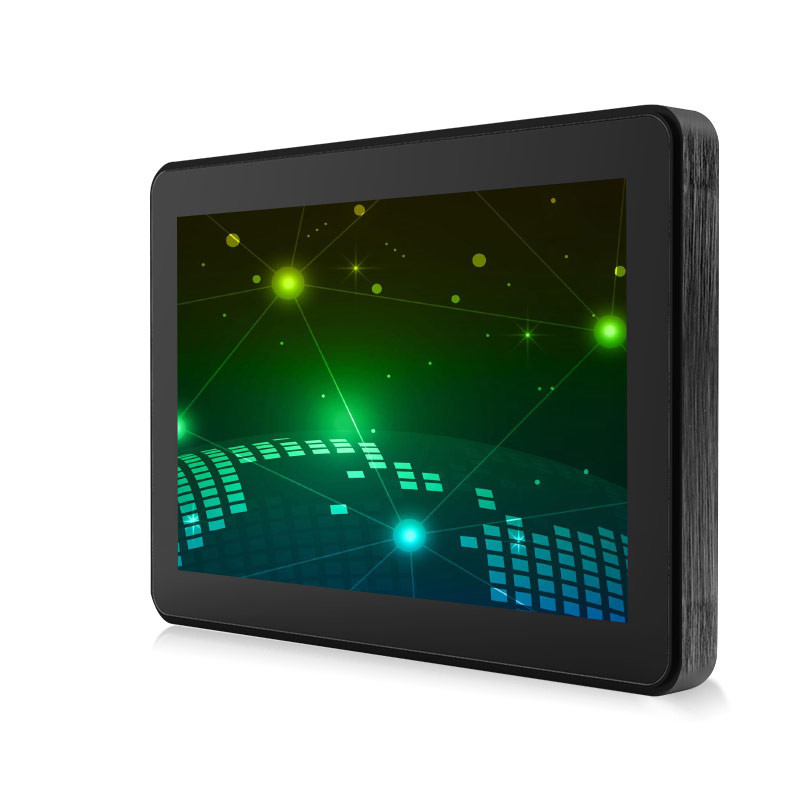

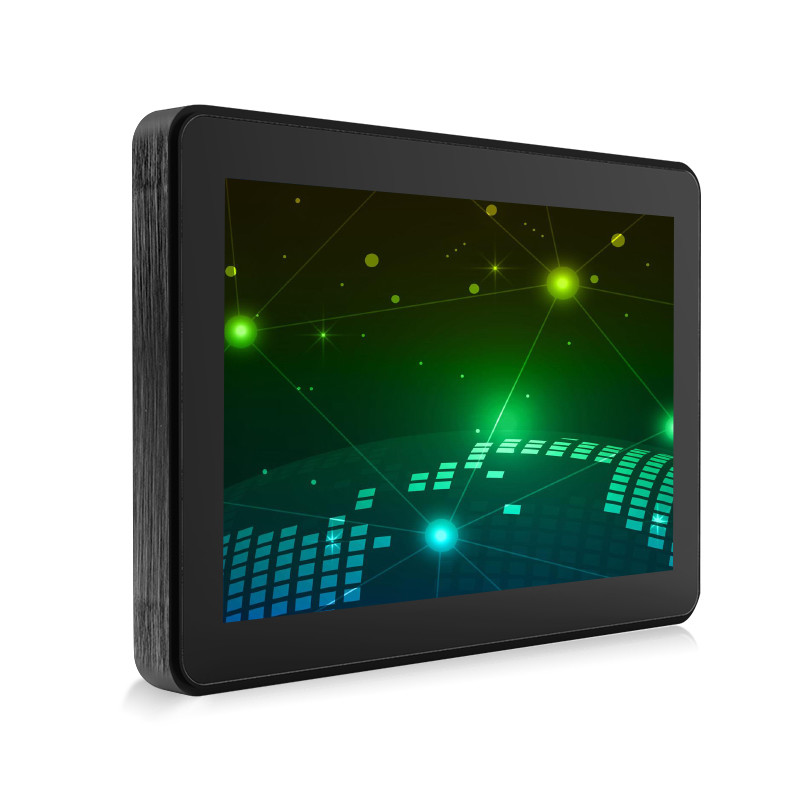

KeeTouch Ip65 Touch Screen Computer, 10.1" All In One Touch Computer 330nits


Industrial Touchscreen Computer Main Features


  • Integrated with KeeTouch PCAP touch panel for the ultimate in image quality

  • High-quality panel with high brightness, contrast ratio, and broad viewing angle

  • Zero bezel All-in-one touchscreen computer, unique and nicely appearance

  • Aluminum alloy shell, good mechanical properties, better performance of heat dissipation

  • Fast response time and sensitive touch




Industrial Touchscreen Computer Specifications



KTP-101M-002











Display

Screen

10.1 inch

Resolution

1280×800

According to the proportion

16:10

Brightness

255nit(Typ.)/204(Min.)

Contrast

800:1(Typ.)/600:1(Min.)

Response Time

30ms(Typ.)/35(Max.)

View angle

85/85/85/85(Typ.)/80/80/80/80(Min.)

Active Display Area

216.96*135.6mm








PC Configuration

CPU

Intel® Celeron® J1900 [1]

Graphics card

Integrated HD Graphic Card

Run

4GB RAM(8GB optional)

Stroge

128GB SSD(default)

Operation system

Windows7/Windows10

Expansion card slot

1*mini-PCIe Solt, support SSD, WIFI/3G/4G Module




Touch Screen

Touch Method

Capacitive Touch

Touch Surface Hardness

6H

Touch Screen Transparency

85%


I/O interface

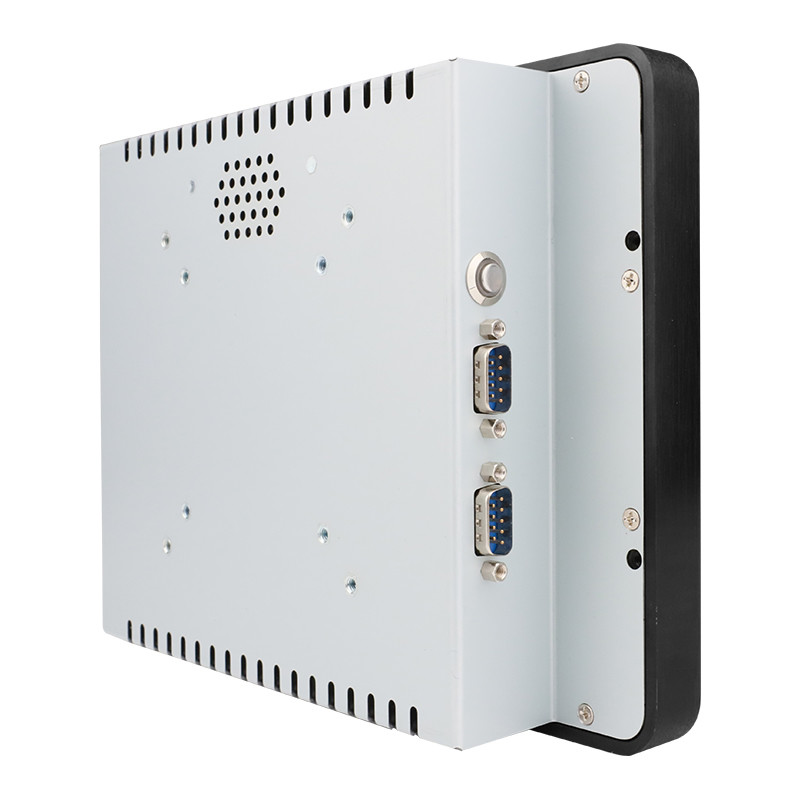

1-COM/485, 1-COM/232, 1-VGA, 4-USB, 1-Button connector, 1-Phoenix connector, 1-LAN


















Others

Enclosure Material

Metal

Waterproof Rating

IP65 (Front)

Wireless mouse

Support



Language

OSD operation in Chinese, British, German, Korean, Russian, French, Spanish, Arab and other multinational languages

Power Consumption

≤30W

Working Temperature

0 ~ 50 °C

Storage Temperature

-20~60°C

Stroage Humidity

20 ~80

Stroage Humidity

10 ~90

Size

261.6*173.6*36mm

Warranty

1 year

Certification

CCC, ETL, FCC, CE, CB, RoHS




Applications of KeeTouch's Touch Screen Computer


  • Manufacture and industry: Operation of the production process and single equipment in the industrial environment.

  • Medical: Access to treatment plans and patients' files, to the database of X-Rays, medical appointment scheduling, and service costs, besides monitors, and medical equipment.

  • E-commerce: Service and product payment, access to electronic point of sales, B2B, B2C, etc.

  • Travel service: Placing of trip orders, viewing the routes, virtual tours, teleconference to keep contact with tour operators, payment of tour operator service.



442



FAQ

1. Are you a manufacturer?
Yes, KeeTouch is one of the leading manufacturers of touch products since 2006.

2. What’s your MOQ for the industrial touchscreen computer?
Our minimum order quantity is 1pc only.

3. What is your warranty period for the industrial touchscreen computer?
Our regular warranty is 12 months for all the products, with a 2-3 years warranty (optional).

4. Can you produce the industrial touchscreen computer according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcome.

5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
